ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

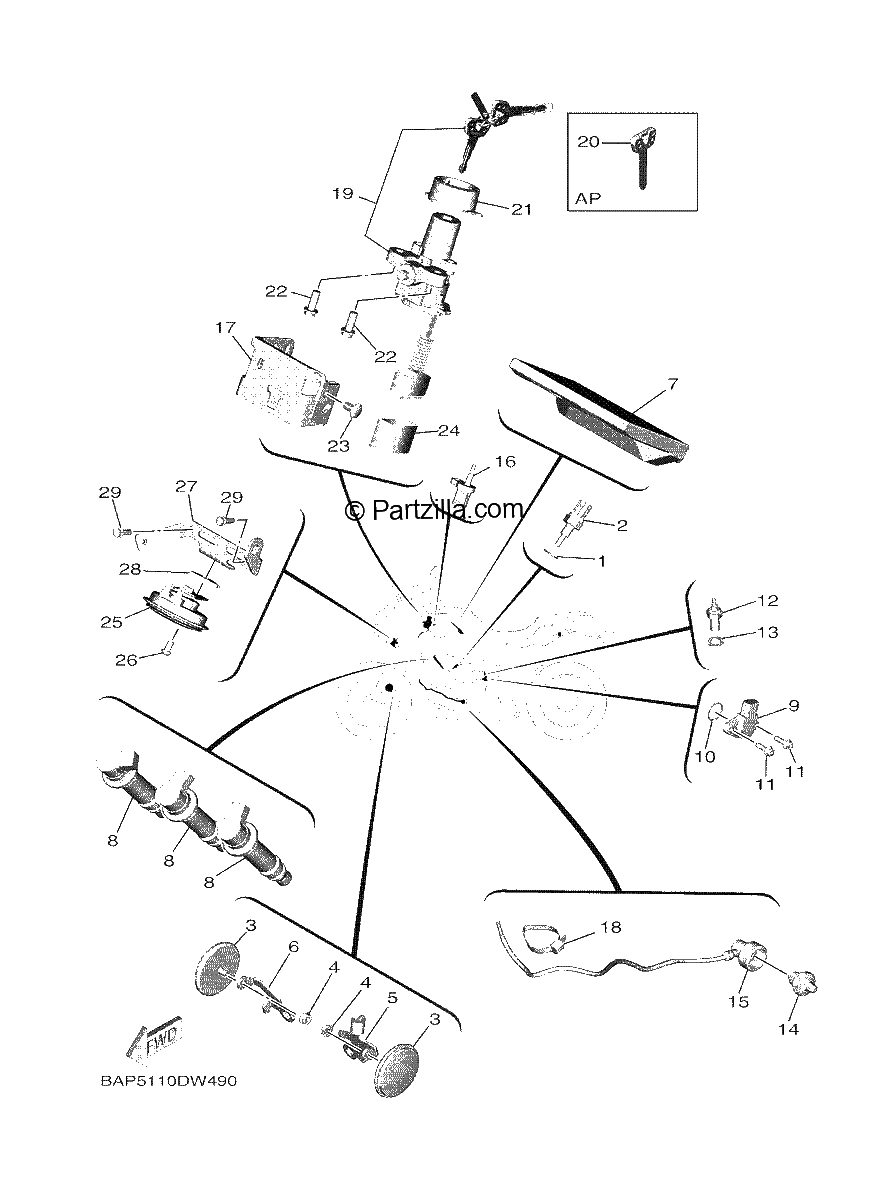

Diagrama de ELECTRICAL 2

Repuestos

#1
90430-10004-00
GASKET
$7.08¢3 538
1
#2
4P9-83591-00-00
THERMO UNIT
$34.40¢17 200
1
#3
4AG-85111-00-00
REFLECTOR, FRONT 1
$15.25¢7 625
1
#4
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#5
B7N-85112-00-00
BRACKET, REFLECTOR 1
$18.60¢9 300
1
#6
B7N-85122-00-00
BRACKET, REFLECTOR 2
$9.44¢4 719
1
#7
BAP-8591A-10-00
ENGINE CONTROL UNIT ASSY
$1167.49¢583 744
1
#8
1WS-82310-00-00
IGNITION COIL ASSY
$113.47¢56 738
1
#9
2CR-85899-10-00
SENSOR, GEAR POSITION
$130.10¢65 050
1
#10
93210-17008-00
O-RING
$2.16¢1 081
1
#11
90110-05067-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#12
3GB-82540-01-00
NEUTRAL SWITCH ASSY
$62.85¢31 425
1
#13
90430-10148-00
Gasket
$5.66¢2 831
1
#14
1WS-82504-00-00
OIL PRESSURE SWITC
$72.81¢36 406
1
#15
B3L-82509-11-00
WIRE, SUB LEAD
$15.26¢7 631
1
#16
5YU-85886-00-00
SENSOR, AIR TEMPERATURE
$35.84¢17 919
1
#17
B7N-82599-01-00
COVER, CONNECTOR
$4.09¢2 044
1
#18
90464-13073-00
Clamp
$3.30¢1 650
1
#19
BAP-82501-10-00
MAIN SWITCH STEERING LOCK
$155.10¢77 550
1
#20
4BH-82511-09-00
BLANK KEY | AP
$29.11¢14 556
1
#21
3P6-82568-00-00
COVER, MAIN SWITCH
$39.77¢19 888
1
#22
90105-081A1-00
BOLT, FLANGE
$8.21¢4 106
1
#23
90269-07015-00
RIVET
$1.23¢613
1
#24
B7N-82589-00-00
PROTECTER, WIRE HARNESS
$51.08¢25 538
1
#25
B7N-83371-00-00
HORN
$52.25¢26 125
1
#26
92017-06014-00
BOLT, BUTTON HEAD
$3.33¢1 663
1
#27
B5U-23377-00-00
BRACKET, HORN
$19.15¢9 575
1
#28
B5U-8331M-00-00
HOLDER
$5.36¢2 681
1
#29
95027-06016-00
Bolt, Flange
$7.48¢3 738
1
