TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

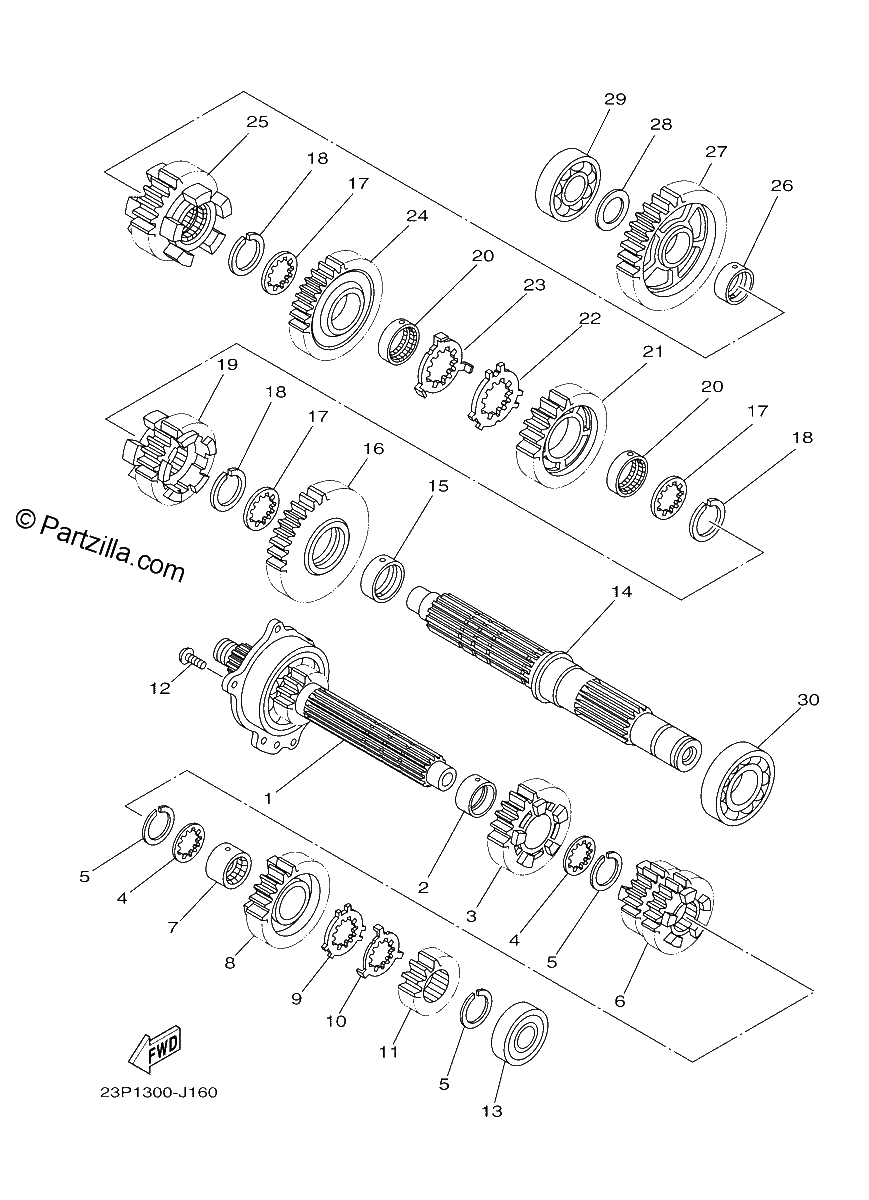

Diagrama de TRANSMISSION

Repuestos

#1
23P-17401-00-00
MAIN AXLE ASSY
$364.34¢182 171
1
#2
90387-28003-00
COLLAR
$26.20¢13 099
1
#3
23P-17151-00-00
GEAR, 5TH PINION (24T)
$105.02¢52 509
1
#4
90209-25011-00
WASHER
$7.91¢3 956
1
#5
93440-28184-00
CIRCLIP
$4.06¢2 030
1
#6
23P-17131-00-00
GEAR, 3RD PINION (21T/24T)
$186.00¢93 001
1
#7
90387-25023-00
COLLAR
$39.49¢19 746
1
#8
23P-17161-00-00
GEAR, 6TH PINION (28T)
$129.69¢64 843
1
#9
90214-25004-00
WASHER, CLAW
$7.93¢3 968
1
#10
90214-25003-00
WASHER, CLAW
$7.95¢3 973
1
#11
5S7-17121-00-00
GEAR, 2ND PINION (16T)
$40.65¢20 326
1
#12
90149-06082-00
SCREW
$6.75¢3 375
1
#13
93306-20464-00
BEARING
$38.77¢19 383
1
#14
23P-17402-00-00
DRIVE AXLE ASSY
$283.85¢141 927
1
#15
90387-31003-00
COLLAR
$19.72¢9 861
1
#16
23P-17221-00-00
GEAR, 2ND WHEEL (33T)
$129.03¢64 515
1
#17
90209-28008-00
WASHER
$6.82¢3 410
1
#18
93440-31187-00
CIRCLIP
$6.83¢3 415
1
#19
23P-17261-00-00
GEAR, 6TH WHEEL (26T)
$159.18¢79 591
1
#20
90387-28004-00
COLLAR
$31.05¢15 525
1
#21
23P-17241-00-00
GEAR, 4TH WHEEL (30T)
$110.73¢55 367
1
#22
90214-29002-00
WASHER, CLAW
$8.31¢4 157
1
#23
90214-28002-00
WASHER, CLAW
$8.05¢4 025
1
#24
23P-17231-00-00
GEAR, 3RD WHEEL (33T)
$128.25¢64 124
1
#25
23P-17251-00-00
GEAR, 5TH WHEEL (25T)
$149.20¢74 601
1
#26
90387-25008-00
COLLAR
$32.55¢16 273
1
#27
23P-17211-00-00
GEAR, 1ST WHEEL (36T)
$112.94¢56 471
1
#28
90201-224L4-00
WASHER, PLATE
$7.70¢3 852
1
#29
93306-37215-00
BEARING
$45.23¢22 615
1
#30
93306-28204-00
BEARING
$79.95¢39 974
1
