FUEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

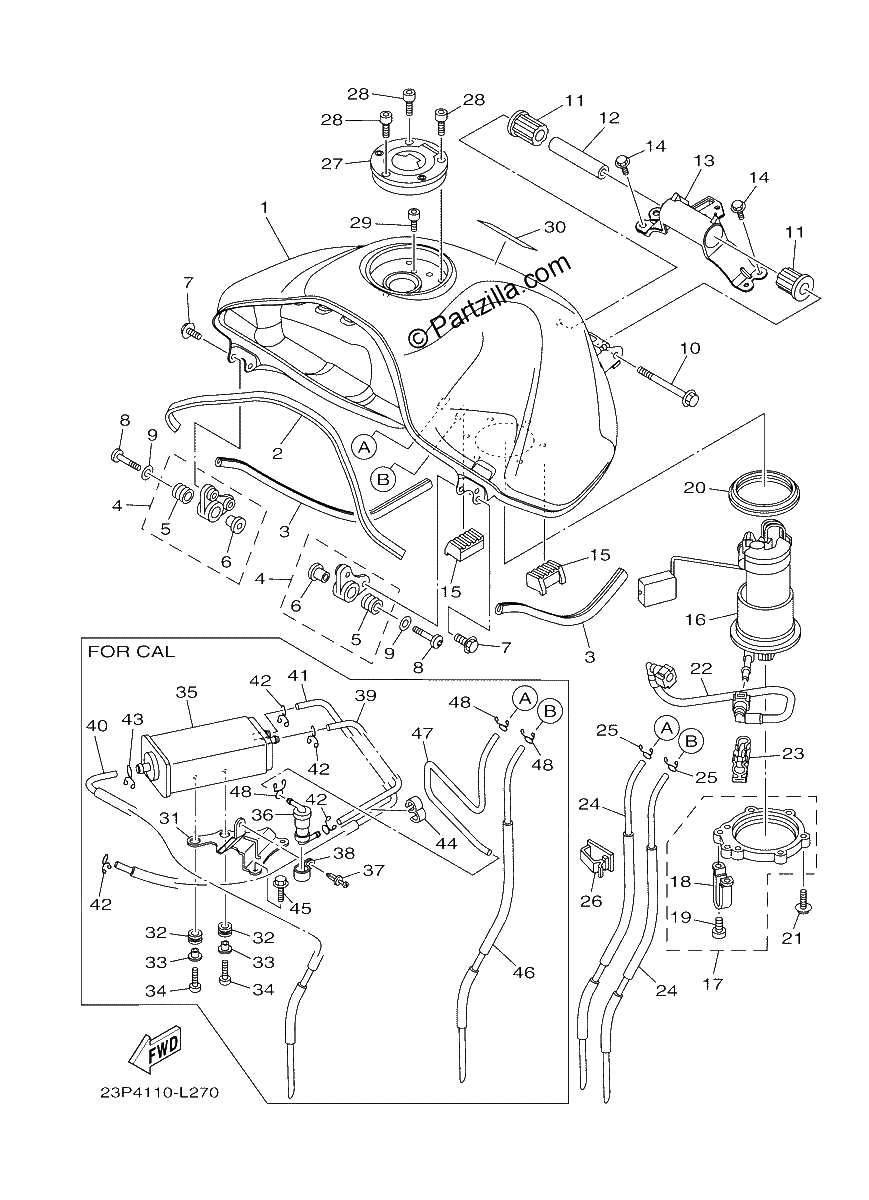

Diagrama de FUEL

Repuestos

#1
23P-24110-01-PA
FUEL TANK COMP.
$755.54¢377 769
1
#2
23P-24188-00-00
MOLD, FUEL TANK
$30.72¢15 358
1
#3
23P-24188-10-00
MOLD, FUEL TANK
$30.18¢15 088
1
#4
23P-24104-01-00
TANK BRACKET ASSY
$55.90¢27 951
1
#5
90480-18008-00
GROMMET
$3.48¢1 742
1
#6
90387-06266-00
COLLAR
$4.30¢2 151
1
#7
90119-06200-00
BOLT, WITH WASHER
$6.88¢3 439
1
#8
90149-06328-00
SCREW
$4.70¢2 352
1
#9
90201-06072-00
WASHER, PLATE
$7.01¢3 507
1
#10
95812-08110-00
BOLT, FLANGE
$6.42¢3 209
1
#11
23P-24183-00-00
DAMPER, LOCATING 3
$4.22¢2 110
1
#12
90387-12050-00
COLLAR
$9.37¢4 686
1
#13
23P-2413Y-00-00
BRACKET, TANK FITTING
$69.30¢34 649
1
#14
95802-06020-00
BOLT, FLANGE
$3.05¢1 524
1
#15
23P-24181-00-00
DAMPER, LOCATING 1
$10.02¢5 008
1
#16
23P-13907-02-00
FUEL PUMP COMP.
$738.29¢369 144
1
#17
23P-24105-00-00
TANK BRACKET ASSY 2
$50.43¢25 214
1
#18
2D1-24192-00-00
BRACKET, FUEL TANK 2
$12.45¢6 227
1
#19
98902-05008-00
SCREW, BIND
$1.35¢673
1
#20
19B-24486-01-00
O-RING
$40.92¢20 458
1
#21
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#22
23P-13971-01-00
PIPE, FUEL 1
$63.01¢31 504
1
#23
90464-16005-00
CLAMP
$11.73¢5 865
1
#24
23P-24318-00-00
PIPE, OVERFLOW | FOR CAL
$31.05¢15 525
1
#25
90467-09006-00
CLIP, SCISSOR | FOR CAL
$2.74¢1 368
1
#26
90464-13012-00
CLAMP
$5.30¢2 651
1
#27
39P-24602-00-00
CAP ASSY
$248.96¢124 482
1
#28
90110-05112-00
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
1
#29
91312-05010-00
BOLT
$5.39¢2 697
1
#30
29P-2816R-01-00
LABEL, WARNING GENERAL INFO.
$3.40¢1 702
1
