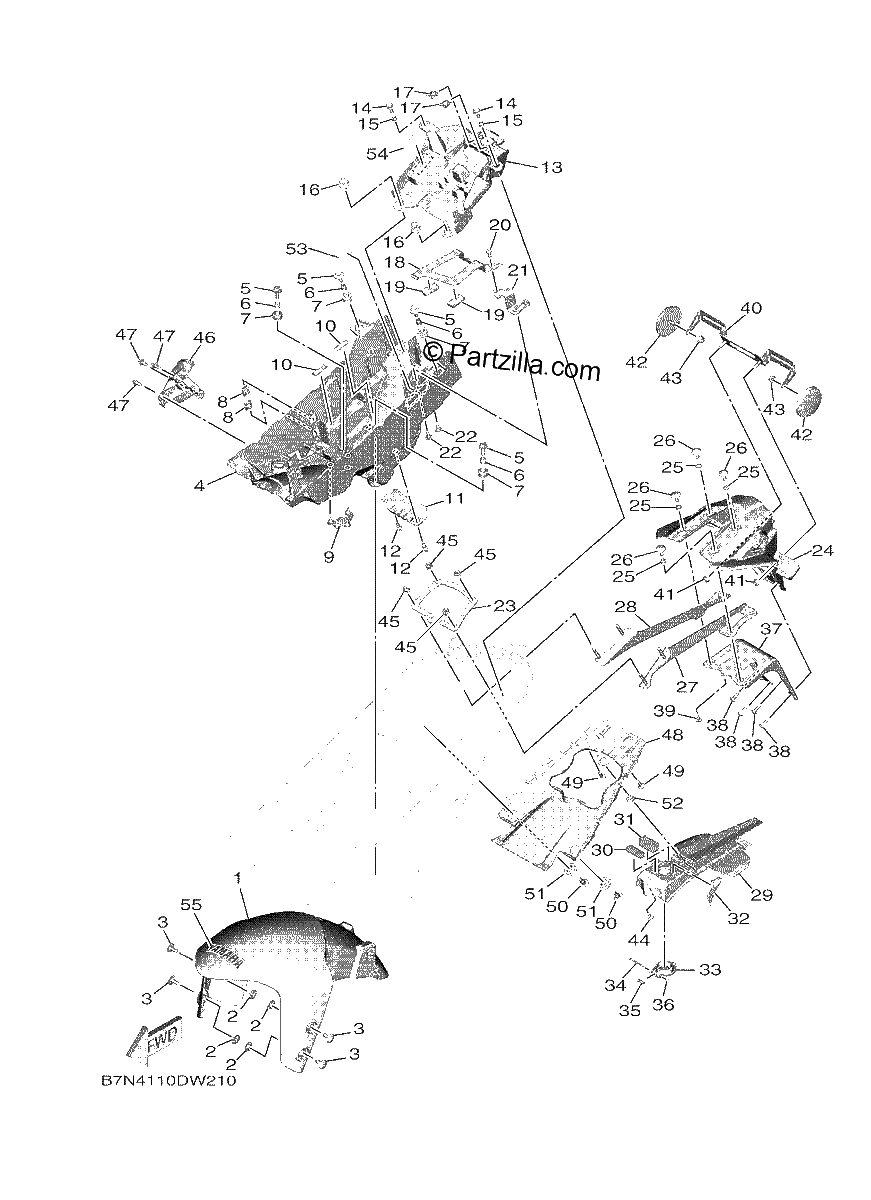

FENDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FENDER, FRONT (BLACK METALLIC X)
$138.79¢69 394
#2
COLLAR
$7.34¢3 669
#3
BOLT,HEX. SOCKET BUTTON
$1.07¢538
#4
BOX, BATTERY 1
$30.36¢15 181
#5
BOLT, WITH WASHER
$1.17¢587
#6
COLLAR
$12.52¢6 262
#7
GROMMET
$1.63¢813
#8
NUT, SPRING
$7.26¢3 631
#9
COVER
$7.99¢3 994
#10
DAMPER
$2.46¢1 231
#11
LID
$5.55¢2 775
#12
RIVET
$2.23¢1 113
#13
BOX
$11.76¢5 881
#14
BOLT, FLANGE DEEP RECESS
$0.47¢238
#15
COLLAR
$9.45¢4 725
#16
RIVET,SPEC'L SHAPE
$7.13¢3 563
#17
NUT, SPRING
$7.26¢3 631
#18
BAND, BATTERY
$31.59¢15 794
#19
DAMPER, PLATE
$1.02¢513
#20
BOLT, BUTTON HEAD
$2.97¢1 487
#21
BRACKET, REAR STAY
$15.69¢7 844
#22
BOLT,HEX. SOCKET BUTTON
$1.89¢944
#23
BRACKET, REAR FENDER
$14.78¢7 388
#24
GUARD, MUD
$21.94¢10 969
#25
COLLAR
$6.45¢3 225
#26
BOLT,HEX. SOCKET BUTTON
$1.80¢900
#27
STAY 1
$55.48¢27 738
#28
STAY 2
$58.71¢29 356
#29
COVER, REAR FENDER 2
$14.00¢7 000
#30
DAMPER
$3.73¢1 863
#31
DAMPER
$7.86¢3 931
#32
BAND
$4.51¢2 256
#33
CAP, ROTOR
$4.96¢2 481
#34
PIN
$5.38¢2 688
#35
SPRING, TORSION
$2.23¢1 113
#36
CIRCLIP
$7.95¢3 975
#37
STAY, PLATE
$43.69¢21 844
#38
SCREW, ROUND TAPPING
$7.46¢3 731
#39
RIVET
$8.34¢4 169
#40
BRACKET, LICENSE
$34.89¢17 444
#41
NUT, U
$2.86¢1 431
#42
REFLECTOR, REAR 1
$30.67¢15 337
#43
NUT, FLANGE
$7.35¢3 675
#44
RIVET
$8.34¢4 169
#45
NUT, SELF-LOCKING
$2.80¢1 400
#46
COVER, REAR FENDER 1
$7.71¢3 856
#47
RIVET
$6.45¢3 225
#48
COVER, REAR FENDER
$11.23¢5 613
#49
BOLT,HEX. SOCKET BUT
$5.91¢2 956
#50
BOLT
$2.04¢1 019
#51
Grommet
$5.72¢2 863
#52
GROMMET
$7.48¢3 738
#53
LABEL, CAUTION
$4.94¢2 469
#54
LABEL, CAUTION
$5.32¢2 662
#55
EMBLEM, YAMAHA | UR FOR DPBMC
$7.08¢3 538
