SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

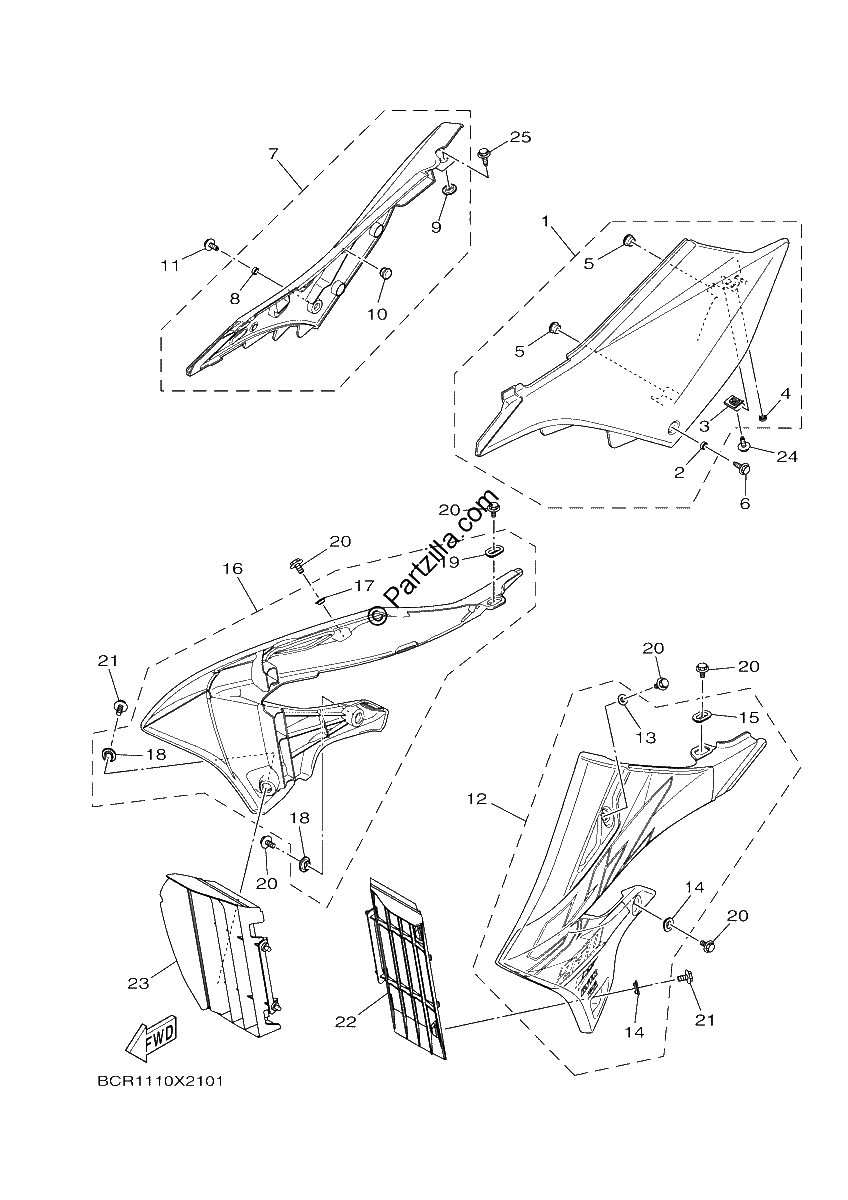

Diagrama de SIDE COVER

Repuestos

#1
BCR-21710-00-00
SIDE COVER ASSY 1
$31.31¢15 657
1
#2
90387-07015-00
Collar
$1.09¢546
1
#3
90183-060A7-00
NUT, SPRING
$7.11¢3 553
1
#4
90387-06069-00
COLLAR
$7.28¢3 640
1
#5
90480-10068-00
GROMMET (replaces 90480-08608-00)
$7.42¢3 709
1
#6
90105-06178-00
BOLT, FLANGE
$4.45¢2 225
1
#7
BCR-21720-00-00
SIDE COVER ASSY 2
$30.44¢15 220
1
#8
90387-07015-00
Collar
$1.09¢546
1
#9
17D-14449-00-00
Collar
$7.38¢3 691
1
#10
90480-10068-00
GROMMET (replaces 90480-08608-00)
$7.42¢3 709
1
#11
90105-06178-00
BOLT, FLANGE
$4.45¢2 225
1
#12
BCR-217R0-G0-00
SIDE COVER INSERT ASSY. 3 (WG)
$212.74¢106 369
1
#12
BCR-21730-00-00
SIDE COVER ASSY 3 (WOG)
$37.82¢18 912
1
#13
90387-06009-00
COLLAR
$8.66¢4 330
1
#14
5TA-21749-00-00
Collar
$10.57¢5 284
1
#15
1SL-21748-00-00
Collar
$10.38¢5 192
1
#16
BCR-21740-00-00
SIDE COVER ASSY 4 (WOG)
$30.44¢15 220
1
#16
BCR-217S0-G0-00
SIDE COVER INSERT ASSY. 4 (WG)
$212.74¢106 369
1
#17
90387-06009-00
COLLAR
$8.66¢4 330
1
#18
5TA-21749-00-00
Collar
$10.57¢5 284
1
#19
1SL-21748-00-00
Collar
$10.38¢5 192
1
#20
90105-06064-00
Bolt, Flange
$2.92¢1 461
1
#21
90119-06166-00
BOLT, WITH WASHER
$5.27¢2 633
1
#22
BCR-2172A-00-00
PANEL 1
$20.87¢10 436
1
#23
BCR-2172F-00-00
PANEL 2
$20.87¢10 436
1
#24
90119-06322-00
BOLT, WITH WASHER
$3.27¢1 633
1
#25
90119-06322-00
BOLT, WITH WASHER
$3.27¢1 633
1
