ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

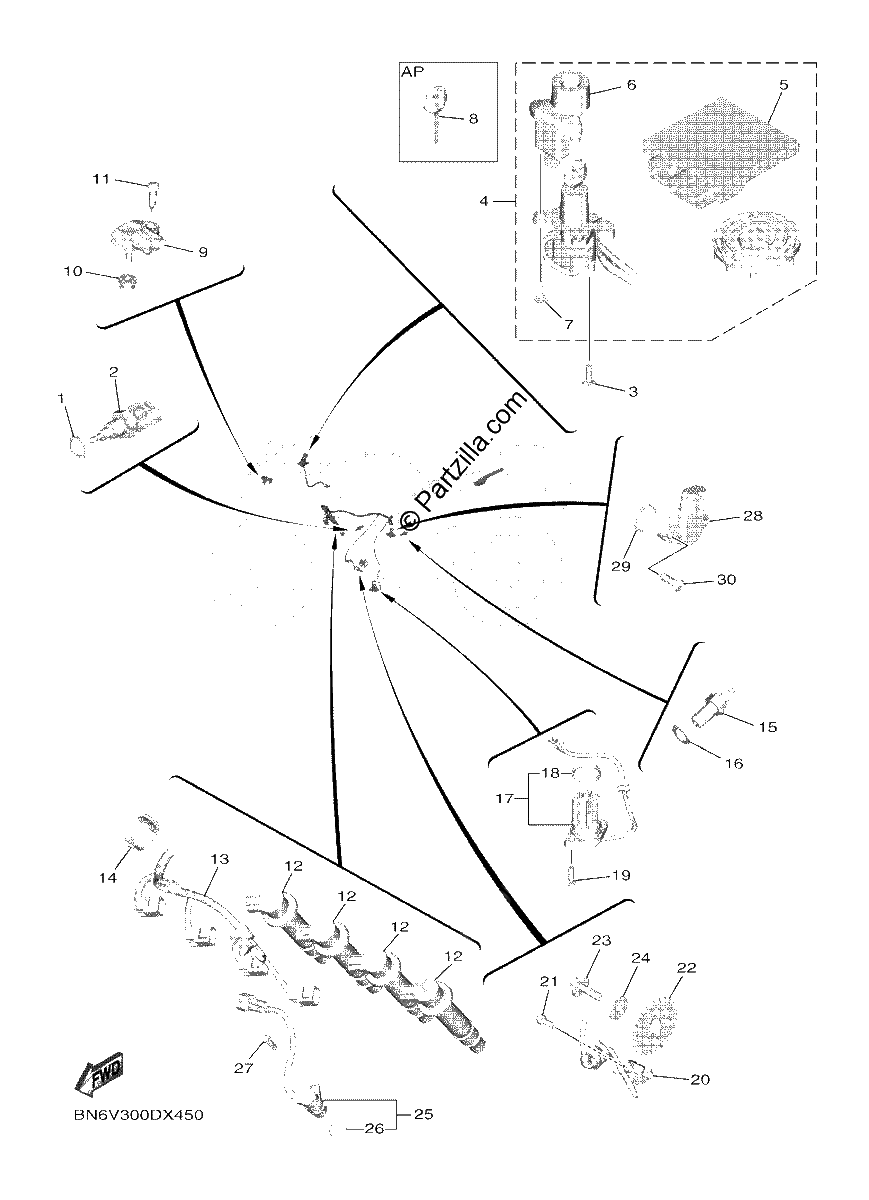

Diagrama de ELECTRICAL 1

Repuestos

#1
90201-12790-00
WASHER, PLATE
$7.51¢3 755
1
#2
5YP-85790-00-00
THERMOSENSOR ASSY
$61.77¢30 883
1
#3
90109-08195-00
bolt
$6.76¢3 381
1
#4
BN6-W8250-40-00
MAIN SW. IMMOBILIZER KIT
$2872.69¢1 436 344
1
#5
BN6-8591A-01-00
ENGINE CONTROL UNIT ASSY
$2147.04¢1 073 519
1
#6
BN6-8255P-30-00
IMMOBILIZER UNIT COMP
$409.33¢204 665
1
#7
5SL-82113-01-00
SCREW
$2.13¢1 064
1
#8
5SL-82511-08-00
BLANK KEY *{AP}*
$79.25¢39 623
1
#9
1WS-82380-00-00
Sensor, Pressure
$187.39¢93 696
1
#10
90480-08006-00
Grommet
$3.44¢1 719
1
#11
97702-50120-00
SCREW, TAPPING
$2.97¢1 483
1
#12
BN6-82310-00-00
IGNITION COIL ASSY
$117.45¢58 725
1
#13
BN6-82309-00-00
WIRE, SUB LEAD
$120.15¢60 076
1
#14
90464-28003-00
CLAMP
$2.98¢1 489
1
#15
3GB-82540-01-00
NEUTRAL SWITCH ASSY
$57.82¢28 911
1
#16
90430-10148-00
Gasket
$5.21¢2 605
1
#17
5VX-85720-01-00
Oil Level Gauge Assy
$234.23¢117 116
1
#18
5VY-8A8E0-00-00
O-RING
$11.99¢5 997
1
#19
95022-06016-00
BOLT, FLANGE
$3.65¢1 823
1
#20
BN6-81670-00-00
PICK-UP ASSY
$143.12¢71 559
1
#21
90110-06168-00
BOLT, HEXAGON SOCKET HEAD
$5.20¢2 599
1
#22
2C0-81673-01-00
Rotor
$40.55¢20 274
1
#23
90105-08113-00
Bolt, Flange
$5.27¢2 633
1
#24
90201-08054-00
WASHER, plate
$6.88¢3 439
1
#25
5VY-85896-02-00
SENSOR, CAM POSITION (replaces 5VY-85896-01-00)
$139.21¢69 604
1
#26
4D9-81168-00-00
O-RING
$4.74¢2 369
1
#27
90110-06175-00
BOLT, HEXAGON SOCKET HEAD
$2.24¢1 121
1
#28
2CR-85899-10-00
SENSOR, GEAR POSITION
$119.69¢59 846
1
#29
93210-17008-00
O-RING
$1.99¢995
1
#30
90149-05037-00
SCREW
$1.64¢822
1
