FUEL TANK 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

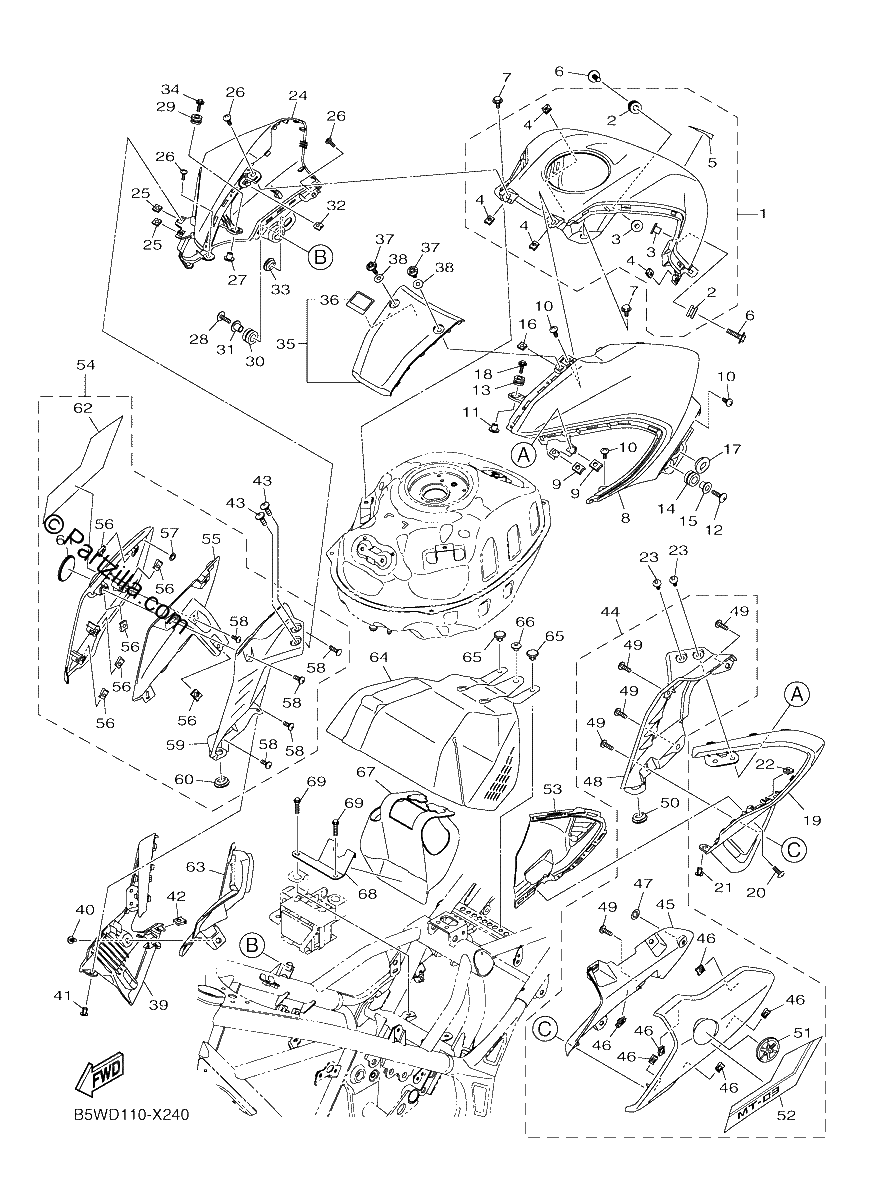

Diagrama de FUEL TANK 2

Repuestos

#1
B9T-XF41D-00-P3
TANK SIDE COVER 1
$47.27¢23 638
1
#2
90480-12808-00
GROMMET
$2.95¢1 475
1
#3
90387-06899-00
COLLAR
$2.94¢1 469
1
#4
90183-05807-00
NUT, SPRING
$1.25¢625
1
#5
B04-F4254-C0-00
.. GRAPHIC, FUEL TANK 7
$1.51¢756
1
#6
90119-06309-00
BOLT, WITH WASHER
$2.06¢1 031
1
#7
90109-068B2-00
BOLT (B9B1)
$0.49¢244
1
#8
B9T-F4129-00-P4
COVER, SIDE 1
$30.25¢15 125
1
#9
90183-05807-00
NUT, SPRING
$1.25¢625
1
#10
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#11
90387-06899-00
COLLAR
$2.94¢1 469
1
#12
90110-06087-00
BOLT, HEXAGON SOCKET HEAD
$4.49¢2 244
1
#13
90480-12808-00
GROMMET
$2.95¢1 475
1
#14
90480-17007-00
GROMMET
$7.52¢3 762
1
#15
90387-10107-00
COLLAR
$5.41¢2 706
1
#16
90183-05076-00
NUT, SPRING
$2.82¢1 412
1
#17
90480-01559-00
Grommet
$5.72¢2 863
1
#18
90119-05020-00
BOLT, WITH WASHER
$6.38¢3 188
1
#19
B9T-F838N-00-00
DUCT 1
$12.75¢6 375
1
#20
90160-05009-00
SCREW, ROUND TAPPI
$0.51¢256
1
#21
90269-06816-00
RIVET
$1.71¢856
1
#22
90183-05807-00
NUT, SPRING
$1.25¢625
1
#23
90160-05009-00
SCREW, ROUND TAPPI
$0.51¢256
1
#24
B9T-F4139-00-P4
COVER, SIDE 2
$33.09¢16 544
1
#25
90183-05807-00
NUT, SPRING
$1.25¢625
1
#26
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#27
90387-06899-00
COLLAR
$2.94¢1 469
1
#28
90110-06087-00
BOLT, HEXAGON SOCKET HEAD
$4.49¢2 244
1
#29
90480-12808-00
GROMMET
$2.95¢1 475
1
#30
90480-17007-00
GROMMET
$7.52¢3 762
1
#31
90387-10107-00
COLLAR
$5.41¢2 706
1
#32
90183-05076-00
NUT, SPRING
$2.82¢1 412
1
#33
90480-01559-00
Grommet
$5.72¢2 863
1
#34
90119-05020-00
BOLT, WITH WASHER
$6.38¢3 188
1
#35
B9T-XF17D-A0-P4
COVER, TOP
$25.88¢12 938
1
#36
1TP-2118K-A2-00
. LABEL, CAUTION
$7.16¢3 581
1
#37
90111-05056-00
BOLT,HEX. SOCKET B
$2.60¢1 300
1
#38
90202-05180-00
WASHER, PLATE
$7.66¢3 831
1
#39
B9T-F838R-00-00
DUCT 2
$12.75¢6 375
1
#40
90160-05009-00
SCREW, ROUND TAPPI
$0.51¢256
1
#41
90269-06816-00
RIVET
$1.71¢856
1
#42
90183-05807-00
NUT, SPRING
$1.25¢625
1
#43
90160-05009-00
SCREW, ROUND TAPPI
$0.51¢256
1
#44
B9T-XF137-00-P5
SCOOP & GUIDE AIR 1
$66.19¢33 094
1
#45
B9T-F836K-00-00
PANEL, INNER 1
$12.24¢6 119
1
#46
90183-05807-00
NUT, SPRING
$1.25¢625
1
#47
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#48
B9T-F137K-00-00
GUIDE, AIR 3
$12.24¢6 119
1
#49
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#50
90480-01559-00
Grommet
$5.72¢2 863
1
#51
1WD-F413B-01-00
TUNING FORK MARK, 3D
$10.56¢5 281
1
#52
B6W-F8391-50-00
.. GRAPHIC 1
$9.31¢4 656
1
#53
B9T-F837N-00-00
GRILL, AIR INTAKE
$9.91¢4 956
1
#54
B9T-XF13A-00-P5
SCOOP & GUIDE AIR 2
$71.86¢35 931
1
#55
B9T-F836L-00-00
PANEL, INNER 2
$12.24¢6 119
1
#56
90183-05807-00
NUT, SPRING
$1.25¢625
1
#57
90183-05M02-00
NUT, SPRING
$0.50¢250
1
#58
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.71¢856
1
#59
B9T-F137L-00-00
GUIDE, AIR 4
$12.24¢6 119
1
#60
90480-01559-00
Grommet
$5.72¢2 863
1
#61
1WD-F413B-01-00
TUNING FORK MARK, 3D
$10.56¢5 281
1
#62
B6W-F8392-50-00
.. GRAPHIC 2
$10.77¢5 387
1
#63
B9T-F837R-00-00
GRILL, AIR INTAKE
$10.77¢5 387
1
#64
B04-E449E-00-00
COVER, AIR CLEANER
$31.88¢15 938
1
#65
90269-07076-00
RIVET,SPEC'L SHAPE
$7.13¢3 563
1
#66
90269-09001-00
RIVET
$1.95¢975
1
#67
B04-F1642-00-00
GUARD, FLAP
No Disponible
1
#68
B04-F1533-00-00
STAY, FLAP
$7.50¢3 750
1
#69
95022-06025-00
BOLT, FLANGE
$1.75¢875
1
