OIL COOLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

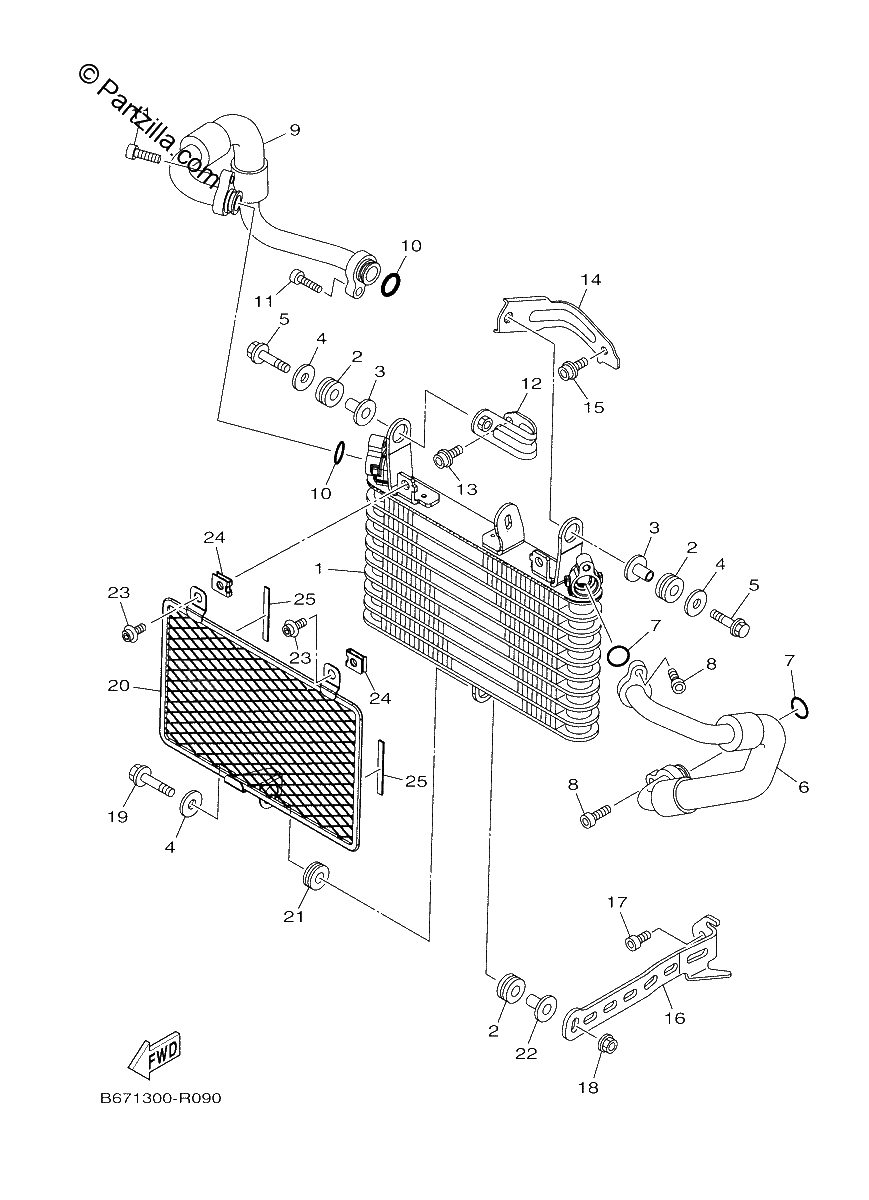

Diagrama de OIL COOLER

Repuestos

#1
B67-13470-00-00
OIL COOLER ASSY
$382.08¢191 038
1
#2
90480-15363-00
GROMMET
$7.34¢3 669
1
#3
90387-0614M-00
COLLAR
$9.83¢4 913
1
#4
90201-06071-00
WASHER, PLATE
$5.30¢2 650
1
#5
90110-06346-00
BOLT, HEXAGON SOCKET HEAD
$7.46¢3 731
1
#6
2CR-13464-00-00
HOSE, OIL 1
$226.02¢113 012
1
#7
93210-13657-00
O-RING
$6.99¢3 494
1
#8
90110-06211-00
BOLT, HEXAGON SOCKET HEAD
$2.44¢1 219
1
#9
2CR-13465-00-00
HOSE, OIL 2
$258.39¢129 194
1
#10
93210-13657-00
O-RING
$6.99¢3 494
1
#11
90110-06211-00
BOLT, HEXAGON SOCKET HEAD
$2.44¢1 219
1
#12
2CR-13151-00-00
STAY
$16.40¢8 200
1
#13
90110-06341-00
BOLT, HEXAGON SOCKET HEAD
$3.16¢1 581
1
#14
2CR-13152-00-00
STAY 2
$16.40¢8 200
1
#15
90110-06341-00
BOLT, HEXAGON SOCKET HEAD
$3.16¢1 581
1
#16
B5Y-13782-00-00
STAY
$24.63¢12 313
1
#17
90110-06341-00
BOLT, HEXAGON SOCKET HEAD
$3.16¢1 581
1
#18
95607-06200-00
NUT, U FLANGE
$12.61¢6 306
1
#19
95827-06040-00
BOLT, FLANGE
$5.41¢2 706
1
#20
B67-13463-00-00
COVER, OIL COOLER
$80.76¢40 381
1
#21
27D-11328-00-00
GROMMET, ANODE
$5.40¢2 700
1
#22
90387-06098-00
COLLAR
$8.39¢4 194
1
#23
90110-06400-00
BOLT, HEXAGON SOCKET HEAD (replaces 90110-06399-00)
$1.86¢931
1
#24
5SL-12671-00-00
NUT 1
$6.19¢3 094
1
#25
2CR-13381-00-00
DAMPER
$2.82¢1 412
1
