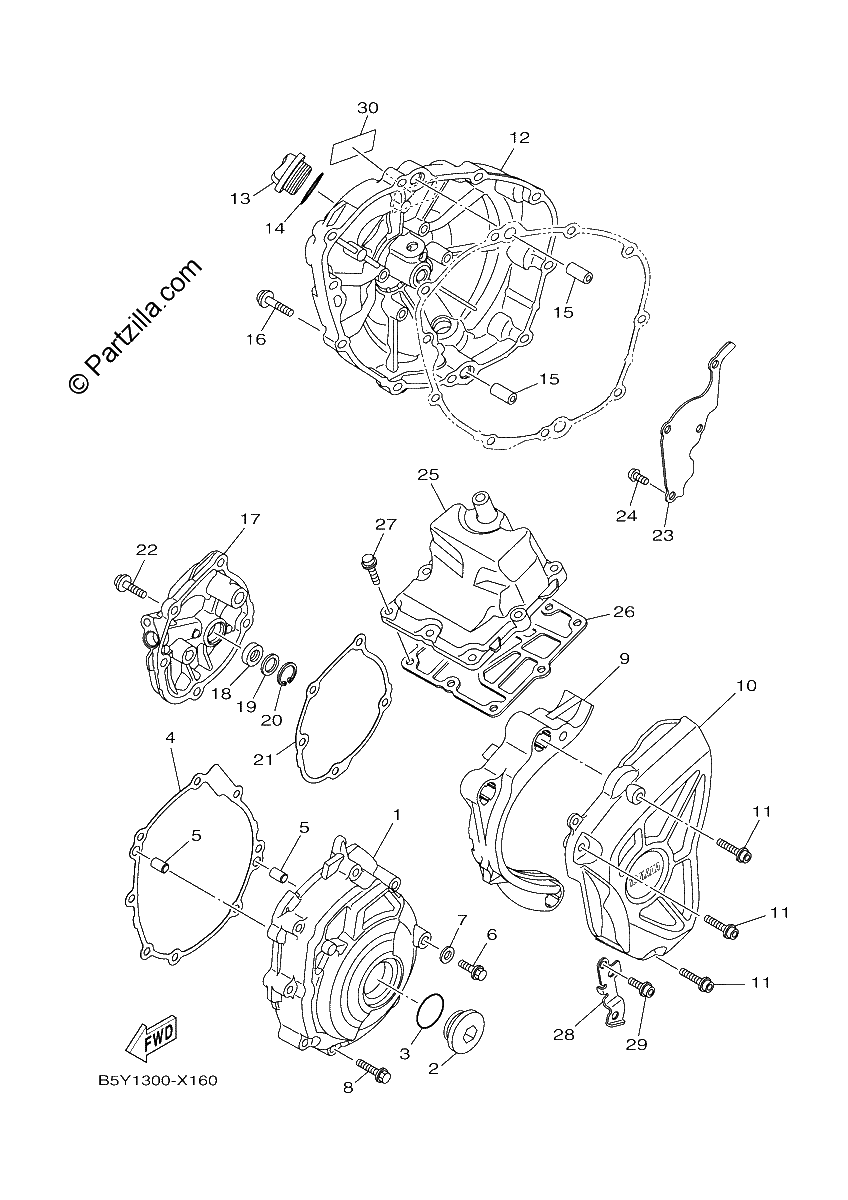

CRANKCASE COVER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER, CRANKCASE 1 *{MDNM9}*
$149.41¢74 706
#2
PLUG, STRAIGHT SCREW
$35.38¢17 688
#3
O-Ring
$6.88¢3 438
#4
GASKET, CRANKCASE COVER 1
$16.07¢8 038
#5
PIN, DOWEL
$6.25¢3 125
#6
BOLT, BUTTON HEAD
$7.94¢3 969
#7
GASKET
$3.67¢1 838
#8
BOLT, HEXAGON SOCKET HEAD
$2.54¢1 269
#9
GUIDE, INLET
$49.07¢24 537
#10
COVER, CHAIN CASE
$26.39¢13 194
#11
BOLT, HEXAGON SOCKET (replaces 90110-06390-00)
$2.95¢1 475
#12
COVER, CRANKCASE 2 *{MDNM9}*
$177.10¢88 550
#13
PLUG, OIL
$12.52¢6 262
#14
O-RING
$7.63¢3 813
#15
PIN, DOWEL
$4.13¢2 063
#16
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 919
#17
COVER, OIL PUMP *{MDNM9}*
$117.26¢58 631
#18
OIL SEAL
$9.14¢4 569
#19
WASHER, PLATE (replaces 90201-128C9-00)
$7.48¢3 738
#20
CIRCLIP
$1.06¢531
#21
GASKET, OIL PUMP COVER 1
$11.90¢5 950
#22
BOLT, HEXAGON SOCKET HEAD
$2.97¢1 487
#23
PLATE, BREATHER
$3.75¢1 875
#24
SCREW
$7.56¢3 781
#25
COVER
$119.34¢59 669
#26
GASKET, CRANKCASE COVER 3
$11.06¢5 531
#27
BOLT, HEXAGON SOCKET (replaces 90110-06390-00)
$2.95¢1 475
#28
HOLDER
$9.56¢4 781
#29
BOLT, HEXAGON SOCKET HEAD
$3.16¢1 581
#30
OIL, LABEL
$4.95¢2 475
