SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

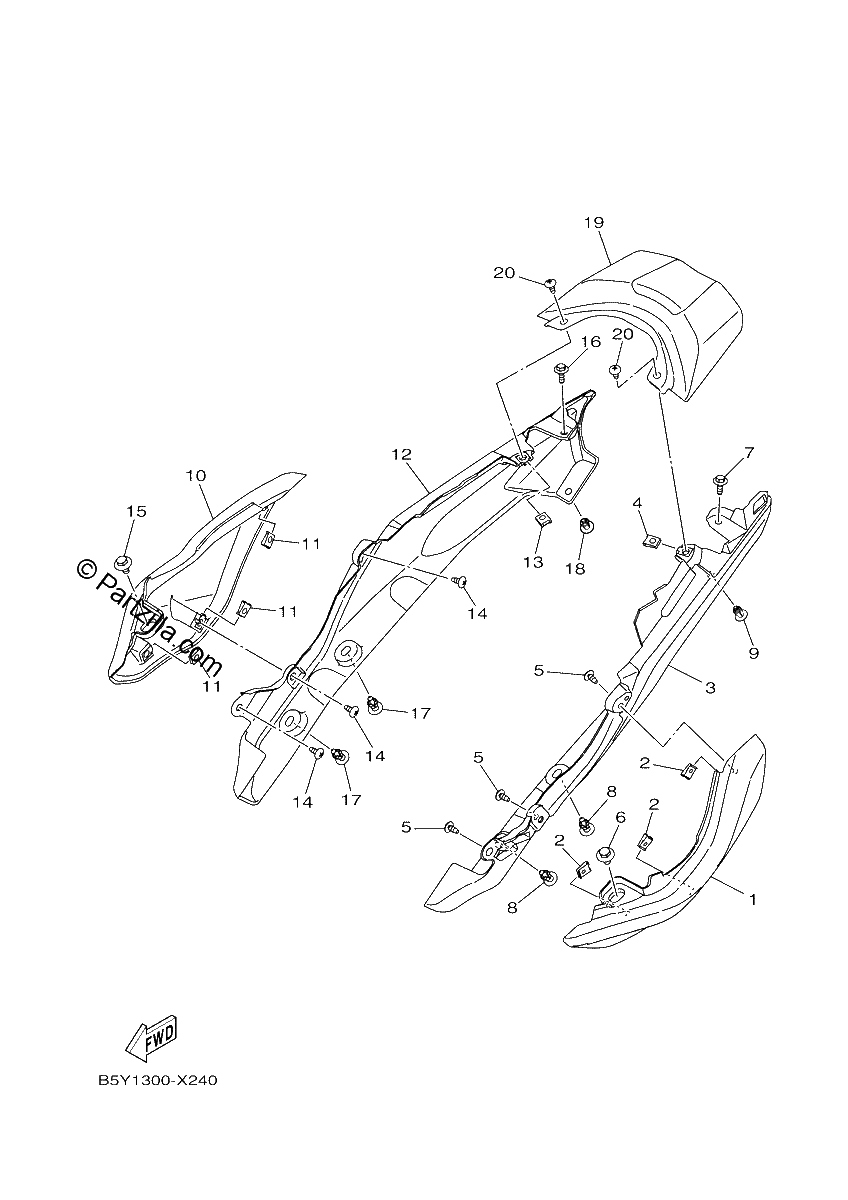

Diagrama de SIDE COVER

Repuestos

#1
B5Y-21711-00-33
COVER, SIDE 1 (YAMAHA BLACK) (PASTEL DARK GRAY) *{UR YB FOR PGD}*
$67.20¢33 600
1
#2
90183-05042-00
NUT, SPRING
$1.25¢625
1
#3
B5Y-21731-00-00
COVER, SIDE 3
$31.35¢15 675
1
#4
90183-05042-00
NUT, SPRING
$1.25¢625
1
#5
97702-50012-00
SCREW, TAPPING
$3.85¢1 925
1
#6
90109-06202-00
BOLT
$3.24¢1 619
1
#7
90119-05193-00
BOLT,WITH WASHER
$1.46¢731
1
#8
90269-07007-00
RIVET
$4.00¢2 000
1
#9
90269-06019-00
RIVET
$3.46¢1 731
1
#10
B5Y-21721-00-33
COVER, SIDE 2 (YAMAHA BLACK) (PASTEL DARK GRAY) *{UR YB FOR PGD}*
$73.96¢36 981
1
#11
90183-05042-00
NUT, SPRING
$1.25¢625
1
#12
B5Y-21741-00-00
COVER, SIDE 4
$43.22¢21 612
1
#13
90183-05042-00
NUT, SPRING
$1.25¢625
1
#14
97702-50012-00
SCREW, TAPPING
$3.85¢1 925
1
#15
90109-06202-00
BOLT
$3.24¢1 619
1
#16
90119-05193-00
BOLT,WITH WASHER
$1.46¢731
1
#17
90269-07007-00
RIVET
$4.00¢2 000
1
#18
90269-06019-00
RIVET
$3.46¢1 731
1
#19
B5Y-2171E-00-00
COVER, SIDE 5
$17.49¢8 744
1
#20
97702-50012-00
SCREW, TAPPING
$3.85¢1 925
1
