ELECTRICAL 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

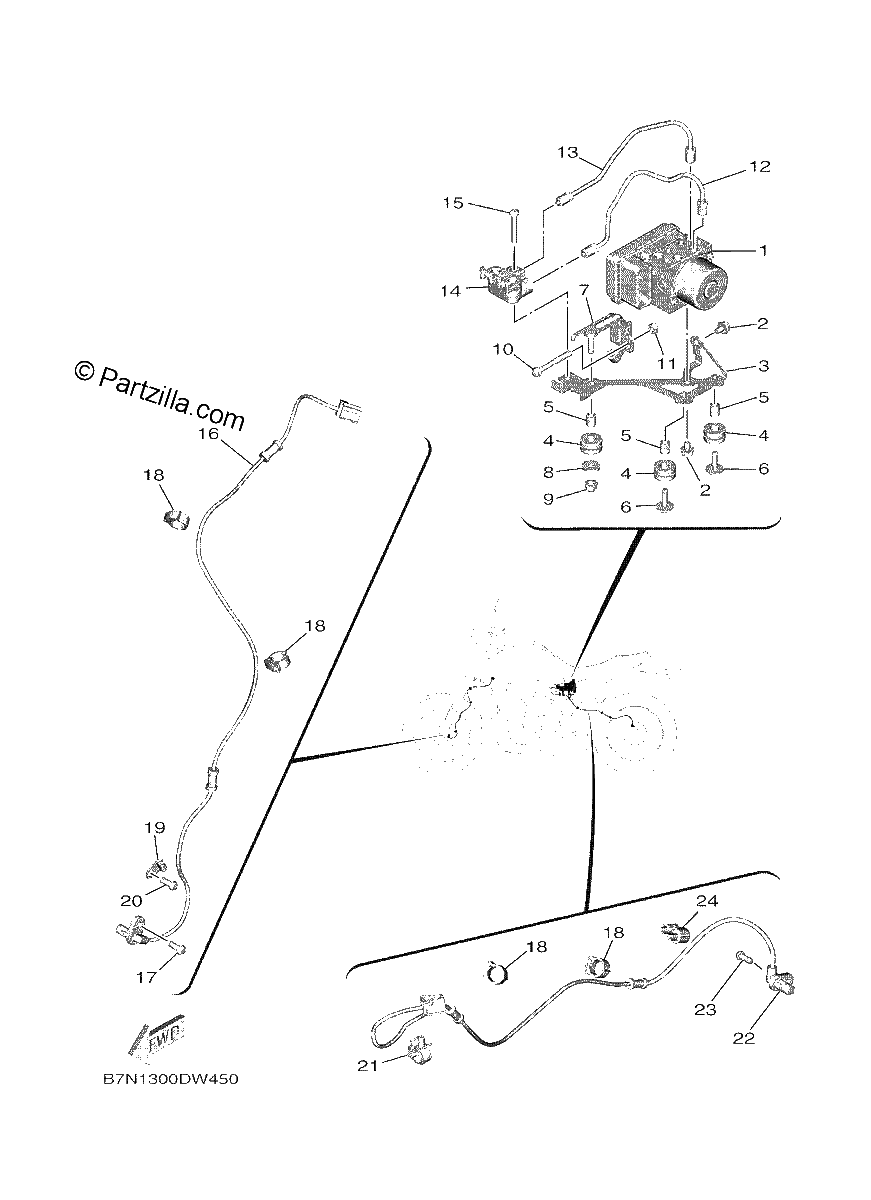

Diagrama de ELECTRICAL 3

Repuestos

#1
B7N-85930-09-00
HYDRAULIC UNIT ASSY
$1004.99¢502 494
1
#2
95822-06008-00
BOLT, FLANGE
$5.76¢2 881
1
#3
B7N-85991-00-00
BRACKET, UNIT
$42.24¢21 119
1
#4
90480-14229-00
GROMMET
$7.34¢3 669
1
#5
90387-065L7-00
COLLAR
$8.24¢4 119
1
#6
90119-06267-00
BOLT, WITH WASHER
$7.34¢3 669
1
#7
B7N-85542-00-00
BRACKET
$17.18¢8 588
1
#8
90201-06778-00
WASHER, PLATE
$4.38¢2 188
1
#9
90176-06065-00
NUT, CROWN
$8.24¢4 119
1
#10
95027-06045-00
BOLT, SMALL FLANGE
$2.95¢1 475
1
#11
95607-06100-00
NUT, U
$2.86¢1 431
1
#12
B7N-25871-00-00
PIPE, BRAKE
$15.29¢7 644
1
#13
B7N-25882-00-00
PIPE, BRAKE 2
$14.81¢7 406
1
#14
B7N-25885-00-00
JOINT
$66.44¢33 219
1
#15
92012-06035-00
BOLT, BUTTON HEAD
$2.05¢1 025
1
#16
B7N-85970-00-00
WHEEL SENSOR ASSY, FRONT
$143.61¢71 806
1
#17
92017-06014-00
BOLT, BUTTON HEAD
$3.33¢1 663
1
#18
90464-16003-00
CLAMP
$7.46¢3 731
1
#19
2CR-23317-00-00
HOLDER, CABLE
$10.74¢5 369
1
#20
92017-06014-00
BOLT, BUTTON HEAD
$3.33¢1 663
1
#21
90464-14013-00
CLAMP
$3.50¢1 750
1
#22
B7N-85980-00-00
WHEEL SENSOR ASSY, REAR
$141.84¢70 919
1
#23
92014-06014-00
BOLT, BUTTON HEAD
$3.15¢1 575
1
#24
90464-10233-00
CLAMP
$7.56¢3 781
1
