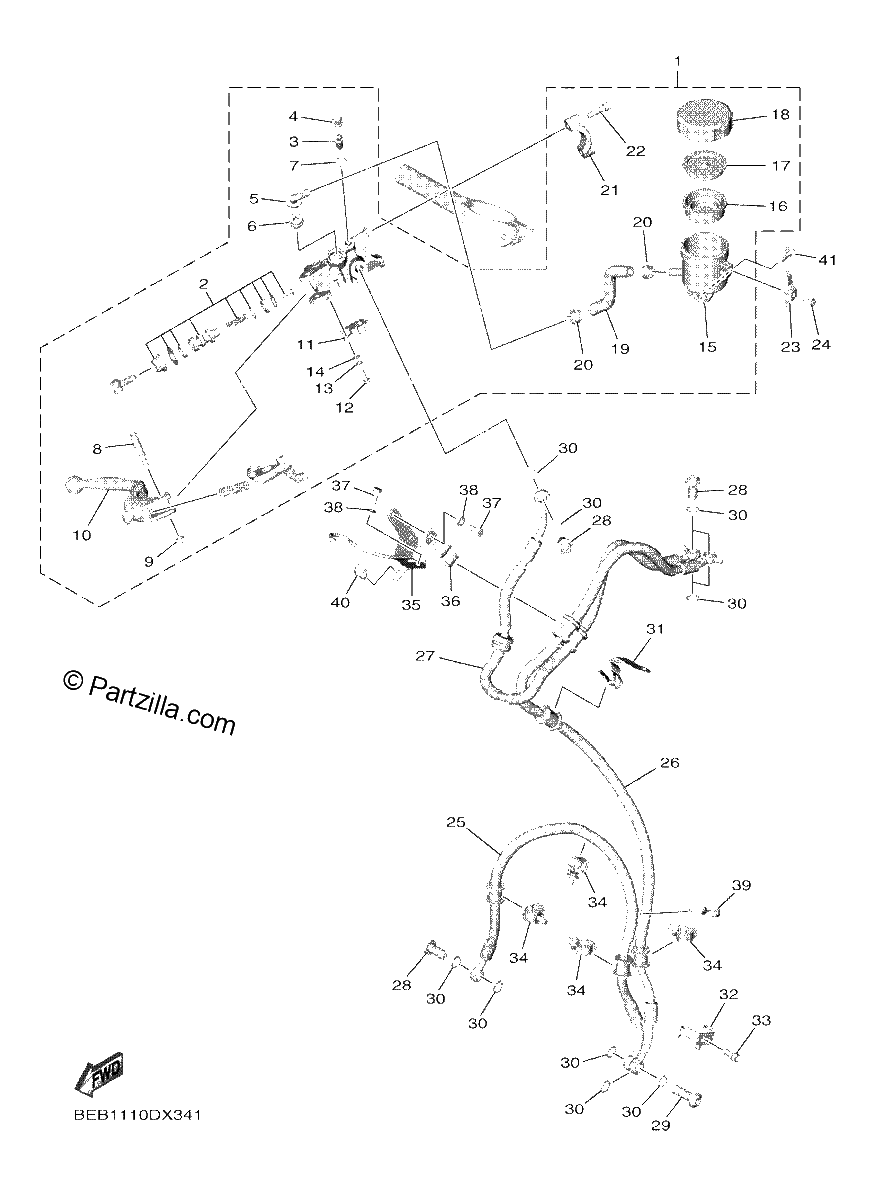

FRONT MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
MASTER CYLINDER ASSY
$325.85¢162 925
#2
. CYLINDER KIT, MASTER
No Disponible
#3
SCREW, BLEED
$8.97¢4 488
#4
CAP
$13.90¢6 950
#5
JOINT
$4.41¢2 206
#6
O-RING
$11.39¢5 694
#7
SEAL 1
$1.93¢963
#8
BOLT, LEVER
$7.48¢3 738
#9
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
#10
LEVER SET
$55.79¢27 894
#11
FRONT STOP SWITCH ASSY
$36.71¢18 356
#12
SCREW, PAN HEAD
No Disponible
#13
WASHER, SPRING
$0.74¢369
#14
WASHER, PLATE
$1.20¢600
#15
TANK, RESERVOIR
$39.35¢19 675
#16
DIAPHRAGM, RESERVOIR
$33.59¢16 794
#17
BUSH, DIAPHRAGM
$4.49¢2 244
#18
CAP, RESERVOIR
$18.90¢9 450
#19
HOSE, RESERVOIR
$6.91¢3 456
#20
CLIP
$6.99¢3 494
#21
BRACKET, MASTER CYLINDER
$37.81¢18 906
#22
BOLT
$4.68¢2 338
#23
HOLDER
$8.92¢4 462
#24
SCREW
$7.60¢3 800
#25
HOSE, BRAKE 1
$56.22¢28 112
#26
BRAKE HOSE ASSY
$84.45¢42 225
#27
HOSE, BRAKE
$73.31¢36 656
#28
BOLT, UNION
$4.41¢2 206
#29
BOLT, UNION
$18.96¢9 481
#30
GASKET
$8.39¢4 194
#31
HOLDER, BRAKE HOSE 1
$9.49¢4 744
#32
HOLDER, BRAKE HOSE
$9.20¢4 600
#33
BOLT, FLANGE DEEP RECESS
$1.10¢550
#34
CLAMP
$8.25¢4 125
#35
BRACKET
$31.54¢15 769
#36
BRACKET 2
$6.47¢3 238
#37
BOLT, HEXAGON
$7.34¢3 669
#38
WASHER, PLATE
$0.96¢481
#39
CLAMP
$1.82¢913
#40
CLAMP
$6.50¢3 250
#41
BOLT, HEX. SOCKET BUTTON
$8.09¢4 044
