SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

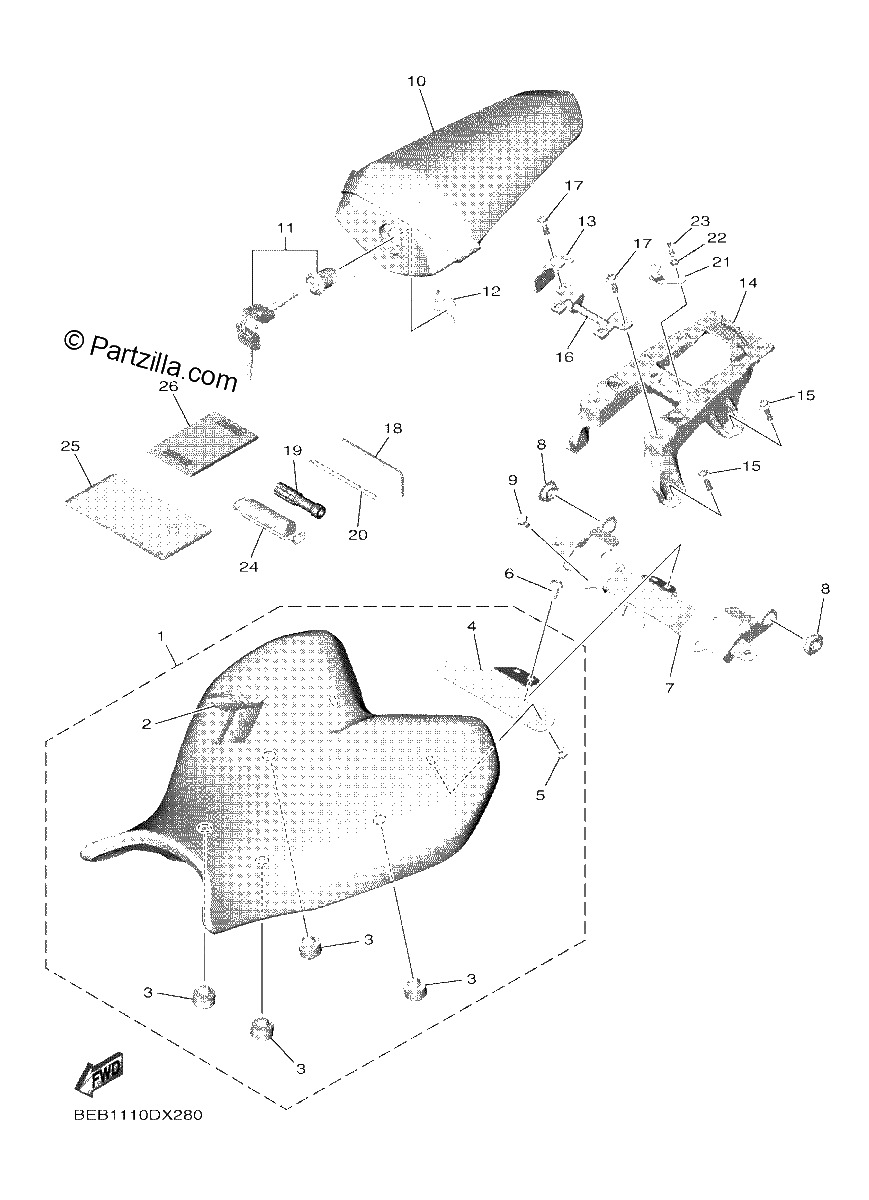

Diagrama de SEAT

Repuestos

#1
BEB-24710-00-00
SINGLE SEAT ASSY
$158.34¢79 172
1
#2
BEB-2470F-00-00
SEAT COVER COMP
$77.43¢38 715
1
#3
278-27114-00-00
STOPPER, MAIN STAND
$9.28¢4 640
1
#4
BEB-24716-00-00
STAY, REAR
$18.26¢9 131
1
#5
95602-06200-00
NUT, SELF-LOCKING
$2.58¢1 288
1
#6
92017-08014-00
BOLT,BUTTON (replaces 90111-08072-00)
$7.30¢3 651
1
#7
BEB-21131-00-00
BRACKET
$73.08¢36 541
1
#8
90480-01558-00
Grommet
$4.31¢2 156
1
#9
95D32-06010-00
BLOT, FLANGE DEEP RECESS
$0.68¢339
1
#10
BEB-24750-00-00
TANDEM SEAT ASSY
$119.19¢59 593
1
#11
2CR-W2470-00-00
ROTOR SET
$65.25¢32 625
1
#12
5VY-2176V-00-00
SPRING, LOCK 2
$9.82¢4 910
1
#13
BEB-24728-00-00
BRACKET, SEAT
$5.89¢2 944
1
#14
BEB-2471A-00-00
STAY, SEAT
$87.00¢43 499
1
#15
90110-06349-00
BOLT, HEXAGON SOCKET HEAD
$2.58¢1 288
1
#16
2CR-2478X-00-00
BRACKET, SEAT LOCK
$19.14¢9 568
1
#17
90110-06163-00
BOLT, HEXAGON SOCKET
$8.39¢4 198
1
#18
14B-28164-00-00
WRENCH, HEXAGON 8
$4.13¢2 064
1
#19
2H7-28151-00-00
GRIP, DRIVER
$6.51¢3 254
1
#20
137-28152-00-00
DRIVER
$3.78¢1 892
1
#21
BEB-28170-00-00
HOLDER, TOOL
$5.44¢2 720
1
#22
5SL-84753-00-00
DAMPER
$5.93¢2 967
1
#23
90269-07007-00
RIVET
$3.68¢1 840
1
#24
BEB-82131-00-00
BAND, BATTERY
$15.01¢7 504
1
#25
B5U-28100-00-00
TOOL KIT
$36.17¢18 084
1
#26
4KG-28186-11-00
POUCH
$7.81¢3 904
1
