FUEL TANK 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

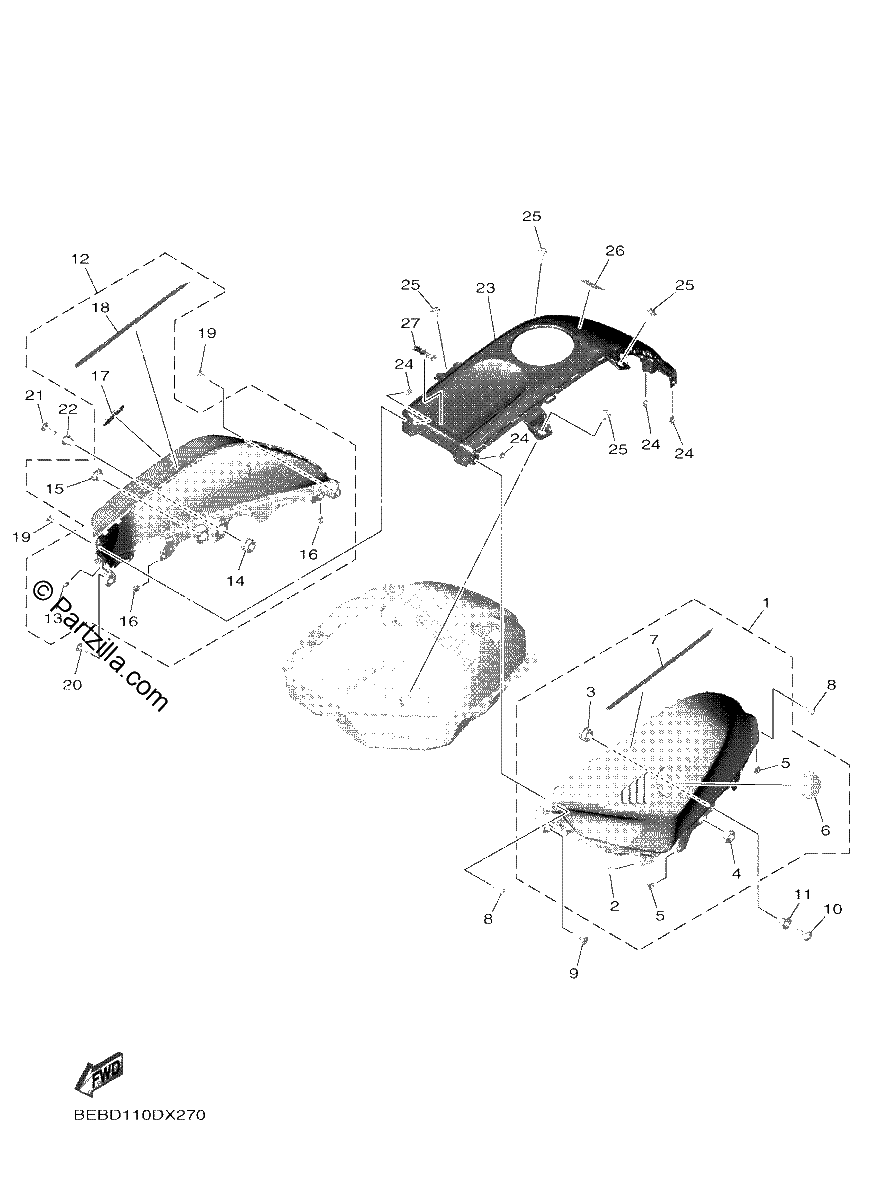

Diagrama de FUEL TANK 2

Repuestos

#1
BEB-Y2412-20-GE
COVER, TANK SIDE 1 ASSY (SILKY WHITE)
$251.14¢125 568
1
#2
90183-05042-00
NUT, SPRING
$1.15¢575
1
#3
90480-17007-00
GROMMET
$6.92¢3 461
1
#4
90480-01558-00
Grommet
$4.31¢2 156
1
#5
90183-05042-00
NUT, SPRING
$1.15¢575
1
#6
BEB-2413B-00-00
. EMBLEM
$31.91¢15 956
1
#7
BEB-2424A-00-00
. GRAPHIC 7
$32.95¢16 474
1
#8
90160-05014-00
SCREW, ROUND TAPPING
$7.08¢3 542
1
#9
90269-06083-00
RIVET
$5.93¢2 967
1
#10
90111-06150-00
BOLT, HEX. SOCKET BUTTON
$2.28¢1 138
1
#11
90387-10107-00
COLLAR
$4.98¢2 490
1
#12
BEB-Y2413-20-GE
COVER, TANK SIDE 2 ASSY (SILKY WHITE)
$178.53¢89 263
1
#13
90183-05042-00
NUT, SPRING
$1.15¢575
1
#14
90480-17007-00
GROMMET
$6.92¢3 461
1
#15
90480-01558-00
Grommet
$4.31¢2 156
1
#16
90183-05042-00
NUT, SPRING
$1.15¢575
1
#17
BEB-2413B-00-00
. EMBLEM
$31.91¢15 956
1
#18
BEB-2424B-00-00
. GRAPHIC 8
$32.95¢16 474
1
#19
90160-05014-00
SCREW, ROUND TAPPING
$7.08¢3 542
1
#20
90269-06083-00
RIVET
$5.93¢2 967
1
#21
90111-06150-00
BOLT, HEX. SOCKET BUTTON
$2.28¢1 138
1
#22
90387-10107-00
COLLAR
$4.98¢2 490
1
#23
BEB-2171A-00-P2
COVER, TOP
$113.15¢56 574
1
#24
90183-05042-00
NUT, SPRING
$1.15¢575
1
#25
90109-06322-00
bolt
$5.95¢2 973
1
#26
1TP-2118K-A2-00
. LABEL, CAUTION
$6.59¢3 295
1
#27
BEB-2416B-00-00
EMBLEM
$35.58¢17 790
1
