TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

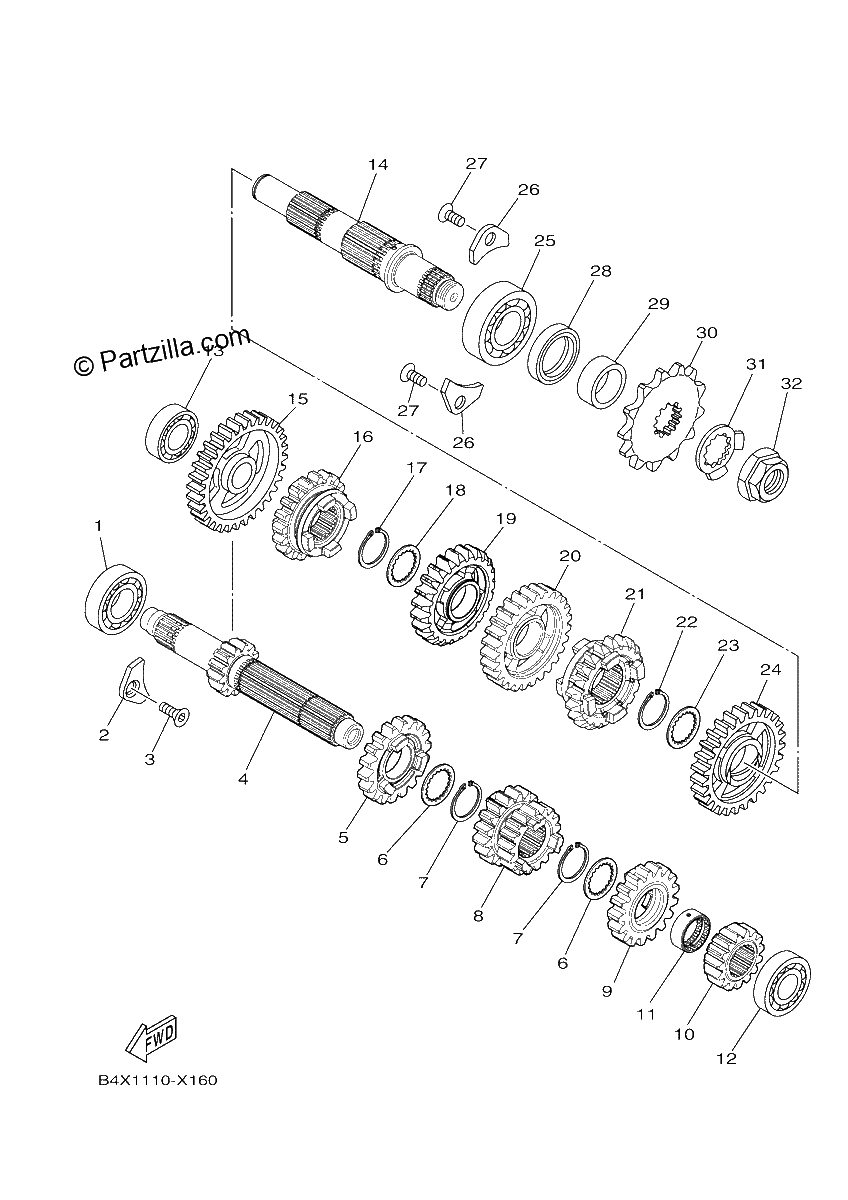

Diagrama de TRANSMISSION

Repuestos

#1
93306-00442-00
BEARING
$38.54¢19 268
1
#2
4JT-15381-01-00
PLATE, BEARING COV
$11.53¢5 767
1
#3
90149-06074-00
SCREW
$6.99¢3 496
1
#4
B4X-17411-00-00
AXLE, MAIN (13T)
$177.12¢88 562
1
#5
B4X-17161-00-00
GEAR, 6TH PINION (18T)
$94.81¢47 403
1
#6
90209-20008-00
WASHER
$9.40¢4 698
1
#7
93410-22039-00
CIRCLIP,S-TYPE
$6.75¢3 375
1
#8
B4X-17131-00-00
GEAR, 3RD PINION (17T/17T)
$237.42¢118 709
1
#9
B4X-17151-00-00
GEAR, 5TH PINION (17T)
$92.87¢46 437
1
#10
B4X-17121-00-00
GEAR, 2ND PINION (15T)
$92.30¢46 149
1
#11
90387-20006-00
Collar
$29.12¢14 559
1
#12
93306-20351-00
BEARING
$37.40¢18 699
1
#13
93306-00326-00
BEARING
$35.39¢17 693
1
#14
B4X-17421-00-00
AXLE, DRIVE
$174.28¢87 141
1
#15
1C3-17211-10-00
GEAR, 1ST WHEEL (31T)
$115.92¢57 960
1
#16
B4X-17261-00-00
GEAR, 6TH WHEEL (19T)
$182.83¢91 413
1
#17
93410-22039-00
CIRCLIP,S-TYPE
$6.75¢3 375
1
#18
90209-20008-00
WASHER
$9.40¢4 698
1
#19
B4X-17241-00-00
GEAR, 4TH WHEEL (23T)
$144.46¢72 232
1
#20
B4X-17231-00-00
GEAR, 3RD WHEEL (27T)
$170.77¢85 387
1
#21
B4X-17251-00-00
GEAR, 5TH WHEEL (20T)
$179.95¢89 976
1
#22
93410-26067-00
CIRCLIP,S-TYPE
$8.13¢4 065
1
#23
90209-23012-00
WASHER
$5.51¢2 754
1
#24
B4X-17221-00-00
GEAR, 2ND WHEEL (29T)
$152.38¢76 188
1
#25
93306-20447-00
BEARING (replaces 93306-20427-00)
$38.27¢19 136
1
#26
4JT-15381-01-00
PLATE, BEARING COV
$11.53¢5 767
1
#27
90149-06074-00
SCREW
$6.99¢3 496
1
#28
93102-28012-00
Oil Seal
$16.08¢8 038
1
#29
90387-22004-00
COLLAR
$36.41¢18 205
1
#30
9383B-13218-00
SPROCKET, DRIVE (13T)
$20.87¢10 436
1
#31
90215-20003-00
Washer, Lock
$6.72¢3 358
1
#32
90179-18001-00
Nut
$15.03¢7 515
1
