FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

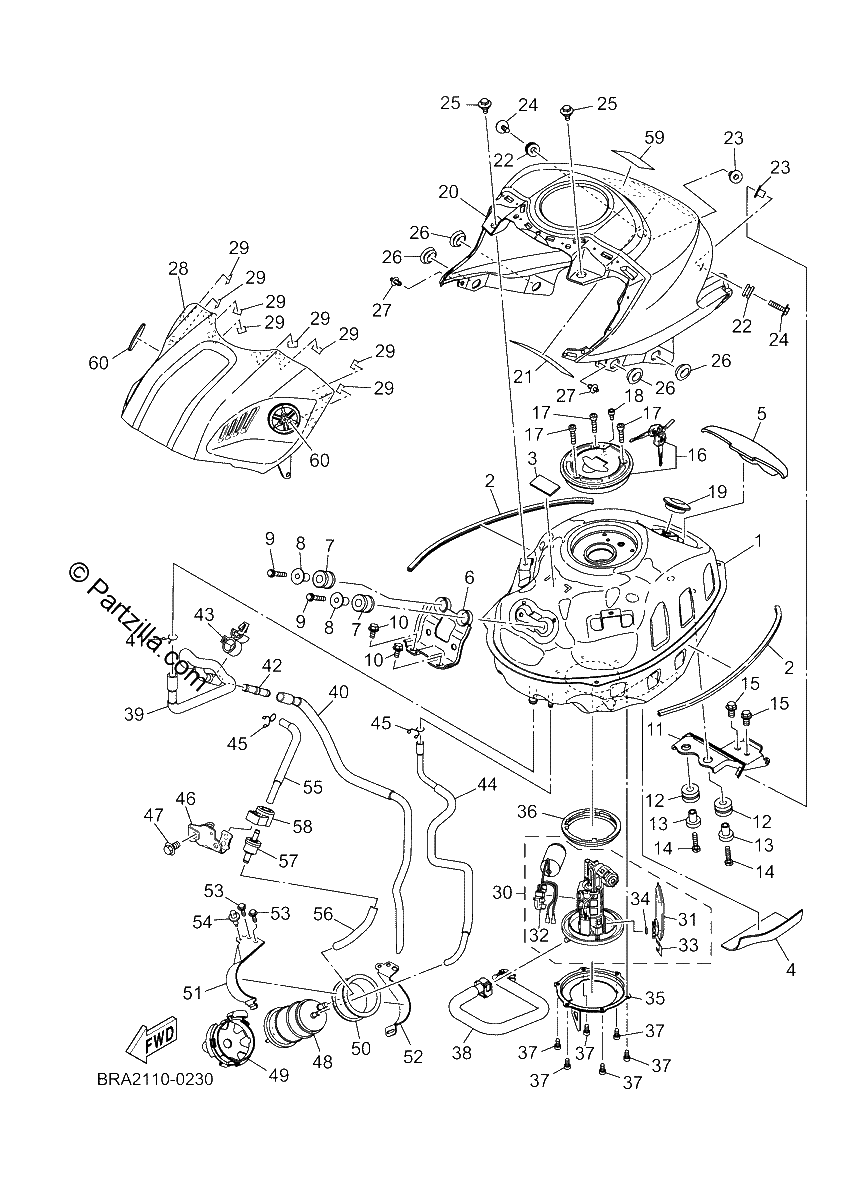

Diagrama de FUEL TANK

Repuestos

#1
BS7-F4110-00-00
FUEL TANK COMP.
$319.99¢159 994
1
#2
BS7-F4188-00-00
MOLD, FUEL TANK
$17.27¢8 638
1
#3
5D9-H2126-00-00
PAD, BATTERY (5D91)
$0.74¢369
1
#4
90520-02843-00
DAMPER, PLATE
$2.09¢1 044
1
#5
BS7-F414E-00-00
SEAL 2
$10.36¢5 181
1
#6
BS7-F412Y-00-00
BRACKET, TANK FITTING
$43.15¢21 575
1
#7
90480-18813-00
Grommet
$1.29¢644
1
#8
90387-068M3-00
Collar
$3.67¢1 838
1
#9
97022-06030-00
BOLT, HEXAGON
$3.57¢1 787
1
#10
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
1
#11
BS7-F4191-10-00
BRACKET, FUEL TANK 1
$20.18¢10 088
1
#12
90480-15807-00
GROMMET
$1.36¢681
1
#13
90387-068S8-00
Collar
$1.36¢681
1
#14
97022-06030-00
BOLT, HEXAGON
$3.57¢1 787
1
#15
95E32-08014-00
BOLT, FLANGE DEEP RECESS
$0.53¢263
1
#16
BS7-WF461-00-00
CAP ASSY
$118.90¢59 450
1
#17
90110-05806-00
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
1
#18
91312-05010-00
BOLT
$5.86¢2 931
1
#19
90480-01806-00
Grommet
$1.98¢988
1
#20
BS7-F41B1-00-P0
COVER, TANK (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$93.49¢46 744
1
#21
90520-03841-00
DAMPER, PLATE
$2.36¢1 181
1
#22
90480-12808-00
GROMMET
$2.95¢1 475
1
#23
90387-06899-00
COLLAR
$2.94¢1 469
1
#24
90119-06309-00
BOLT, WITH WASHER
$2.06¢1 031
1
#25
90109-068B2-00
BOLT (B9B1)
$0.49¢244
1
#26
90480-01559-00
Grommet
$5.72¢2 863
1
#27
90269-06816-00
RIVET
$1.71¢856
1
#28
BS7-F171A-01-P0
COVER, TOP (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$18.75¢9 375
1
#29
31B-F8307-00-00
SEAL
$2.65¢1 325
1
#30
BS7-E3907-01-00
FUEL PUMP COMP.
$232.79¢116 394
1
#31
3C1-E3915-00-00
FILTER
$18.43¢9 213
1
#32
BS7-H5752-00-00
SENDER UNIT ASSY, FUEL METER
$129.45¢64 725
1
#33
3C1-F4519-00-00
CLIP
$5.07¢2 537
1
#34
3C1-24512-00-00
Gasket
$28.75¢14 375
1
#35
BS7-F4491-00-00
Bracket, Fuel Pump
$11.14¢5 569
1
#36
3C1-F4486-00-00
O-RING
$44.56¢22 281
1
#37
91312-05010-00
BOLT
$5.86¢2 931
1
#38
1WD-E3971-02-00
PIPE, FUEL 1
$73.64¢36 819
1
#39
1WD-F4312-01-00
PIPE 2
$18.68¢9 338
1
#40
B9T-F4314-00-00
PIPE 4
$14.04¢7 019
1
#41
90467-15012-00
CLIP,SCISSOR
$5.61¢2 806
1
#42
1WD-F4376-00-00
PIPE, JOINT 1
$16.65¢8 325
1
#43
90464-16012-00
Clamp
$6.45¢3 225
1
#44
BRA-F433A-00-00
PIPE,CHARGE EPA 1
$30.11¢15 056
1
#45
90467-09006-00
CLIP, SCISSOR | FOR CAL
$2.97¢1 487
1
#46
BRA-F419F-00-00
BRACKET, CANISTOR
$9.59¢4 794
1
#47
95E37-08012-00
BOLT, FLANGE DEEP RECESS
$0.53¢263
1
#48
2MS-F4170-00-00
CANISTER ASSY
$155.65¢77 825
1
#49
B1X-F419E-00-00
COVER, CANISTER
$7.40¢3 700
1
#50
2MS-F483H-00-00
BAND
$3.71¢1 856
1
#51
2MS-F115R-00-00
BRACKET, CANISTER
$14.59¢7 294
1
#52
2MS-F134X-00-00
BRACKET, CANISTER
$13.67¢6 837
1
#53
95E37-06016-00
BOLT, FLANGE DEEP RECESS
$0.47¢238
1
#54
90269-06816-00
RIVET
$1.71¢856
1
#55
B1X-F4316-00-00
PIPE 6
$15.44¢7 719
1
#56
B1X-F4317-00-00
PIPE 7
$9.41¢4 706
1
#57
B1X-F4421-00-00
VALVE, CHECK *{FOR CAL}*
$41.84¢20 919
1
#58
B1X-F419A-00-00
HOLDER
$1.39¢694
1
#59
1TP-2118K-A2-00
. LABEL, CAUTION
$7.16¢3 581
1
#60
1WD-F413B-01-00
TUNING FORK MARK, 3D
$10.56¢5 281
1
