WATER PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

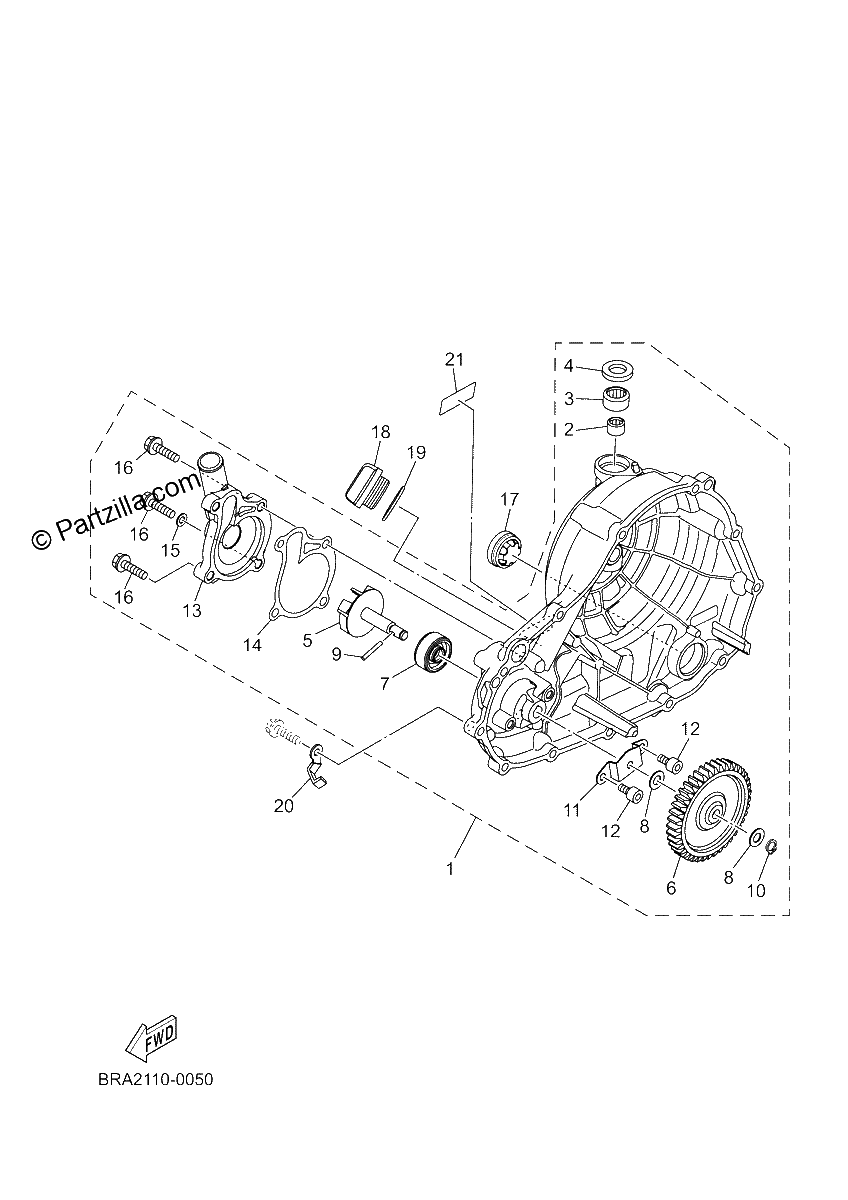

Diagrama de WATER PUMP

Repuestos

#1
BRA-E2420-00-00
WATER PUMP ASSY
$244.10¢122 049
1
#2
93317-11096-00
BEARING
$21.90¢10 948
1
#3
93315-21570-00
BEARING
$16.09¢8 044
1
#4
93102-15801-00
OIL SEAL
$6.55¢3 278
1
#5
1WD-E2450-00-00
IMPELLER SHAFT ASSY
$62.19¢31 096
1
#6
1WD-E2453-00-00
GEAR
$63.50¢31 751
1
#7
33S-E2223-00-00
SEAL
$65.25¢32 625
1
#8
33S-E2456-00-00
WASHER
$1.83¢914
1
#9
1WD-E319L-00-00
PIN, STRAIGHT
$1.60¢799
1
#10
99009-08400-00
CIRCLIP
$1.61¢805
1
#11
1WD-E2681-00-00
PLATE
$49.79¢24 897
1
#12
91312-06010-00
BOLT
$7.58¢3 789
1
#13
BRA-E2422-00-00
COVER, HOUSING
$28.75¢14 375
1
#14
1WD-E2428-00-00
GASKET, HOUSING COVER 2
$4.05¢2 024
1
#15
90430-06014-00
GASKET
$7.59¢3 795
1
#16
95022-06025-00
BOLT, FLANGE
$1.61¢805
1
#17
2H7-15361-00-00
GAUGE, LEVEL
$94.59¢47 294
1
#18
1WD-E5362-00-00
PLUG, OIL LEVEL
$6.73¢3 364
1
#19
93210-27807-00
O-RING
$1.35¢673
1
#20
90462-08225-00
CLAMP
$8.45¢4 226
1
#21
BRA-E548B-00-00
OIL, LABEL
$1.83¢914
1
