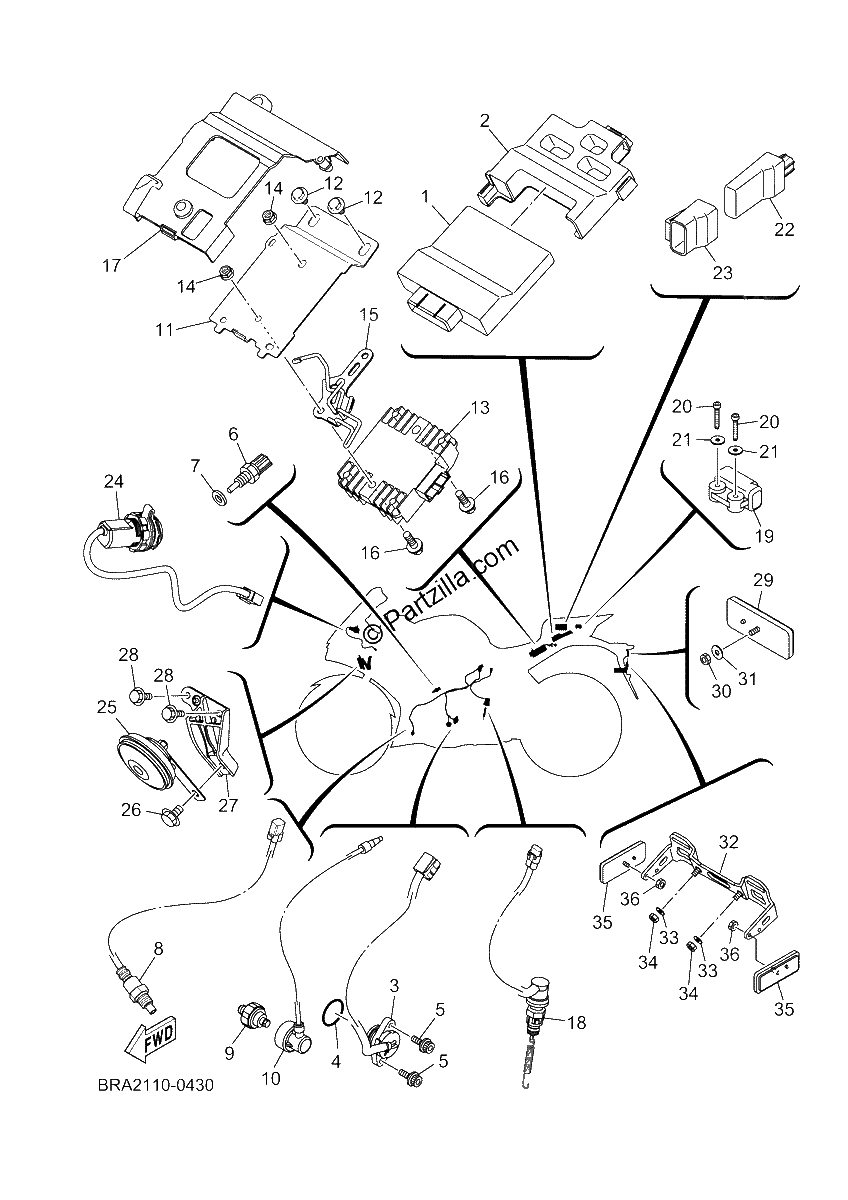

ELECTRICAL 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
ENGINE CONTROL UNIT ASSY
$402.88¢201 438
#2
BAND
$6.90¢3 450
#3
NEUTRAL SWITCH ASSY
$35.51¢17 756
#4
O-RING
$1.90¢950
#5
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
#6
THERMO UNIT
$17.06¢8 531
#7
GASKET
$5.32¢2 662
#8
SENSOR, OXYGEN
$113.24¢56 619
#9
OIL PRESSURE SWITCH ASSY
$72.81¢36 406
#10
LEAD WIRE ASSY
$4.83¢2 413
#11
PLATE, RECTIFIER FITTING
$12.84¢6 419
#12
BOLT, WITH WASHER
$7.95¢3 975
#13
RECTIFIER REGULATOR ASSY
$112.54¢56 269
#14
NUT, SELF-LOCKING
$2.80¢1 400
#15
STAY, REGULATOR
$7.76¢3 881
#16
BOLT, FLANGE DEEP RECESS
$1.09¢544
#17
COVER, RECTIFIER
$12.48¢6 238
#18
STOP SWITCH ASSY
$26.88¢13 438
#19
SENSOR, LEAN ANGLE
$48.67¢24 338
#20
BOLT
$1.84¢919
#21
WASHER, PLATE
$3.33¢1 663
#22
COMMUNICATION CONT. UNIT ASSY
$132.84¢66 419
#23
BAND
$1.81¢906
#24
USB ASSY
$67.17¢33 588
#25
HORN
$37.13¢18 563
#26
BOLT, FLANGE DEEP
$0.53¢263
#27
STAY, HORN
$28.77¢14 388
#28
BOLT, FLANGE DEEP RECESS
$0.83¢413
#29
REAR REFLECTOR ASSY
$3.79¢1 894
#30
Nut, U
$7.94¢3 969
#31
WASHER, PLATE
$6.47¢3 238
#32
BRACKET, LICENSE
$15.30¢7 650
#33
WASHER, PLATE
$3.50¢1 750
#34
NUT, U FLANGE
$12.61¢6 306
#35
REAR REFLECTOR ASSY
$3.79¢1 894
#36
NUT, FLANGE
$7.35¢3 675
