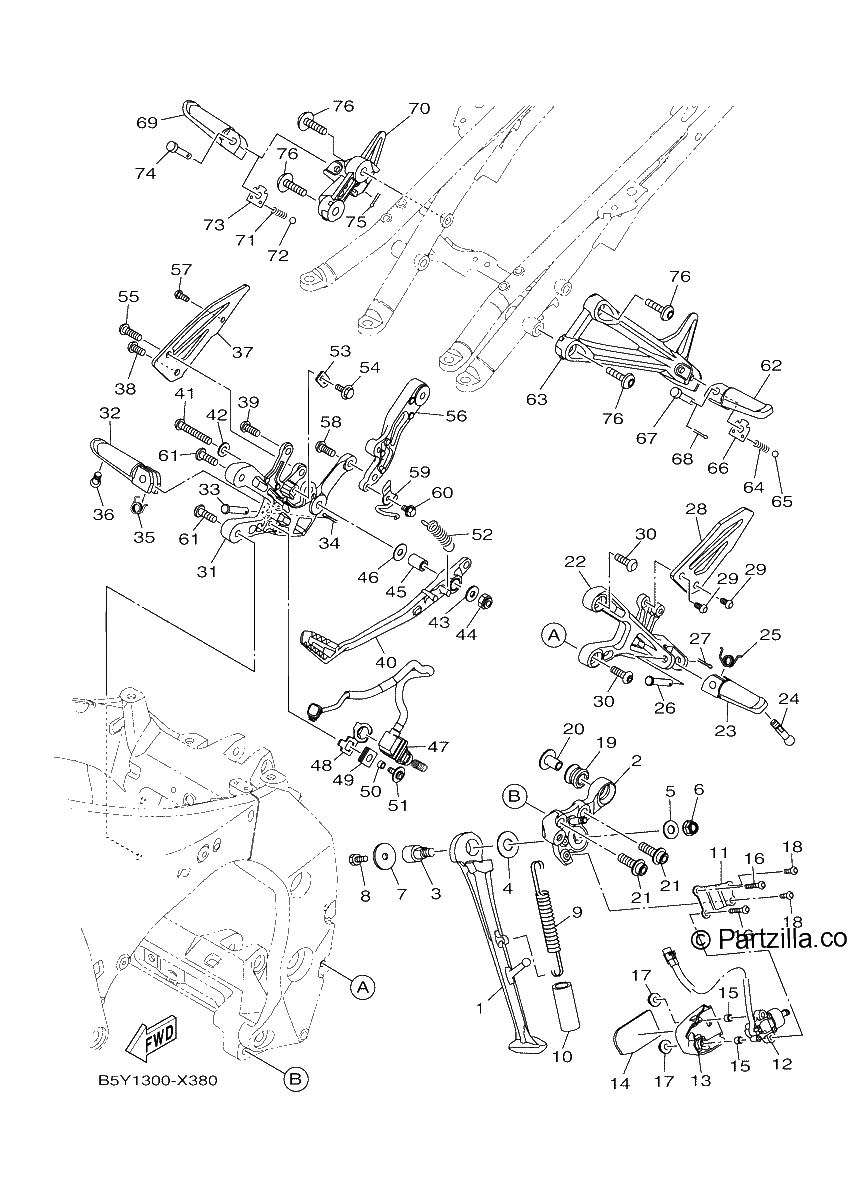

STAND FOOTREST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
STAND, SIDE
$290.49¢145 244
#2
BRACKET, SIDE STAND
$245.40¢122 700
#3
GUIDE, SIDE STAND
$42.14¢21 069
#4
WASHER, PLATE
$5.95¢2 975
#5
WASHER, plate
$4.25¢2 125
#6
NUT, U FLANGE
$2.73¢1 363
#7
WASHER, PLATE
$5.84¢2 919
#8
bolt
$3.01¢1 506
#9
SPRING, TENSION
$15.25¢7 625
#10
HOSE (L60)
$4.68¢2 338
#11
BRACKET, SENSOR 1
$12.36¢6 181
#12
SWITCH, SIDE STAND
$121.42¢60 713
#13
COVER 1
$12.16¢6 081
#14
SEAT 1
$3.83¢1 913
#15
COLLAR
$6.15¢3 075
#16
BOLT, BUTTON HEAD
$6.19¢3 094
#17
NUT, SELF-LOCKING
$8.16¢4 081
#18
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
#19
DAMPER, MUFFLER
$14.65¢7 325
#20
COLLAR
$10.14¢5 069
#21
BOLT
$11.54¢5 769
#22
BRACKET 2
$76.59¢38 294
#23
Footrest
$22.34¢11 169
#24
BOLT
$4.88¢2 438
#25
SPRING, TORSION
$7.35¢3 675
#26
PIN
$4.84¢2 419
#27
PIN, COTTER
$3.61¢1 806
#28
PLATE 1
$44.90¢22 450
#29
BOLT,HEX. SOCKET BUTTON
$2.97¢1 487
#30
BOLT,HEX. SOCKET BUTTON
$2.26¢1 131
#31
BRACKET 3
$96.45¢48 225
#32
FOOTREST
$25.92¢12 962
#33
PIN
$4.84¢2 419
#34
PIN, COTTER
$3.61¢1 806
#35
SPRING, TORSION
$8.80¢4 400
#36
BOLT
$4.88¢2 438
#37
PLATE 2
$37.65¢18 825
#38
BOLT, BUTTON HEAD
$8.31¢4 156
#39
BOLT, BUTTON HEAD
$2.65¢1 325
#40
PEDAL, BRAKE
$140.91¢70 456
#41
BOLT, BUTTON HEAD
$2.71¢1 356
#42
WASHER
$0.28¢138
#43
WASHER, PLATE
$6.85¢3 425
#44
NUT, SELF-LOCKING
$8.70¢4 350
#45
COLLAR
$8.73¢4 363
#46
WASHER, PLATE
$6.75¢3 375
#47
STOP SWITCH ASSY
$71.33¢35 663
#48
STAY, STOP SWITCH
$6.14¢3 069
#49
GROMMET
$10.18¢5 088
#50
COLLAR
$4.16¢2 081
#51
SCREW, WITH WASHER
$7.70¢3 850
#52
SPRING, TENSION
$4.68¢2 338
#53
BRACKET 1
$3.28¢1 638
#54
BLOT, FLANGE DEEP RECESS
$0.74¢369
#55
BOLT, BUTTON HEAD
$6.85¢3 425
#56
STAY, MUFFLER 3
$95.88¢47 938
#57
BOLT, BUTTON HEAD
$7.35¢3 675
#58
BOLT, BUTTON HEAD
$2.65¢1 325
#59
BRACKET 4
$17.44¢8 719
#60
BLOT, FLANGE DEEP RECESS
$0.74¢369
#61
BOLT,HEX. SOCKET BUTTON
$2.26¢1 131
#62
FOOTREST, REAR 1
$44.04¢22 019
#63
BRACKET 4
$72.66¢36 331
#64
SPRING, COMPRESSION
$3.81¢1 906
#65
BALL
$7.46¢3 731
#66
WASHER, SPECIAL
$7.99¢3 994
#67
PIN, CLEVIS
$4.84¢2 419
#68
PIN, COTTER
$3.61¢1 806
#69
FOOTREST, REAR 2
$38.27¢19 138
#70
BRACKET 5
$74.63¢37 313
#71
SPRING, COMPRESSION
$3.81¢1 906
#72
BALL
$7.46¢3 731
#73
WASHER, SPECIAL
$7.99¢3 994
#74
PIN, CLEVIS
$4.84¢2 419
#75
PIN, COTTER
$3.61¢1 806
#76
BOLT,HEX. SOCKET BUTTON
$2.26¢1 131
