ELECTRICAL 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

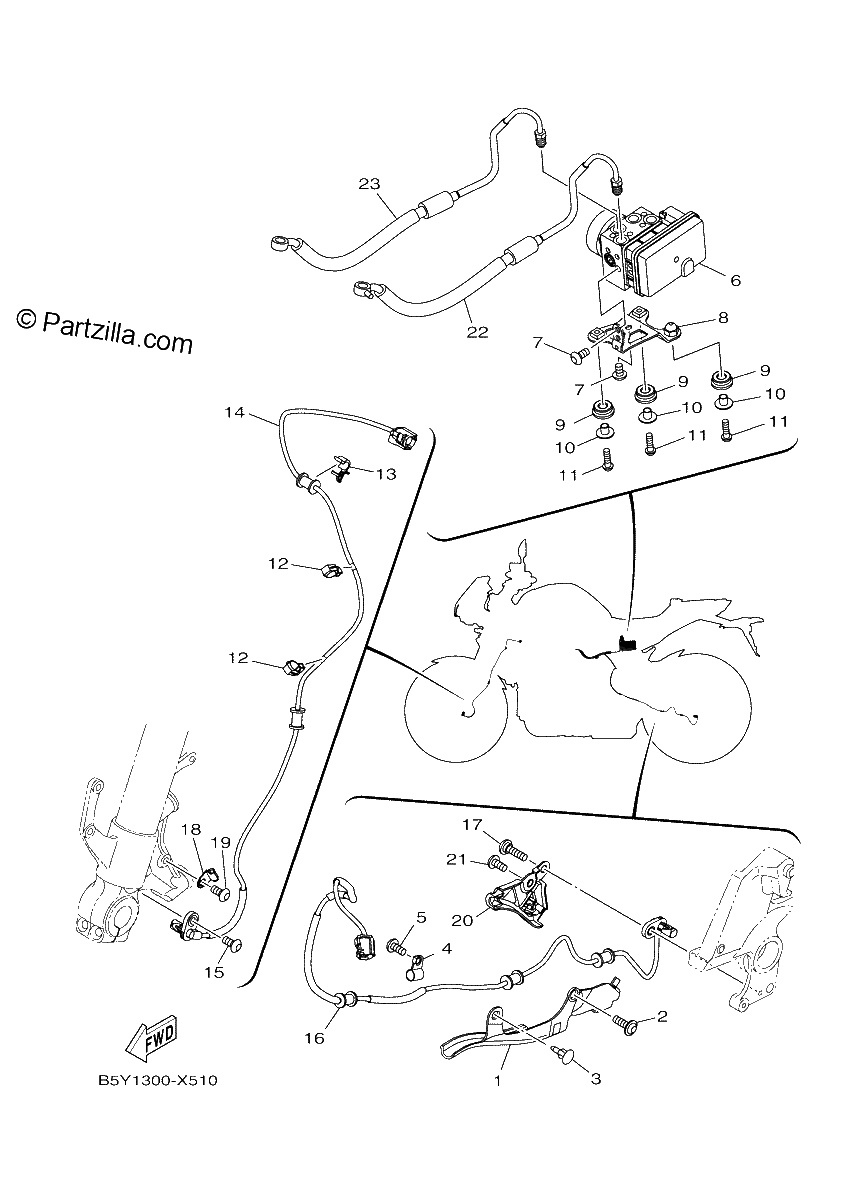

Diagrama de ELECTRICAL 3

Repuestos

#1
2CR-2219X-00-00
COVER
$15.97¢7 987
1
#2
92012-06016-00
BOLT, BUTTON HEAD
$6.82¢3 410
1
#3
90269-07007-00
RIVET
$3.68¢1 840
1
#4
B67-2216F-00-00
HOOK
$9.20¢4 600
1
#5
92012-06012-00
BOLT, BUTTON HEAD
$2.74¢1 368
1
#6
B5Y-85930-09-00
HYDRAULIC UNIT ASSY
$1270.74¢635 369
1
#7
92012-06010-00
BOLT, BUTTON HEAD
$2.68¢1 340
1
#8
B5Y-85991-00-00
BRACKET, UNIT
$23.68¢11 839
1
#9
90480-13567-00
GROMMET
$4.25¢2 128
1
#10
90387-067N5-00
COLLAR
$5.66¢2 829
1
#11
92017-06020-00
BOLT, BUTTON HEAD
$2.79¢1 397
1
#12
90464-12013-00
Clamp
$7.21¢3 605
1
#13
90464-09129-00
CLAMP
$2.02¢1 012
1
#14
2CR-85970-01-00
WHEEL SENSOR ASSY, FRONT
$130.28¢65 142
1
#15
92017-06014-00
BOLT, BUTTON HEAD
$3.06¢1 529
1
#16
2CR-85980-01-00
WHEEL SENSOR ASSY, REAR
$160.62¢80 310
1
#17
90109-06234-00
BOLT
$6.66¢3 329
1
#18
2CR-23317-00-00
HOLDER, CABLE
$9.88¢4 939
1
#19
92017-06014-00
BOLT, BUTTON HEAD
$3.06¢1 529
1
#20
2CR-27491-01-00
PROTECTOR
$14.95¢7 475
1
#21
92012-06012-00
BOLT, BUTTON HEAD
$2.74¢1 368
1
#22
B5Y-25871-01-00
PIPE, BRAKE
$65.41¢32 706
1
#23
B5Y-25882-00-00
PIPE, BRAKE 2
$61.56¢30 780
1
