HANDLE SWITCH LEVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

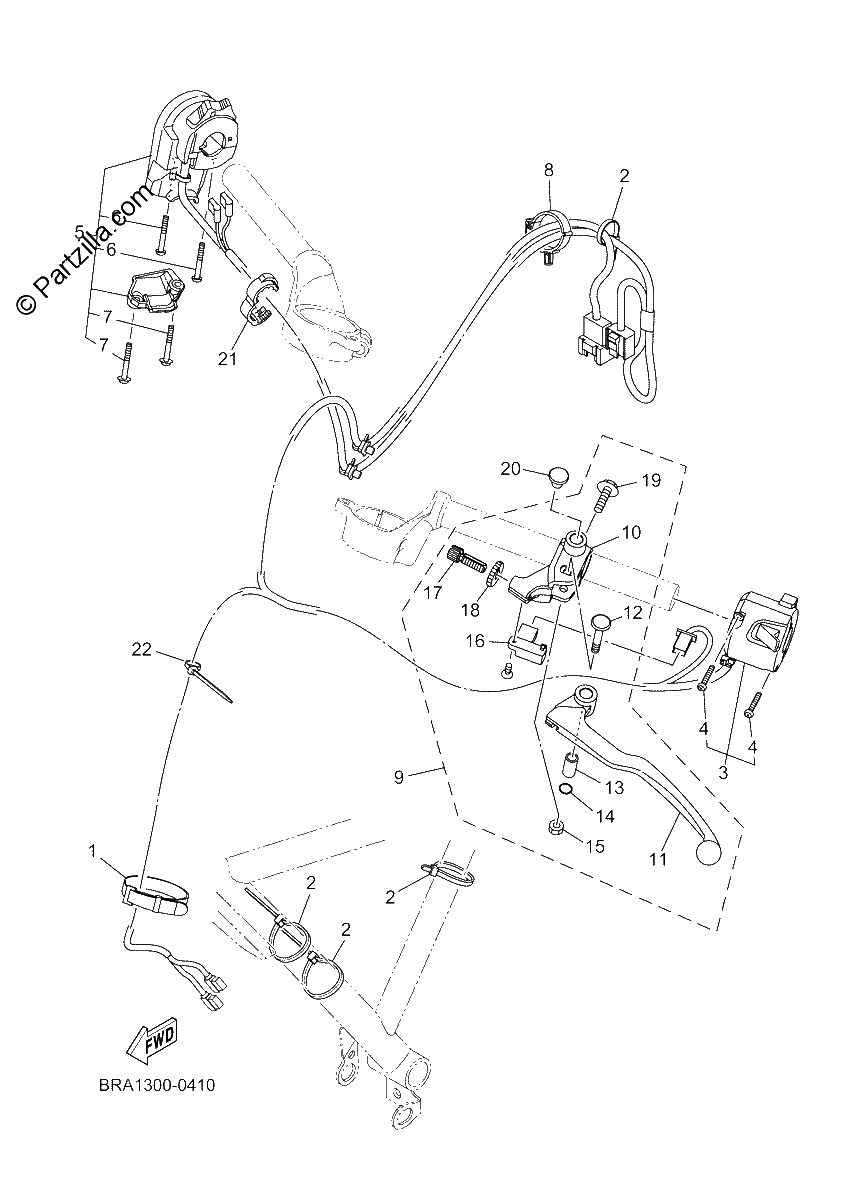

Diagrama de HANDLE SWITCH LEVER

Repuestos

#1
3AY-H3936-00-00
BAND SWITCH CORD
$4.91¢2 456
1
#2
90464-36005-00
CLAMP
$1.20¢600
1
#3
BRA-H3972-00-00
SWITCH, HANDLE 4
$143.46¢71 731
1
#4
98507-04025-00
SCREW, PAN HEAD
$3.50¢1 750
1
#5
B1X-H3975-02-00
SWITCH, HANDLE 2
$102.13¢51 063
1
#6
98507-04030-00
SCREW,PAN HEAD
$2.06¢1 031
1
#7
97607-05220-00
SCREW, WITH WASHER
$2.88¢1 438
1
#8
90464-30001-00
Clamp
$7.65¢3 825
1
#9
BRA-H2910-00-00
LEVER HOLDER ASSY (LEFT)
$73.69¢36 844
1
#10
1WD-H2911-00-00
HOLDER, LEVER 1
$18.43¢9 213
1
#11
BRA-H3912-00-00
LEVER 1
$20.74¢10 369
1
#12
31A-83945-00-00
BOLT, LEVER
$5.58¢2 788
1
#13
31A-83913-00-00
COLLAR, LEVER 1
$23.20¢11 600
1
#14
93210-108H5-00
. O-RING
$6.99¢3 494
1
#15
95602-06100-00
NUT, SELF-LOCKING
$2.86¢1 431
1
#16
5BP-H2917-00-00
SWITCH
$16.54¢8 269
1
#17
90123-08046-00
BOLT
$10.94¢5 469
1
#18
90179-08148-00
NUT
$4.64¢2 319
1
#19
97507-06525-00
BOLT, WITH WASHER
$1.27¢638
1
#20
90338-09803-00
PLUG
$0.38¢188
1
#21
90464-13227-00
Clamp
$7.88¢3 938
1
#22
90464-22800-00
CLAMP
$0.65¢325
1
