CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

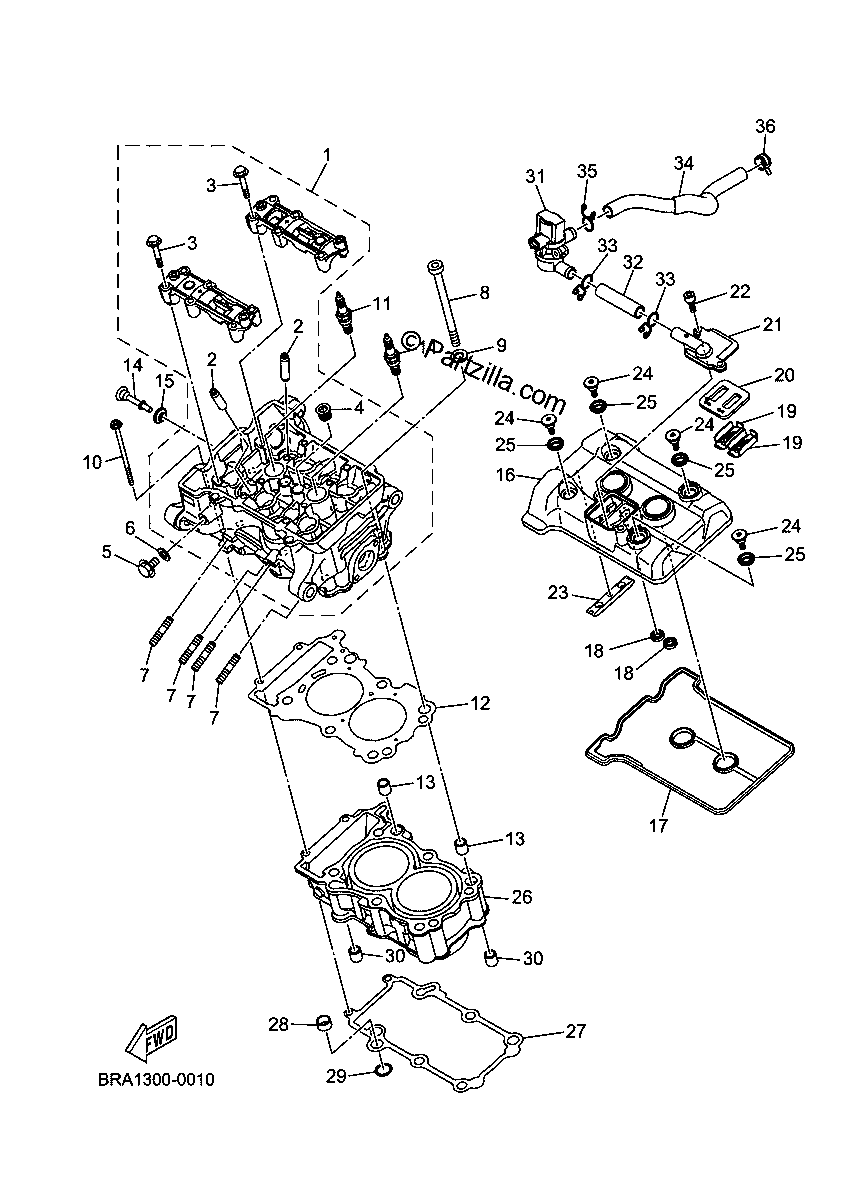

Diagrama de CYLINDER HEAD

Repuestos

#1
BRA-E1102-00-00
CYLINDER HEAD ASSY
$761.80¢380 900
1
#2
1WD-E1133-10-00
GUIDE, VALVE 1
$32.94¢16 469
1
#3
90105-06027-00
BOLT, FLANGE
$7.67¢3 838
1
#4
90340-18002-00
PLUG, STRAIGHT SCREW
$11.19¢5 594
1
#5
95022-08012-00
BOLT, FLANGE
$11.31¢5 656
1
#6
90430-08119-00
GASKET
$6.91¢3 456
1
#7
95612-08625-00
BOLT, STUD
$5.58¢2 788
1
#8
2MS-11361-00-00
BOLT, CYLINDER HOLDING 1
$11.90¢5 950
1
#9
90201-10845-00
WASHER, PLATE
$3.05¢1 525
1
#10
90110-06870-00
BOLT, HEXAGON SOCKET HEAD
$1.63¢813
1
#11
LMA-R8A9S-00-00
LMAR8A-9S NGK SPLUG (replaces 94701-00436-00)
$15.63¢7 813
1
#12
BR5-E1181-00-00
GASKET, CYLINDER HEAD 1
$11.85¢5 925
1
#13
99530-14016-00
PIN, DOWEL
$3.81¢1 906
1
#14
90109-06898-00
BOLT
$2.86¢1 431
1
#15
1WD-E111G-00-00
RUBBER, MOUNT 1
$10.19¢5 094
1
#16
BRA-E1191-00-00
COVER, CYLINDER HEAD 1
$77.60¢38 800
1
#17
B1X-E1193-00-00
GASKET, HEAD COVER 1
$38.86¢19 431
1
#18
BRA-E1195-00-00
GASKET
$4.04¢2 019
1
#19
5VY-1482K-00-00
PLATE
$4.65¢2 325
1
#20
B1X-E4890-00-00
REED VALVE ASSY
$32.71¢16 356
1
#21
1WD-E4899-00-00
CAP, CASE
$9.31¢4 656
1
#22
91332-06020-00
bolt
$0.30¢150
1
#23
1WD-E2241-01-00
GUIDE, STOPPER 2
$6.04¢3 019
1
#24
90109-06899-00
BOLT
$1.77¢888
1
#25
1WD-E111G-00-00
RUBBER, MOUNT 1
$10.19¢5 094
1
#26
BRA-E1311-00-00
CYLINDER 1
$159.60¢79 800
1
#27
B1X-E1351-00-00
GASKET, CYLINDER
$19.54¢9 769
1
#28
5NL-12564-00-00
PIPE, WATER
$6.29¢3 144
1
#29
93210-16716-00
O-RING
$1.70¢850
1
#30
99530-14016-00
PIN, DOWEL
$3.81¢1 906
1
#31
1WD-E4840-10-00
AIR CUT VALVE ASSY
$83.73¢41 863
1
#32
1WD-E4881-00-00
HOSE, BEND 1
$2.65¢1 325
1
#33
90467-16801-00
CLIP
$2.64¢1 319
1
#34
1WD-E4882-02-00
HOSE, BEND 2
$8.96¢4 481
1
#35
90467-16801-00
CLIP
$2.64¢1 319
1
#36
90467-16800-00
CLIP
$3.23¢1 613
1
