CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

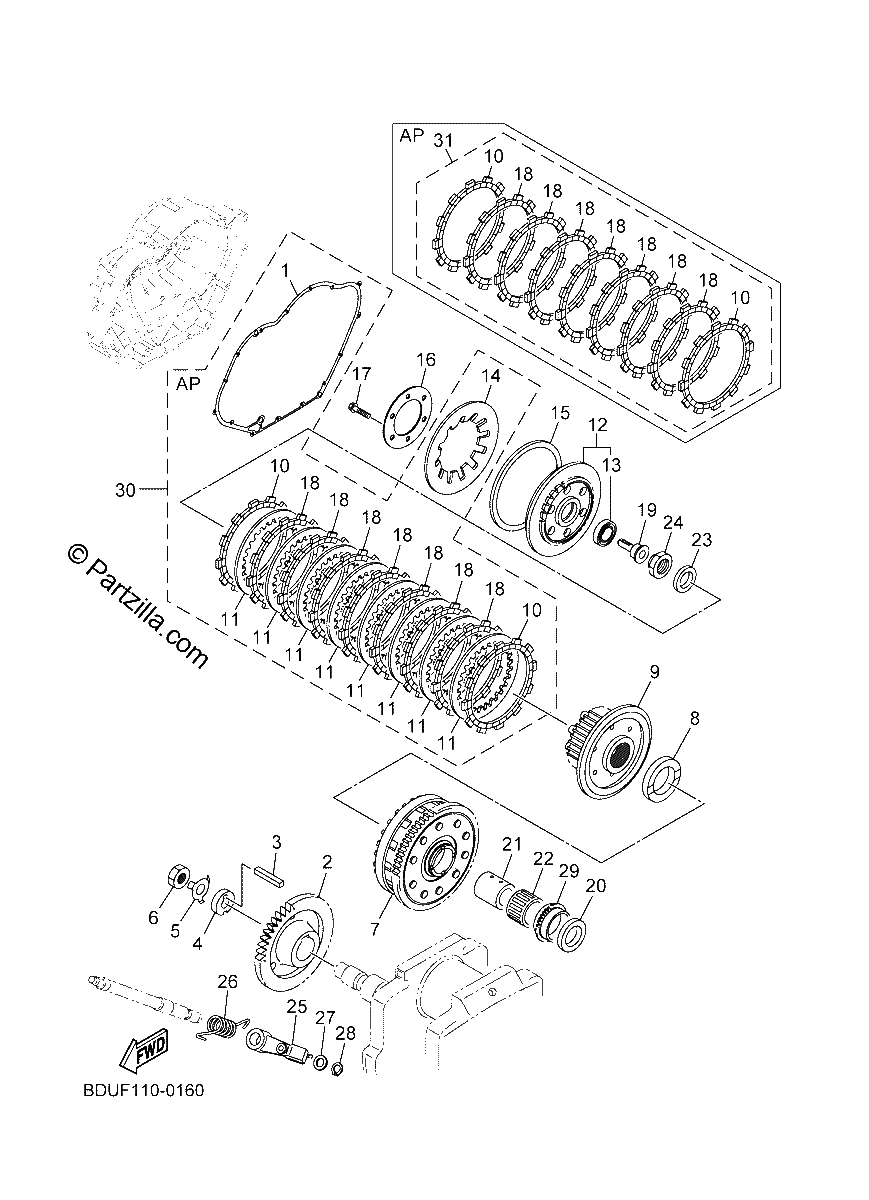

Diagrama de CLUTCH

Repuestos

#1
3D8-15461-00-00
GASKET, CRANKCASE COVER 2
$36.46¢18 231
1
#2
5S7-16111-00-00
GEAR, PRIMARY DRIVE
$314.75¢157 375
1
#3
4WM-16193-00-00
KEY, FEATHER
$8.30¢4 150
1
#4
3D8-16181-10-00
SPACER 1
$56.15¢28 075
1
#5
90215-18003-00
WASHER, LOCK
$10.41¢5 206
1
#6
90170-18008-00
NUT
$14.09¢7 044
1
#7
1TP-16150-00-00
PRIMARY DRIVEN GEAR COMP.
$592.42¢296 213
1
#8
5YU-16154-00-00
PLATE, THRUST 1
$32.67¢16 337
1
#9
3D8-16371-00-00
BOSS, CLUTCH
$184.19¢92 094
1
#10
341-16321-20-00
PLATE, FRICTION
$16.90¢8 450
1
#11
2H7-16325-10-00
PLATE, CLUTCH 2 *{UR (T2.0)}*
$13.54¢6 769
1
#12
3D8-16350-00-00
PRESSURE PLATE ASSY
$125.11¢62 556
1
#13
93306-00304-00
BEARING
$33.26¢16 631
1
#14
5S7-16334-00-00
SPRING, CLUTCH 2
$85.10¢42 550
1
#15
36Y-16335-00-00
HOUSING, SPRING
$37.81¢18 906
1
#16
1TX-16352-00-00
PLATE, PRESSURE 2
$40.00¢20 000
1
#17
97002-06025-00
BOLT
$3.55¢1 775
1
#18
5JW-16321-10-00
PLATE, FRICTION
$31.39¢15 694
1
#19
4XV-16356-01-00
ROD, PUSH 1
$60.88¢30 438
1
#20
3D8-16164-10-00
PLATE, THRUST 2
$67.25¢33 625
1
#21
90387-26006-00
COLLAR
$44.52¢22 263
1
#22
93310-33560-00
BEARING
$37.81¢18 906
1
#23
90208-20001-00
WASHER, CONICAL SPRING
$17.49¢8 744
1
#24
90179-20007-00
NUT
$15.14¢7 569
1
#25
5S7-16340-01-00
PUSH LEVER ASSY
$30.81¢15 406
1
#26
90508-18040-00
SPRING, TORSION
$5.10¢2 550
1
#27
90201-10029-00
WASHER, PLATE
$7.48¢3 738
1
#28
99009-10400-00
CIRCLIP
$4.65¢2 325
1
#29
3D8-13354-10-00
SPROCKET, DRIVE
$104.26¢52 131
1
#30
1TP-W001G-00-00
Clutch Plate Kit
$200.49¢100 244
1
#31
BDT-W001M-00-00
FRICTION PLATE KIT
$119.34¢59 669
1
