COWLING 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

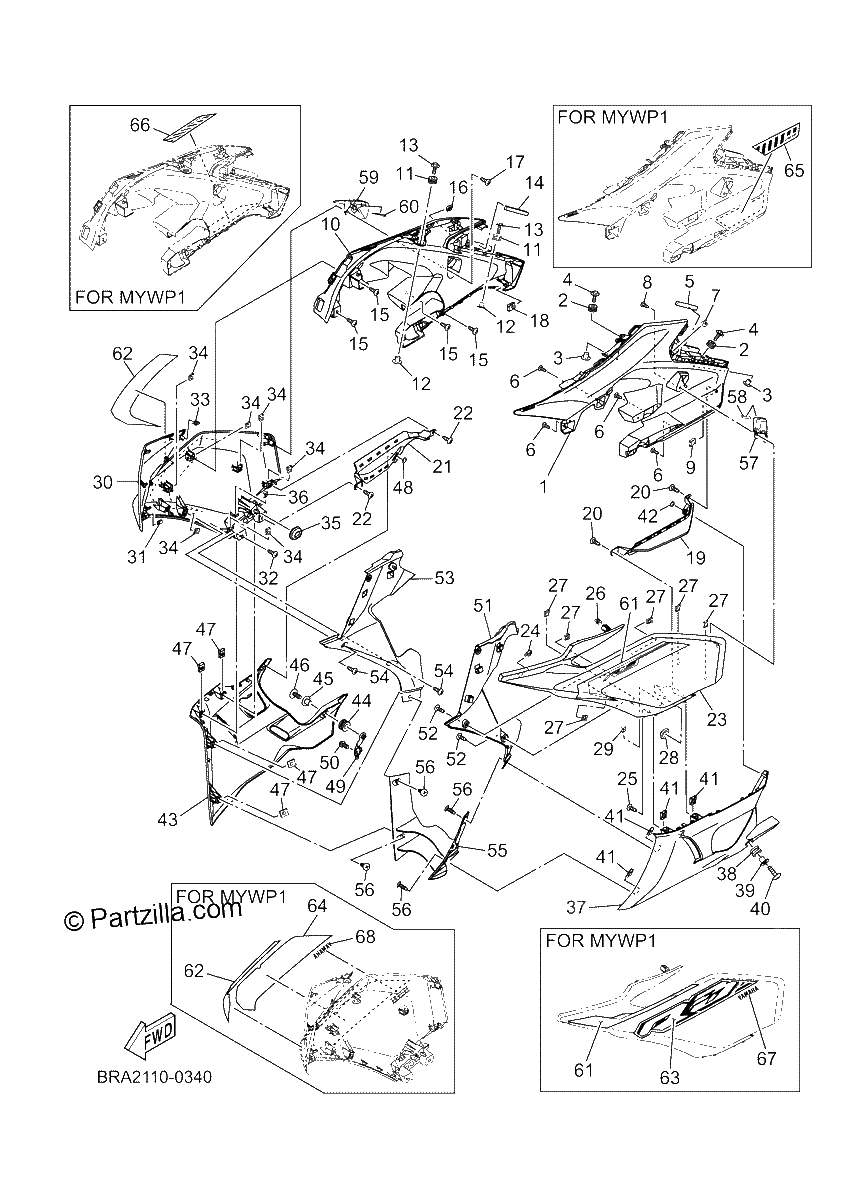

Diagrama de COWLING 1

Repuestos

#1
BRA-F172G-00-P1
PANEL 3 *{GBP1 FOR MYWP1}*
$56.22¢28 112
1
#2
90480-12808-00
GROMMET
$2.71¢1 357
1
#3
90387-06899-00
COLLAR
$2.70¢1 351
1
#4
90119-06810-00
BOLT, WITH WASHER
$3.38¢1 691
1
#5
90520-06013-00
DAMPER, PLATE
$1.05¢523
1
#6
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#7
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#8
90160-05012-00
SCREW, ROUND TAPPING
$6.87¢3 433
1
#9
90183-05807-00
NUT, SPRING
$1.15¢575
1
#10
BRA-F172H-00-P1
PANEL 4 *{GBP1 FOR MYWP1}*
$56.18¢28 089
1
#11
90480-12808-00
GROMMET
$2.71¢1 357
1
#12
90387-06899-00
COLLAR
$2.70¢1 351
1
#13
90119-06810-00
BOLT, WITH WASHER
$3.38¢1 691
1
#14
90520-06013-00
DAMPER, PLATE
$1.05¢523
1
#15
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#16
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#17
90160-05012-00
SCREW, ROUND TAPPING
$6.87¢3 433
1
#18
90183-05807-00
NUT, SPRING
$1.15¢575
1
#19
BS7-F117V-00-00
COVER 7
$15.21¢7 607
1
#20
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#21
BS7-F117W-00-00
COVER 8
$7.38¢3 691
1
#22
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#23
BRA-F835U-01-P2
PANEL 1 *{UR FOR MYWP1}*
$70.28¢35 138
1
#24
44D-F8379-00-00
HOOK
$5.65¢2 823
1
#25
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#26
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#27
90183-05807-00
NUT, SPRING
$1.15¢575
1
#28
90480-01821-00
Grommet
$1.30¢650
1
#29
90464-04004-00
CLAMP
$0.52¢259
1
#30
BRA-F835V-01-P2
PANEL 2 *{UR FOR MYWP1}*
$69.87¢34 937
1
#31
44D-F8379-00-00
HOOK
$5.65¢2 823
1
#32
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#33
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#34
90183-05807-00
NUT, SPRING
$1.15¢575
1
#35
90480-01821-00
Grommet
$1.30¢650
1
#36
90464-04004-00
CLAMP
$0.52¢259
1
#37
BS7-F8385-00-PB
COVER, LOWER *{UR FOR MYWP1}*
$67.33¢33 666
1
#38
90480-12808-00
GROMMET
$2.71¢1 357
1
#39
90387-06899-00
COLLAR
$2.70¢1 351
1
#40
90111-06117-00
BOLT, HEX. SOCKET BUTTON
$1.61¢805
1
#41
90183-05807-00
NUT, SPRING
$1.15¢575
1
#42
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#43
B1X-F8395-00-P7
COVER, UNDER 2 *{UR FOR MYWP1}*
$70.48¢35 242
1
#44
90480-12808-00
GROMMET
$2.71¢1 357
1
#45
90387-06899-00
COLLAR
$2.70¢1 351
1
#46
90111-06117-00
BOLT, HEX. SOCKET BUTTON
$1.61¢805
1
#47
90183-05807-00
NUT, SPRING
$1.15¢575
1
#48
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#49
BS7-F833E-00-00
BRACKET 8
$18.50¢9 252
1
#50
95E32-06012-00
BOLT, FLANGE DEEP RECESS
$0.99¢494
1
#51
BS7-F836K-00-00
PANEL, INNER 1
$12.60¢6 302
1
#52
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#53
BS7-F836L-00-00
PANEL, INNER 2
$9.99¢4 997
1
#54
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#55
B1X-F836M-01-00
PANEL, INNER 3
$26.22¢13 110
1
#56
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#57
BRA-F8396-00-00
PLATE 1
$2.91¢1 455
1
#58
BRA-F8344-00-00
TAPE
$1.62¢811
1
#59
BRA-F8397-00-00
PLATE 2
$2.85¢1 426
1
#60
BRA-F8344-00-00
TAPE
$1.62¢811
1
#61
BRA-F8393-20-00
GRAPHIC 3 *{UR FOR MYWP1}*
$14.54¢7 268
1
#62
BRA-F8394-20-00
GRAPHIC 4 *{UR FOR MYWP1}*
$14.54¢7 268
1
#63
BRA-F8398-00-00
GRAPHIC 5 *{FOR MYWP1}*
$31.53¢15 767
1
#64
BRA-F8399-00-00
GRAPHIC 6 *{FOR MYWP1}*
$31.53¢15 767
1
#65
BRA-F839A-00-00
GRAPHIC 7 *{FOR MYWP1}*
$4.81¢2 403
1
#66
BRA-F839E-00-00
GRAPHIC 8 *{FOR MYWP1}*
$4.81¢2 403
1
#67
BRA-F153E-00-00
EMBLEM, YAMAHA *{FOR MYWP1}*
$1.93¢966
1
#68
BRA-F153E-00-00
EMBLEM, YAMAHA *{FOR MYWP1}*
$1.93¢966
1
