CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

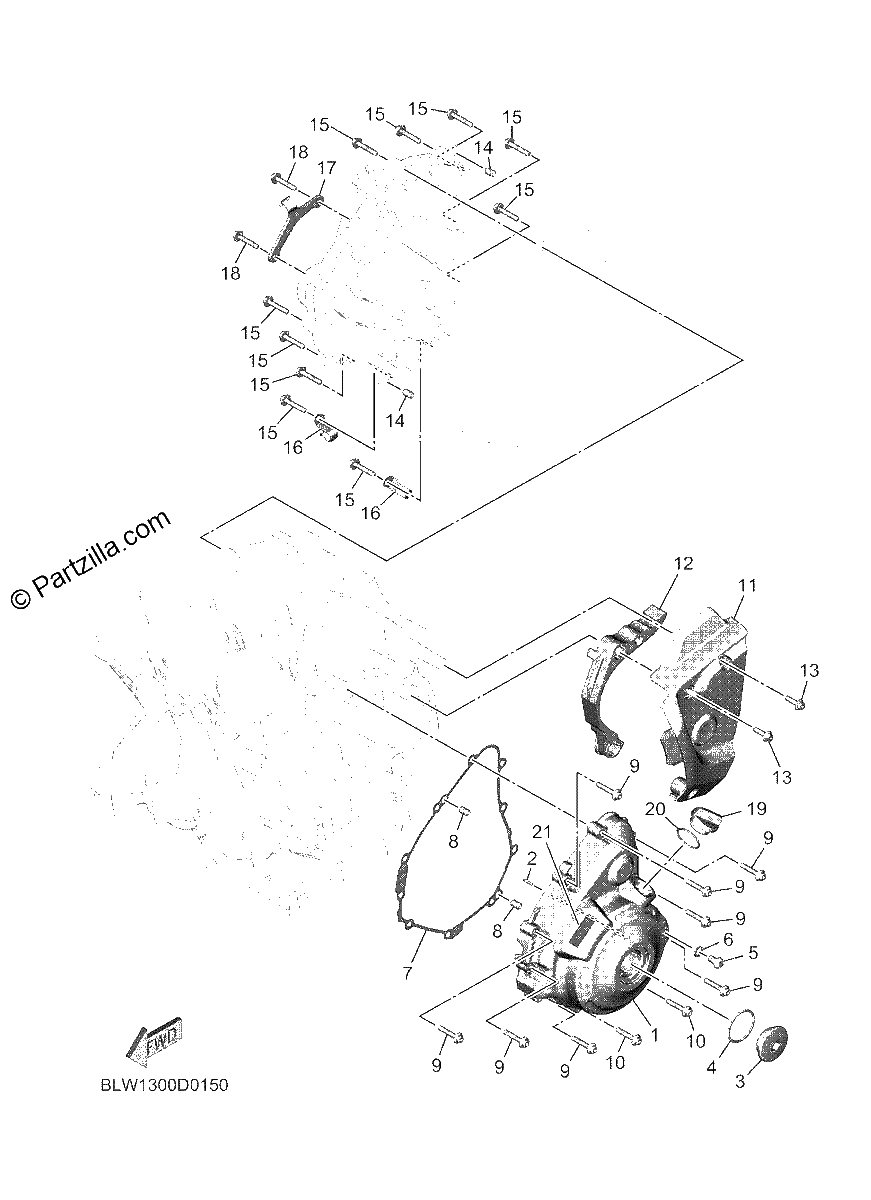

Diagrama de CRANKCASE COVER 1

Repuestos

#1
BLW-15411-00-00
COVER, CRANKCASE 1
$121.39¢60 694
1
#2
99480-03014-00
PIN
$2.56¢1 281
1
#3
90340-36008-00
PLUG, STRAIGHT SCREW
$21.02¢10 513
1
#4
93210-357A3-00
O-RING
$0.59¢294
1
#5
92017-08012-00
BOLT, BUTTON HEAD
$7.35¢3 675
1
#6
90430-08143-00
GASKET
$3.67¢1 838
1
#7
BLW-15451-00-00
GASKET, CRANKCASE COVER 1
$17.99¢8 994
1
#8
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#9
90110-06388-00
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 919
1
#10
90110-06389-00
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 919
1
#11
BLW-15418-00-00
COVER, CHAIN CASE
$31.39¢15 694
1
#12
BLW-15377-00-00
GUIDE, INLET
$34.30¢17 150
1
#13
90110-06396-00
BOLT, HEXAGON SOCKET HEAD
$2.97¢1 487
1
#14
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#15
90110-06388-00
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 919
1
#16
BLW-15484-00-00
CLAMP 2
$7.64¢3 819
1
#17
BLW-15441-00-00
HOLDER, CLUTCH CABLE
$16.29¢8 144
1
#18
90110-06389-00
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 919
1
#19
BAT-15362-00-00
PLUG, OIL LEVEL
$22.93¢11 463
1
#20
93210-27194-00
O-Ring
$8.21¢4 106
1
#21
B5Y-1548B-00-00
OIL, LABEL
$4.95¢2 475
1
