ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

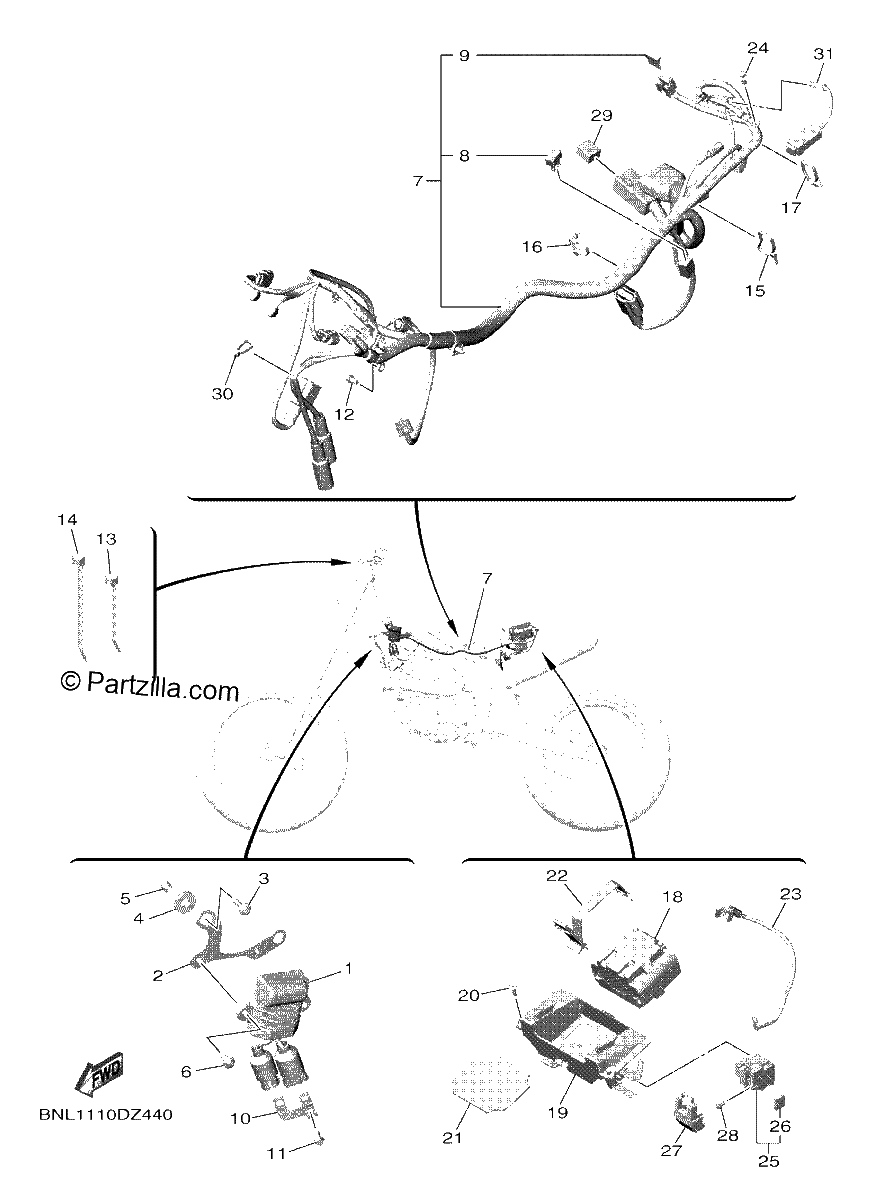

Diagrama de ELECTRICAL 2

Repuestos

#1
B7B-81960-00-00
RECTIFIER & REGULATOR ASSY
$160.76¢80 381
1
#2
BHR-21287-00-00
BRACKET, REGULATOR
$30.70¢15 350
1
#3
90105-06219-00
Bolt, Flange
$2.16¢1 081
1
#4
90480-19283-00
GROMMET
$8.60¢4 300
1
#5
90387-066J9-00
COLLAR
$8.89¢4 444
1
#6
90105-06064-00
Bolt, Flange
$3.17¢1 588
1
#7
BXA-82590-00-00
WIRE HARNESS ASSY
$441.35¢220 675
1
#8
4WA-81980-00-00
DIODE ASSY
$30.92¢15 462
1
#9
1CB-82151-00-00
FUSE (5A-LP BL)
$3.88¢1 938
1
#10
1SL-82388-00-00
PLATE
$4.68¢2 338
1
#11
90105-06110-00
Bolt, Flange
$7.46¢3 731
1
#12
95E32-06010-00
BOLT, FLANGE DEEP RECESS
$0.91¢456
1
#13
90464-13077-00
CLAMP
$7.94¢3 969
1
#14
90464-13073-00
Clamp
$3.30¢1 650
1
#15
90465-13M18-00
CLAMP
$2.17¢1 088
1
#16
90464-31002-00
CLAMP
$4.56¢2 281
1
#17
1UA-82591-00-00
BAND
$4.91¢2 456
1
#18
BR9-82100-A9-00
BATTERY ASSY (TPTAQ 4S1P)
$732.49¢366 244
1
#19
BNK-82128-00-00
BRACKET, BATTERY
$75.84¢37 919
1
#20
90105-06203-00
BOLT, FLANGE
$2.15¢1 075
1
#21
BR9-82176-00-00
Damper
$5.93¢2 963
1
#22
BHR-82131-00-00
BAND, BATTERY
$31.81¢15 906
1
#23
BHR-82115-00-00
WIRE, PLUS LEAD
$27.90¢13 950
1
#24
90105-06064-00
Bolt, Flange
$3.17¢1 588
1
#25
2GB-81940-00-00
STARTER RELAY ASSY (RC19-102B)
$53.90¢26 950
1
#26
36Y-82151-00-00
Fuse (15 Amp)
$4.84¢2 419
1
#27
5SL-82119-10-00
COVER, LEAD WIRE
$4.84¢2 419
1
#28
95022-06008-00
BOLT, FLANGE
$7.46¢3 731
1
#29
5UM-81950-E0-00
RELAY ASSY (5UM-E0)
$21.74¢10 869
1
#30
90465-10098-00
CLAMP
$2.78¢1 388
1
#31
1DX-82718-00-00
RESISTOR ASSY
$91.19¢45 594
1
