STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

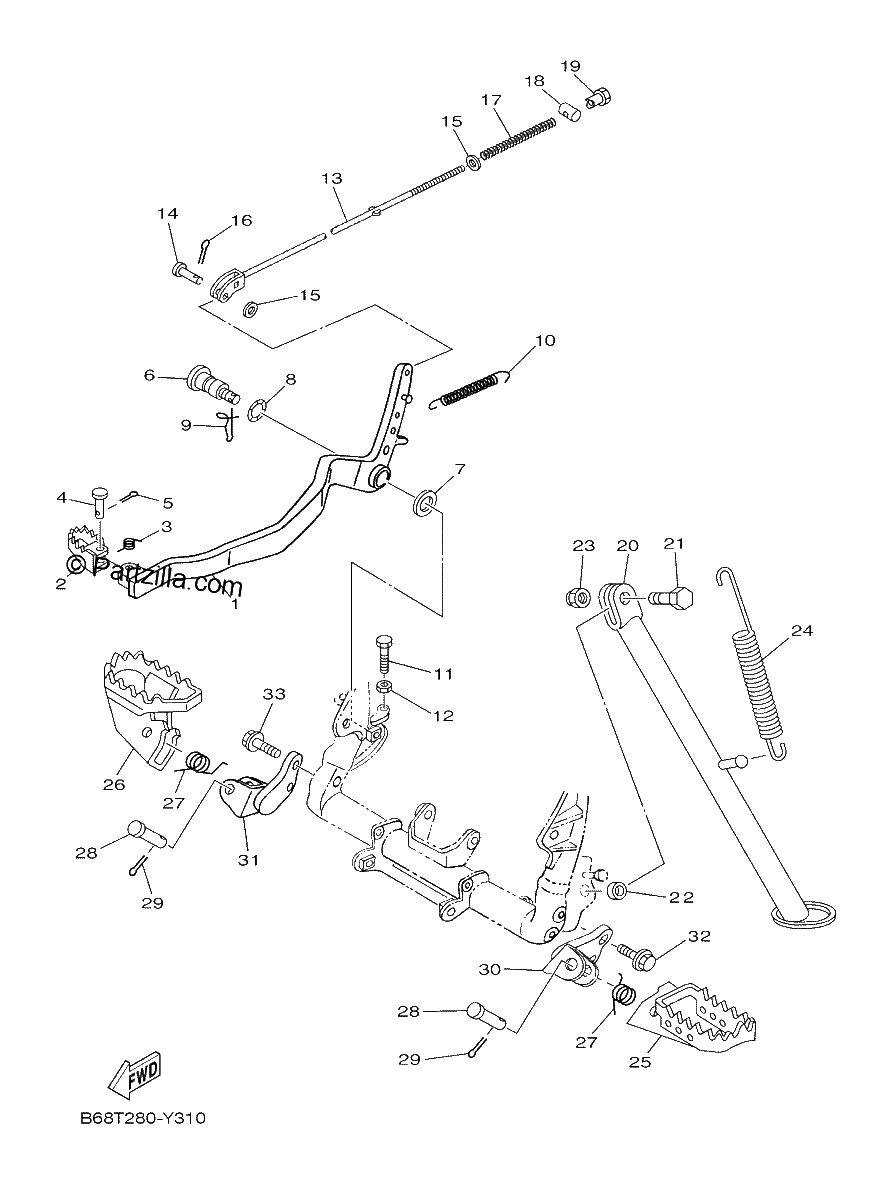

Diagrama de STAND FOOTREST

Repuestos

#1
1C6-F7211-00-00
PEDAL, BRAKE
$67.69¢33 845
1
#2
1B2-F7242-00-00
. PEDAL, BRAKE
$22.49¢11 247
1
#3
90508-14352-00
SPRING, TORSION
$7.56¢3 778
1
#4
91701-06022-00
PIN
$1.99¢995
1
#5
91401-20012-00
PIN, COTTER
$2.02¢1 012
1
#6
2CC-F7261-00-00
SHAFT (replaces 5RM-F7261-00-00)
$11.86¢5 928
1
#7
90201-10135-00
WASHER, PLATE
$7.52¢3 760
1
#8
90206-14001-00
WASHER, WAVE
$8.06¢4 031
1
#9
90468-20196-00
Clip
$0.59¢293
1
#10
90506-18804-00
SPRING, TENSION
$3.06¢1 529
1
#11
9700M-06016-00
BOLT
$6.76¢3 381
1
#12
9530M-06700-00
NUT
$7.31¢3 657
1
#13
1C6-F7231-00-00
ROD, BRAKE
$18.31¢9 154
1
#14
91701-06020-00
PIN
$2.63¢1 317
1
#15
9290L-06200-00
WASHER
$0.89¢443
1
#16
91401-20012-00
PIN, COTTER
$2.02¢1 012
1
#17
90501-10802-00
SPRING, COMPRESSION
$0.91¢454
1
#18
90249-12800-00
PIN
$6.75¢3 375
1
#19
90179-06W21-00
Nut
$1.54¢771
1
#20
1C6-F7311-01-00
STAND, SIDE
$70.17¢35 087
1
#21
90101-10805-00
BOLT
$7.51¢3 755
1
#22
90387-10003-00
Collar
$23.36¢11 678
1
#23
90185-10037-00
NUT,SELF-LOCKING
$7.30¢3 651
1
#24
90506-35805-00
SPRING, TENSION
$9.56¢4 778
1
#25
1B2-F7411-00-00
FOOTREST 1
$33.61¢16 807
1
#26
1C6-F7421-00-00
FOOTREST 2
$33.33¢16 664
1
#27
90508-28777-00
SPRING,TORSION
$6.22¢3 111
1
#28
90240-10117-00
PIN,CLEVIS
$12.55¢6 273
1
#29
91401-25015-00
PIN, COTTER
$3.32¢1 662
1
#30
1C6-F7412-01-00
BRACKET, FOOTREST 1
$29.77¢14 887
1
#31
1C6-F7422-01-00
BRACKET, FOOTREST 2
$88.29¢44 143
1
#32
9502M-10025-00
BOLT, FLANGE
$7.59¢3 795
1
#33
9502M-10025-00
BOLT, FLANGE
$7.59¢3 795
1
