FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

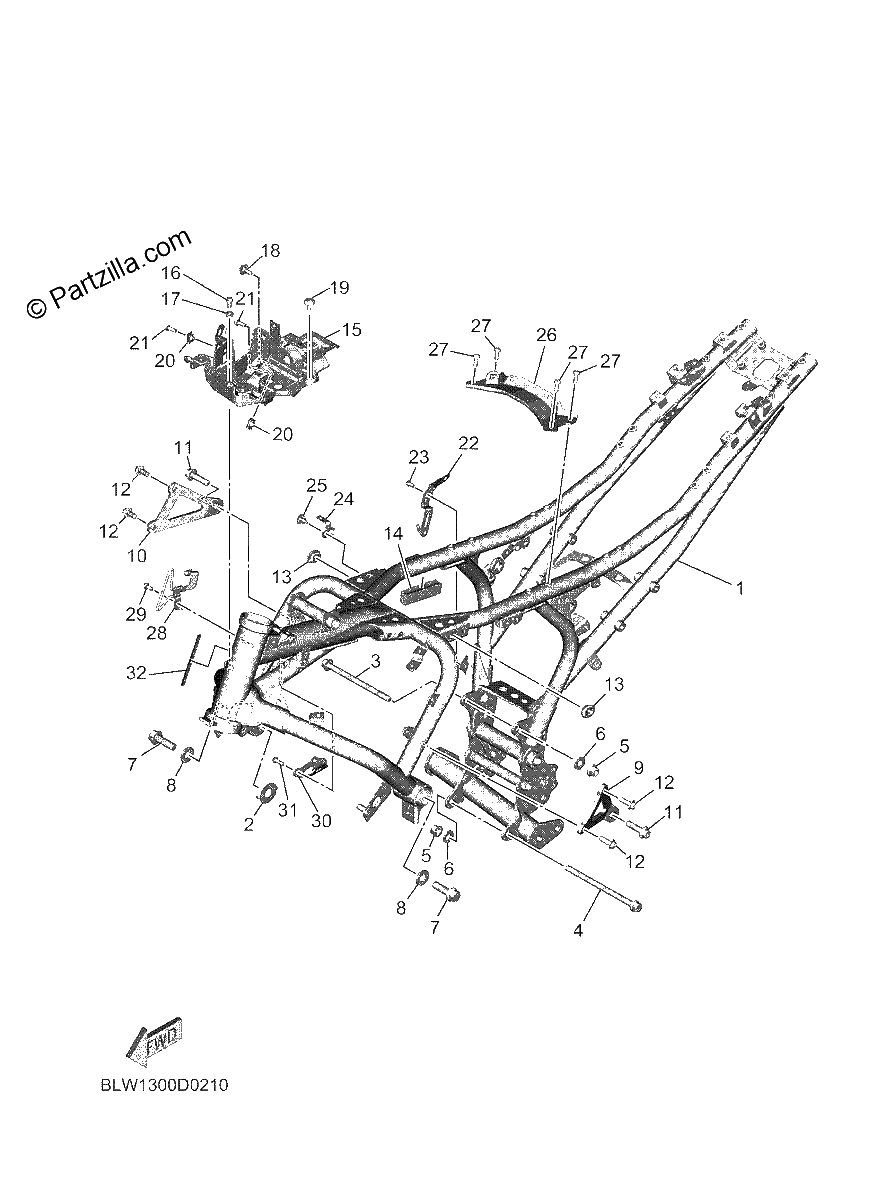

Diagrama de FRAME

Repuestos

#1
BLW-21110-10-00
FRAME COMP.
$1749.99¢874 994
1
#2
1WS-2191B-00-00
PLATE 1
$18.85¢9 425
1
#3
90105-10219-00
Bolt, Flange
$6.84¢3 419
1
#4
90105-10349-00
BOLT, FLANGE
$16.18¢8 088
1
#5
90179-10024-00
NUT
$10.46¢5 231
1
#6
90201-10035-00
WASHER, plate
$4.25¢2 125
1
#7
90105-12092-00
BOLT, FLANGE
$14.14¢7 069
1
#8
90201-13020-00
WASHER, PLATE
$3.61¢1 806
1
#9
BLW-21315-00-00
STAY, ENGINE 1
$30.72¢15 362
1
#10
BLW-21316-00-00
STAY, ENGINE 2
$33.50¢16 750
1
#11
90110-10044-00
BOLT, HEXAGON SOCKET HEAD
$4.91¢2 456
1
#12
90110-08111-00
BOLT, HEXAGON SOCKET HEAD
$3.47¢1 737
1
#13
90480-01559-00
Grommet
$5.72¢2 863
1
#14
90520-20022-00
DAMPER, PLATE
$4.75¢2 375
1
#15
BLW-21596-00-00
HOLDER
$24.34¢12 169
1
#16
95027-06014-00
BOLT, FLANGE
$0.91¢456
1
#17
90387-06173-00
COLLAR
$7.69¢3 844
1
#18
90109-06043-00
BOLT
$2.75¢1 375
1
#19
90109-06172-00
BOLT
$3.23¢1 613
1
#20
90183-060A6-00
NUT, SPRING
$4.97¢2 488
1
#21
95027-06014-00
BOLT, FLANGE
$0.91¢456
1
#22
1WS-2161J-00-00
BRACKET 8
$6.52¢3 262
1
#23
92012-06010-00
BOLT, BUTTON HEAD
$2.91¢1 456
1
#24
BLW-2175U-00-00
BRACKET 2
$8.41¢4 206
1
#25
90269-07077-00
RIVET
$8.25¢4 125
1
#26
BLW-2115L-00-00
BRACKET, MEMBER 1
$61.78¢30 888
1
#27
92012-06016-00
BOLT, BUTTON HEAD
$7.41¢3 706
1
#28
BLW-21288-00-00
GUIDE, CABLE
$28.56¢14 281
1
#29
95027-06010-00
BOLT,FLANGE(4MY)
$2.95¢1 475
1
#30
BLW-2141G-00-00
BRKT., 4
$15.40¢7 700
1
#31
92012-06016-00
BOLT, BUTTON HEAD
$7.41¢3 706
1
#32
3HA-24141-00-00
PROTECTOR, FUEL TANK
$13.71¢6 856
1
