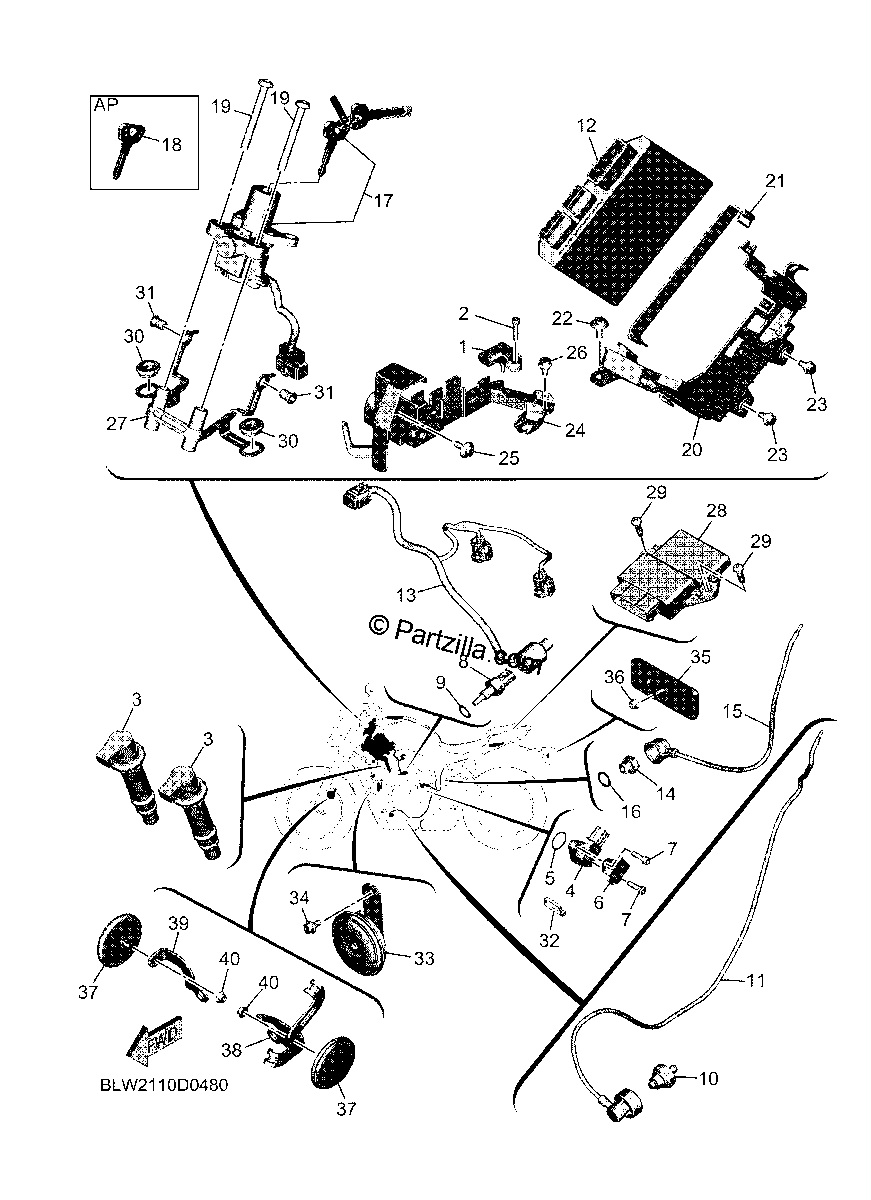

ELECTRICAL 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
Sensor, Pressure
$187.39¢93 696
#2
BOLT
$2.71¢1 357
#3
IGNITION COIL ASSY
$97.99¢48 996
#4
SENSOR, GEAR POSITION
$83.51¢41 757
#5
O-RING
$1.99¢995
#6
PLATE
$7.57¢3 783
#7
BOLT, HEXAGON SOCKET HEAD
$2.71¢1 357
#8
THERMO UNIT
$31.65¢15 824
#9
GASKET
$6.51¢3 254
#10
OIL PRESSURE SWITCH ASSY
$66.99¢33 494
#11
LEAD WIRE ASSY
$18.24¢9 119
#12
ENGINE CONTROL UNIT ASSY *{FOR U49}*
$925.74¢462 869
#13
WIRE, SUB LEAD
$55.71¢27 853
#14
NEUTRAL SWITCH ASSY
$26.54¢13 271
#15
WIRE, SUB LEAD
$81.82¢40 911
#16
WASHER, PLATE
$7.51¢3 755
#17
MAIN SWITCH STEERING LOCK
$180.86¢90 430
#18
BLANK KEY | AP
$26.78¢13 392
#19
BOLT, HEXAGON SOCKET BUTTON
$8.76¢4 382
#20
HOLDER, LEVER UNDER
$25.98¢12 989
#21
BAND, BATTERY
$23.89¢11 943
#22
BOLT
$2.52¢1 259
#23
bolt
$6.99¢3 496
#24
HOLDER, RELAY
$23.94¢11 971
#25
BOLT
$2.97¢1 483
#26
bolt
$6.99¢3 496
#27
STAY, MAIN SWITCH
$58.96¢29 480
#28
BODY CONT,MODULE ASSY
$440.54¢220 271
#29
SCREW, TAPPING
$7.30¢3 651
#30
Grommet
$4.31¢2 156
#31
NUT
$6.23¢3 117
#32
CLAMP
$1.10¢552
#33
HORN
$52.38¢26 191
#34
BOLT, FLANGE
$1.64¢822
#35
Rear Reflector
$24.91¢12 455
#36
NUT, SELF-LOCKING
$7.51¢3 755
#37
REFLECTOR, REAR 1
$11.74¢5 871
#38
BRACKET, REFLECTOR 1
$24.66¢12 328
#39
BRACKET, REFLECTOR 2
$8.63¢4 313
#40
NUT,FLANGE (SILVER)
$0.84¢420
