HEADLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

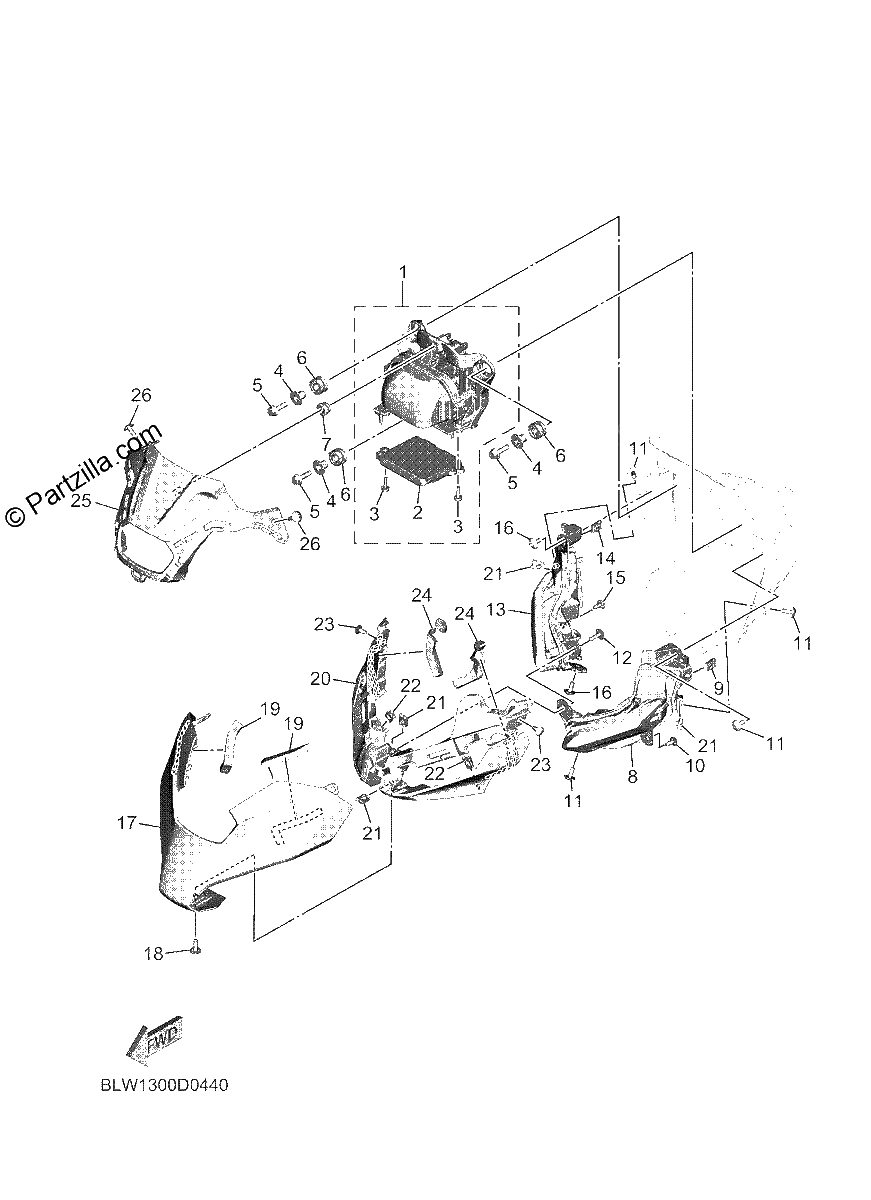

Diagrama de HEADLIGHT

Repuestos

#1
BME-84300-00-00
HEADLIGHT ASSY
$516.34¢258 169
1
#2
BME-85490-00-00
LIGHT CONTROL UNIT
$389.34¢194 672
1
#3
2PW-84192-00-00
SCREW, SPECIAL
$1.97¢983
1
#4
90387-06161-00
Collar
$6.83¢3 415
1
#5
95822-06020-00
Bolt, Flange
$3.05¢1 524
1
#6
4XV-83513-00-00
DAMPER
$7.01¢3 507
1
#7
90480-10003-00
GROMMET
$6.88¢3 439
1
#8
BLW-84301-00-00
PILOT LIGHT ASSY 1
$205.72¢102 862
1
#9
90183-05042-00
NUT, SPRING
$1.15¢575
1
#10
97707-50012-00
SCREW, TRUSS HEAD TAPPING
$3.54¢1 771
1
#11
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$5.69¢2 846
1
#12
90111-05034-00
BOLT, HEX. SOCKET BUTTON
$6.83¢3 415
1
#13
BLW-84302-00-00
PILOT LIGHT ASSY 2
$205.72¢102 862
1
#14
90183-05042-00
NUT, SPRING
$1.15¢575
1
#15
97707-50012-00
SCREW, TRUSS HEAD TAPPING
$3.54¢1 771
1
#16
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$5.69¢2 846
1
#17
BLW-2838E-00-P2
COVER, HEADLIGHT *{UR FOR MDNMD}*
$88.53¢44 264
1
#18
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.44¢2 720
1
#19
90520-10023-00
DAMPER, PLATE
$1.41¢707
1
#20
BLW-23122-00-00
COVER, OUTER 1
$27.69¢13 846
1
#21
90183-05076-00
NUT, SPRING
$2.60¢1 299
1
#22
90183-05042-00
NUT, SPRING
$1.15¢575
1
#23
97707-50012-00
SCREW, TRUSS HEAD TAPPING
$3.54¢1 771
1
#24
90520-10023-00
DAMPER, PLATE
$1.41¢707
1
#25
BLW-84369-00-00
COVER 1
$20.80¢10 402
1
#26
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.44¢2 720
1
