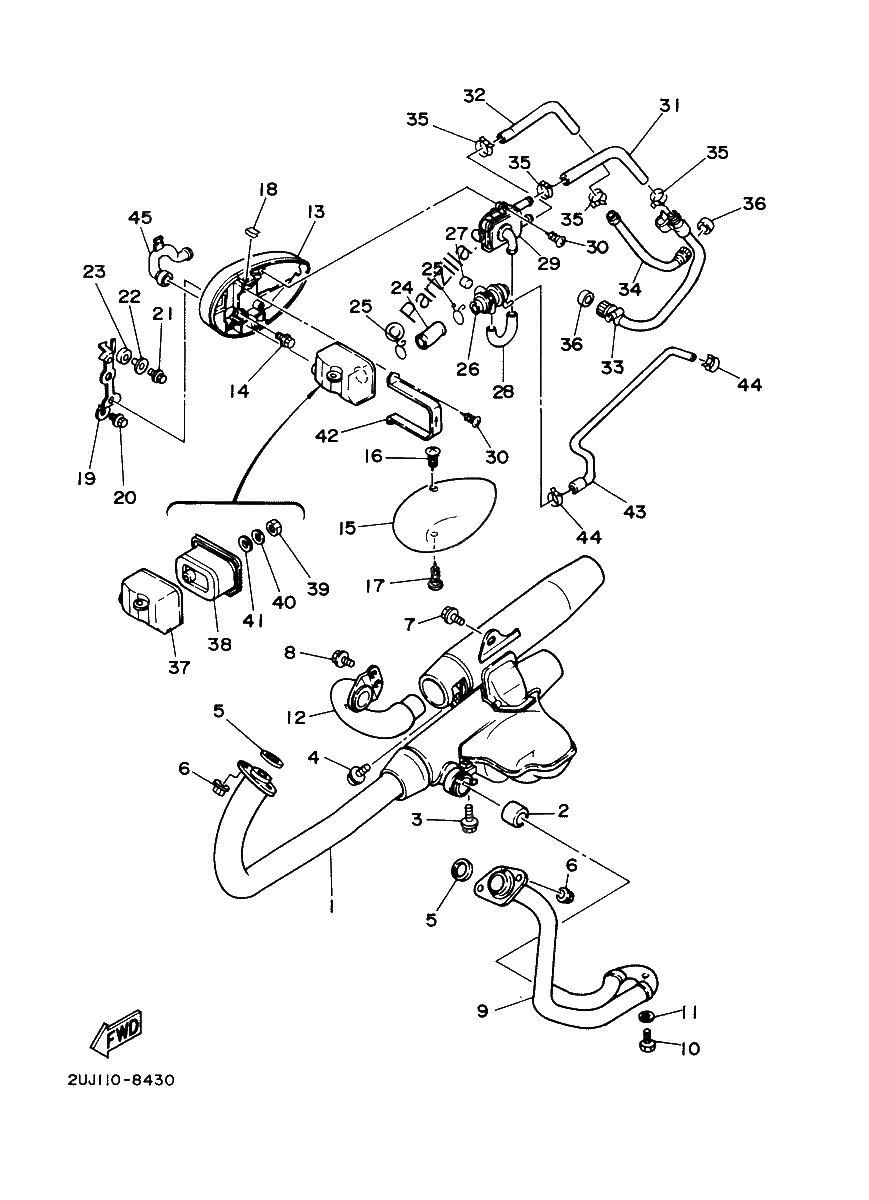

EXHAUST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
MUFFLER COMP. 1
$1211.24¢605 619
#2
GASKET, MUFFLER
$21.23¢10 613
#3
BOLT,FLANGE (replaces 90105-08108-00)
$7.94¢3 969
#4
BOLT, FLANGE
$0.69¢344
#5
GASKET, EXHAUST PIPE
$7.88¢3 938
#6
NUT
$7.34¢3 669
#7
BOLT, FLANGE
$2.09¢1 044
#8
BOLT, FLANGE
$4.72¢2 363
#9
PIPE, EXHAUST 2
$216.36¢108 181
#10
BOLT
$7.70¢3 850
#11
WASHER, PLATE
$3.40¢1 700
#12
PIPE, EXHAUST 3
No Disponible
#13
PLATE, AIR CLEANER
$72.29¢36 144
#14
BOLT, FLANGE
$3.31¢1 656
#15
COVER 1
$148.41¢74 206
#16
SCREW, TAPPING
$1.57¢788
#17
SCREW, TAPPING
$6.91¢3 456
#18
NUT, SPRING
$2.26¢1 131
#19
PLATE, CLEANER CASE FITTING
$39.44¢19 719
#20
BOLT,FLANGE
$4.65¢2 325
#21
BOLT, FLANGE
$0.69¢344
#22
COLLAR
$9.22¢4 613
#23
BUSH
$7.67¢3 838
#24
HOSE, BEND 2
$14.31¢7 156
#25
CLIP
$5.10¢2 550
#26
AIR CUT VALVE ASSY
$232.88¢116 438
#27
PLUG
$3.14¢1 569
#28
HOSE, BEND 3
$12.05¢6 025
#29
Reed Valve Assy
$341.15¢170 575
#30
SCREW, TAPPING
No Disponible
#31
HOSE, BEND 4
$19.07¢9 538
#32
HOSE, BEND 5
$21.84¢10 919
#33
PIPE 3
$165.29¢82 644
#34
PIPE 4
$53.96¢26 981
#35
CLIP
$3.25¢1 625
#36
GASKET, MUFFLER
$24.86¢12 431
#37
CASE, AIR CLEANER
$13.74¢6 869
#38
CAP, CASE
$61.06¢30 531
#39
NUT
$1.35¢675
#40
WASHER
$4.88¢2 438
#41
WASHER, PLATE
$3.01¢1 506
#42
BRACKET
$52.76¢26 381
#43
HOSE, VACUUM SENSING 1
$25.49¢12 744
#44
CLIP,SCISSOR
$8.45¢4 225
#45
HOSE, BEND 1
$32.36¢16 181
