ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

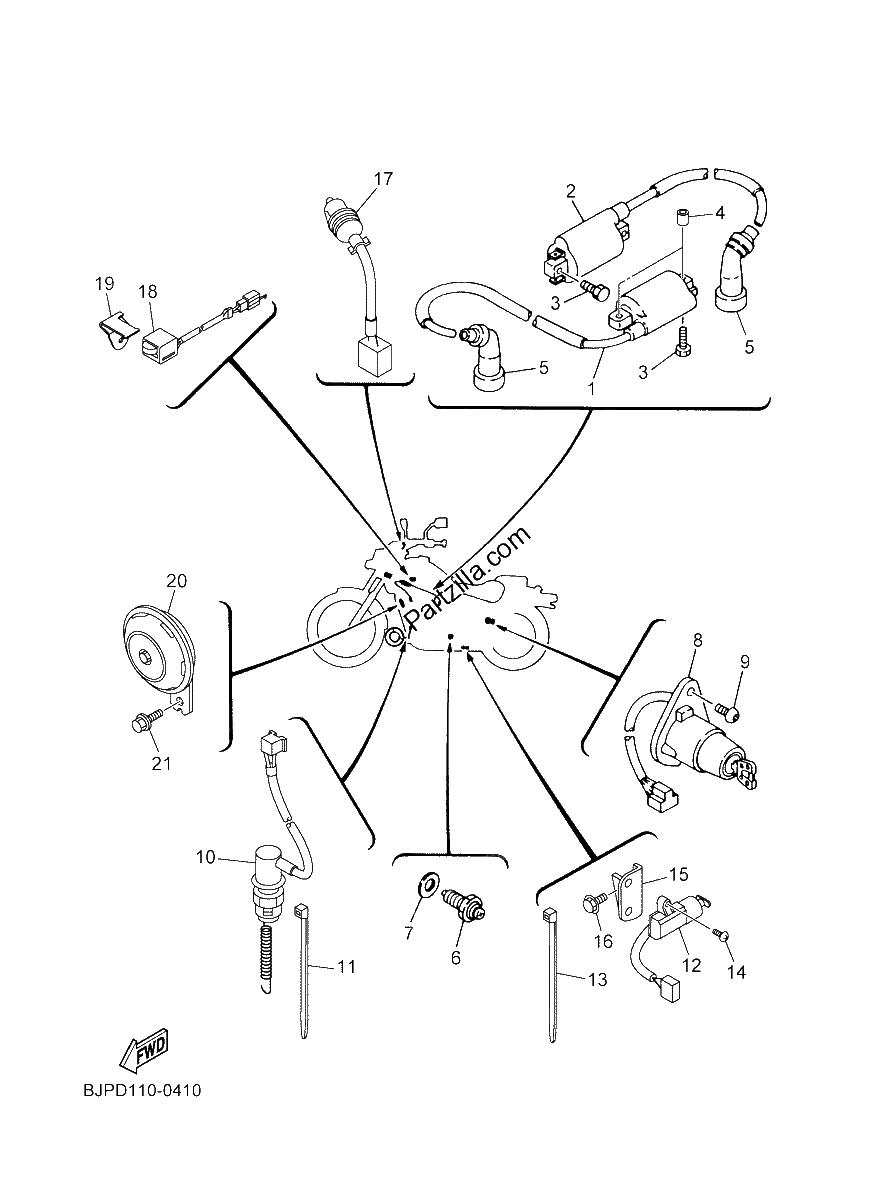

Diagrama de ELECTRICAL 2

Repuestos

#1
2UJ-82310-02-00
IGNITION COIL ASSY
$42.78¢21 390
1
#2
2UJ-82320-01-00
IGNITION COIL ASSY
$42.78¢21 390
1
#3
97007-05020-00
BOLT
$2.71¢1 357
1
#4
90445-070K7-00
HOSE (L10)
$5.89¢2 944
1
#5
1UY-82370-20-00
PLUG CAP ASSY
$35.58¢17 790
1
#6
4KM-82540-00-00
NEUTRAL SWITCH ASSY
$36.73¢18 366
1
#7
90430-10148-00
Gasket
$5.21¢2 605
1
#8
46B-82510-00-00
MAIN SWITCH ASSY
$231.76¢115 880
1
#9
90149-06228-00
SCREW,SPEC'L SHAPE
$6.88¢3 439
1
#10
5PW-82530-01-00
STOP SWITCH ASSY
$29.22¢14 611
1
#11
90464-16061-00
BAND
$7.68¢3 841
1
#12
3LD-82566-61-00
SWITCH, SIDE STAND
$54.68¢27 341
1
#13
90464-16061-00
BAND
$7.68¢3 841
1
#14
90157-05079-00
SCREW, PAN HEAD
$5.76¢2 881
1
#15
2UJ-82565-00-00
PANEL, SWITCH
$17.04¢8 522
1
#16
95827-06010-00
BOLT, FLANGE
$4.28¢2 139
1
#17
19D-83980-10-00
FRONT STOP SWITCH ASSY
$40.72¢20 361
1
#18
5FU-82560-40-00
THERMO SWITCH ASSY
$22.77¢11 385
1
#19
3BG-82571-00-00
PANEL, SWITCH
$5.11¢2 553
1
#20
1HX-83371-11-00
HORN
$39.55¢19 774
1
#21
95807-06010-00
BOLT,FLANGE
$4.28¢2 139
1
