CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

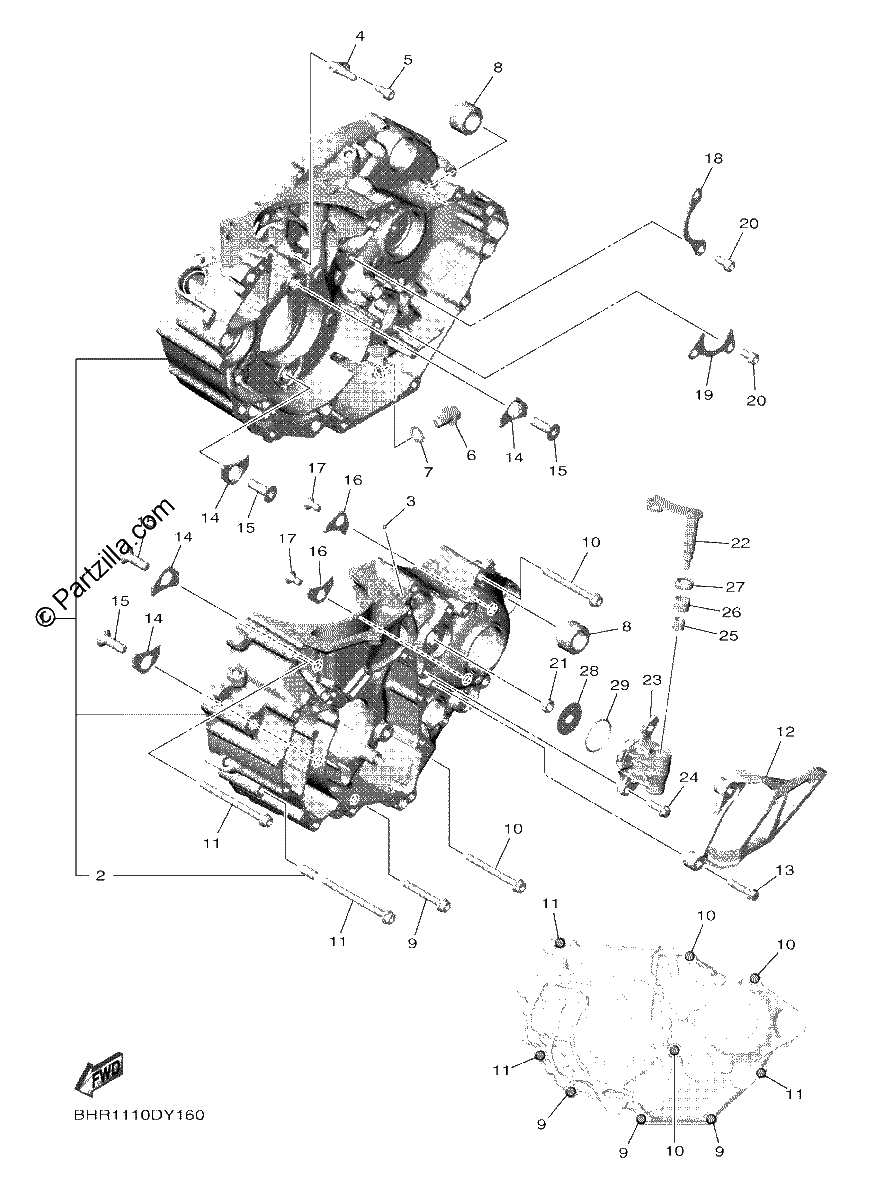

Diagrama de CRANKCASE

Repuestos

#1
BHR-15100-07-00
CRANKCASE ASSY
$2066.24¢1 033 119
1
#2
99530-08016-00
PIN, DOWEL
$6.71¢3 356
1
#3
BHR-15148-00-00
NOZZLE 2
$8.11¢4 056
1
#4
BHR-15155-00-00
NOZZLE 3
$35.06¢17 531
1
#5
90110-06182-00
BOLT
$7.34¢3 669
1
#6
95E32-10016-00
BOLT, FLANGE DEEP RECESS
$1.57¢788
1
#7
90430-10188-00
Gasket
$7.36¢3 681
1
#8
90387-17020-00
COLLAR
$19.85¢9 925
1
#9
90110-06391-00
BOLT, HEXAGON SOCKET HEAD
$2.11¢1 056
1
#10
90110-06363-00
BOLT, HEXAGON SOCKET HEAD
$2.99¢1 494
1
#11
90110-06392-00
BOLT, HEXAGON SOCKET HEAD
$3.74¢1 869
1
#12
BHR-15421-01-00
COVER, CRANKCASE 2
$26.35¢13 175
1
#13
90105-06189-00
Bolt, Flange
$7.34¢3 669
1
#14
18P-15383-00-00
PLATE, BEARING COVER
$8.03¢4 013
1
#15
90151-08009-00
SCREW, COUNTERSUNK
$6.60¢3 300
1
#16
4JT-15381-01-00
PLATE, BEARING COV
$12.54¢6 269
1
#17
90151-06053-00
SCREW
$7.60¢3 800
1
#18
5NL-15388-00-00
PLATE, BEARING COVER
$7.97¢3 988
1
#19
33D-18562-00-00
PLATE, STOPPER 2
$4.94¢2 469
1
#20
90110-06182-00
BOLT
$7.34¢3 669
1
#21
93104-06033-00
OIL SEAL
$7.08¢3 538
1
#22
BHR-16381-00-00
PUSH LEVER COMP
$76.59¢38 294
1
#23
BHR-16386-00-00
PIECE, CLUTH PUSH
$99.70¢49 850
1
#24
90105-06187-00
BOLT, FLANGE
$3.96¢1 981
1
#25
93317-106B4-00
BEARING
$7.52¢3 762
1
#26
93317-11096-00
BEARING
$23.80¢11 900
1
#27
93102-10008-00
Oil Seal
$5.54¢2 769
1
#28
90201-08037-00
WASHER, PLATE
$4.40¢2 200
1
#29
93210-28543-00
O-RING
$3.38¢1 688
1
