EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

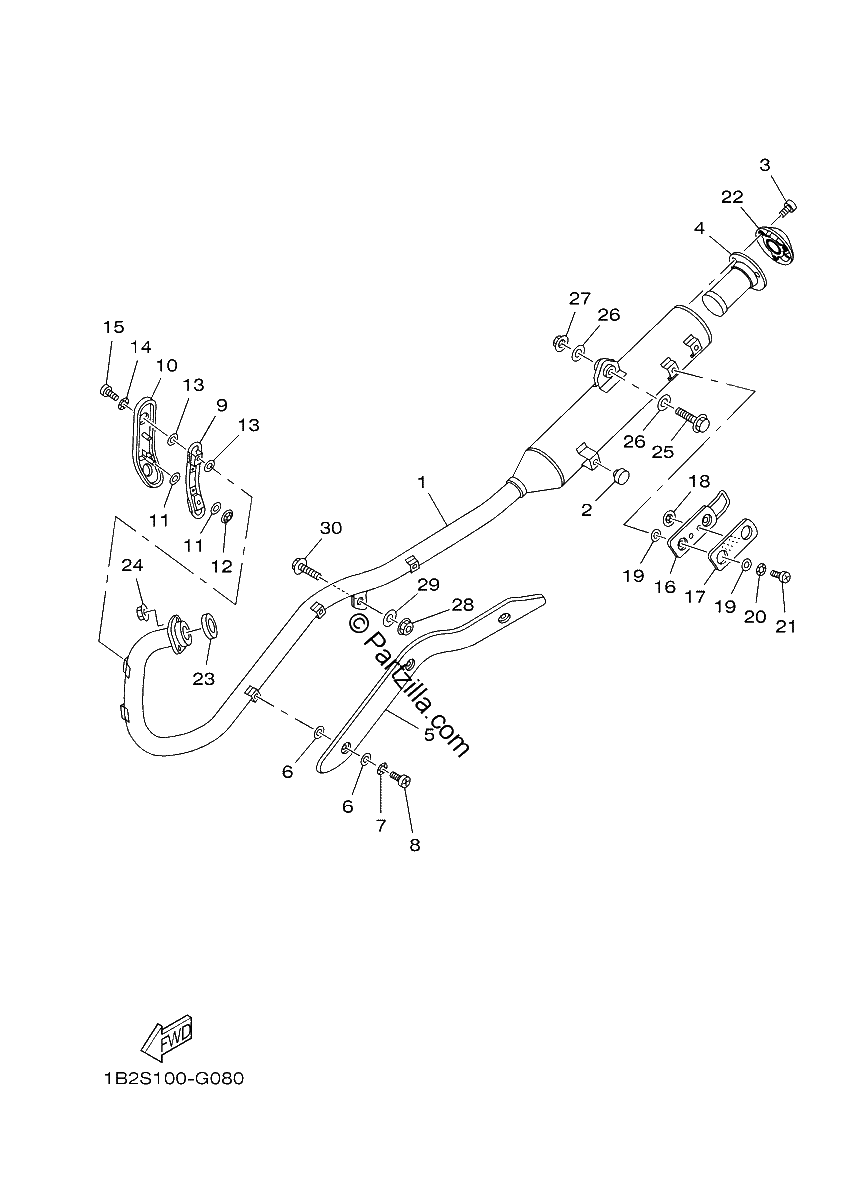

Diagrama de EXHAUST

Repuestos

#1
1B2-E4711-20-00
MUFFLER 1
$869.39¢434 694
1
#2
22W-24181-00-00
DAMPER, LOCATING 1
$6.30¢3 151
1
#3
91314-06012-00
BOLT, HEXAGON SOCKET HEAD
$7.30¢3 651
1
#4
1B2-14780-00-00
SPARK ARRESTER ASSY
$83.18¢41 590
1
#5
1B2-E4628-00-00
PROTECTOR, EXHAUST
$80.53¢40 267
1
#6
4BD-E4766-00-00
WASHER, PROTECTOR
$6.01¢3 007
1
#7
90206-06090-00
WASHER, WAVE
$5.75¢2 875
1
#8
98980-06008-00
SCREW,BIND
$0.67¢333
1
#9
1B2-E4628-10-00
PROTECTOR, EXHAUST
$20.40¢10 200
1
#10
1B2-E479H-00-00
COVER, 1
$2.14¢1 070
1
#11
4BD-E4766-00-00
WASHER, PROTECTOR
$6.01¢3 007
1
#12
90183-04047-00
NUT, SPRING
$0.84¢420
1
#13
4BD-E4766-00-00
WASHER, PROTECTOR
$6.01¢3 007
1
#14
90206-06090-00
WASHER, WAVE
$5.75¢2 875
1
#15
98980-06008-00
SCREW,BIND
$0.67¢333
1
#16
1B2-E4758-00-00
PROTECTOR, SILENCER
$38.96¢19 481
1
#17
1B2-E479J-00-00
COVER 2
$17.34¢8 671
1
#18
90183-04047-00
NUT, SPRING
$0.84¢420
1
#19
4BD-E4766-00-00
WASHER, PROTECTOR
$6.01¢3 007
1
#20
90206-06090-00
WASHER, WAVE
$5.75¢2 875
1
#21
98980-06008-00
SCREW,BIND
$0.67¢333
1
#22
1B2-14787-00-00
CAP, SILENCER
$217.86¢108 928
1
#23
4BR-14613-00-00
GASKET,EXST PIPE
$6.14¢3 070
1
#24
9560M-06200-00
NUT, U FLANGE
$2.58¢1 288
1
#25
9581M-10040-00
Bolt, Flange
$3.96¢1 978
1
#26
90201-101J1-00
WASHER, PLATE
$6.75¢3 375
1
#27
90185-10002-00
NUT, SELF-LOCKING
$6.69¢3 347
1
#28
90179-08820-00
NUT
$2.37¢1 185
1
#29
90201-087A9-00
WASHER, PLATE
$4.09¢2 047
1
#30
90105-08893-00
BOLT, FLANGE
$7.31¢3 657
1
