FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

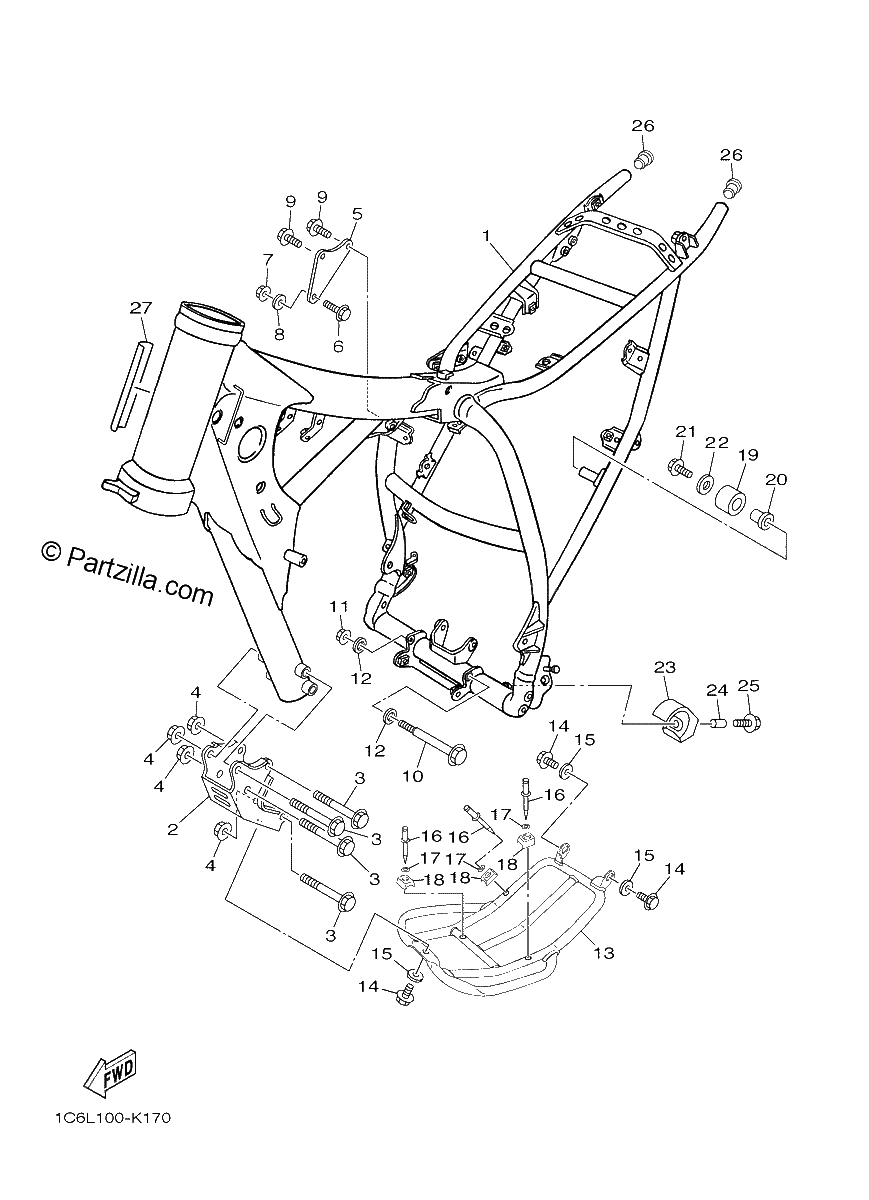

Diagrama de FRAME

Repuestos

#1
D25-F1110-00-00
FRAME COMP
$1522.49¢761 244
1
#2
1C6-F1316-10-00
STAY, ENGINE 2
$121.65¢60 825
1
#3
90105-08852-00
Bolt, Flange
$4.85¢2 425
1
#4
95607-08200-00
NUT, SELF-LOCKING
$8.45¢4 225
1
#5
1C6-F1315-00-00
STAY, ENGINE 2
$2.33¢1 163
1
#6
9581M-08055-00
BOLT, FLANGE
$3.36¢1 681
1
#7
95607-08200-00
NUT, SELF-LOCKING
$8.45¢4 225
1
#8
90201-09801-00
WASHER, plate
$2.79¢1 394
1
#9
90105-08846-00
BOLT, FLANGE
$3.74¢1 869
1
#10
90105-08856-00
Bolt, Flange
$5.80¢2 900
1
#11
95607-08200-00
NUT, SELF-LOCKING
$8.45¢4 225
1
#12
90201-09801-00
WASHER, plate
$2.79¢1 394
1
#13
1C6-F1471-00-00
Protector, Engine
$114.04¢57 019
1
#14
9581M-10020-00
BOLT, FLANGE
$6.25¢3 125
1
#15
90201-101J1-00
WASHER, PLATE
$7.34¢3 669
1
#16
90267-40076-00
RIVET, BLIND
$7.34¢3 669
1
#17
90201-042E0-00
WASHER,PLATE
$7.86¢3 931
1
#18
1C6-F1485-00-00
DAMPER, RUBBER 1
$1.46¢731
1
#19
5RM-F2178-00-00
TENSIONER
$9.31¢4 656
1
#20
5RM-F2184-00-00
Bush
$1.74¢869
1
#21
9502M-08012-00
BOLT, FLANGE
$8.21¢4 106
1
#22
90201-08753-00
WASHER, PLATE
$7.52¢3 762
1
#23
1B2-F2178-00-00
TENSIONER
$20.41¢10 206
1
#24
90387-060A3-00
COLLAR
$8.60¢4 300
1
#25
90119-06118-00
BOLT, WITH WASHER
$7.34¢3 669
1
#26
90338-16148-00
PLUG,SPEC'L SHAPE
$11.81¢5 906
1
#27
30S-24141-00-00
PROTECTOR, FUEL TANK
$4.59¢2 294
1
