CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

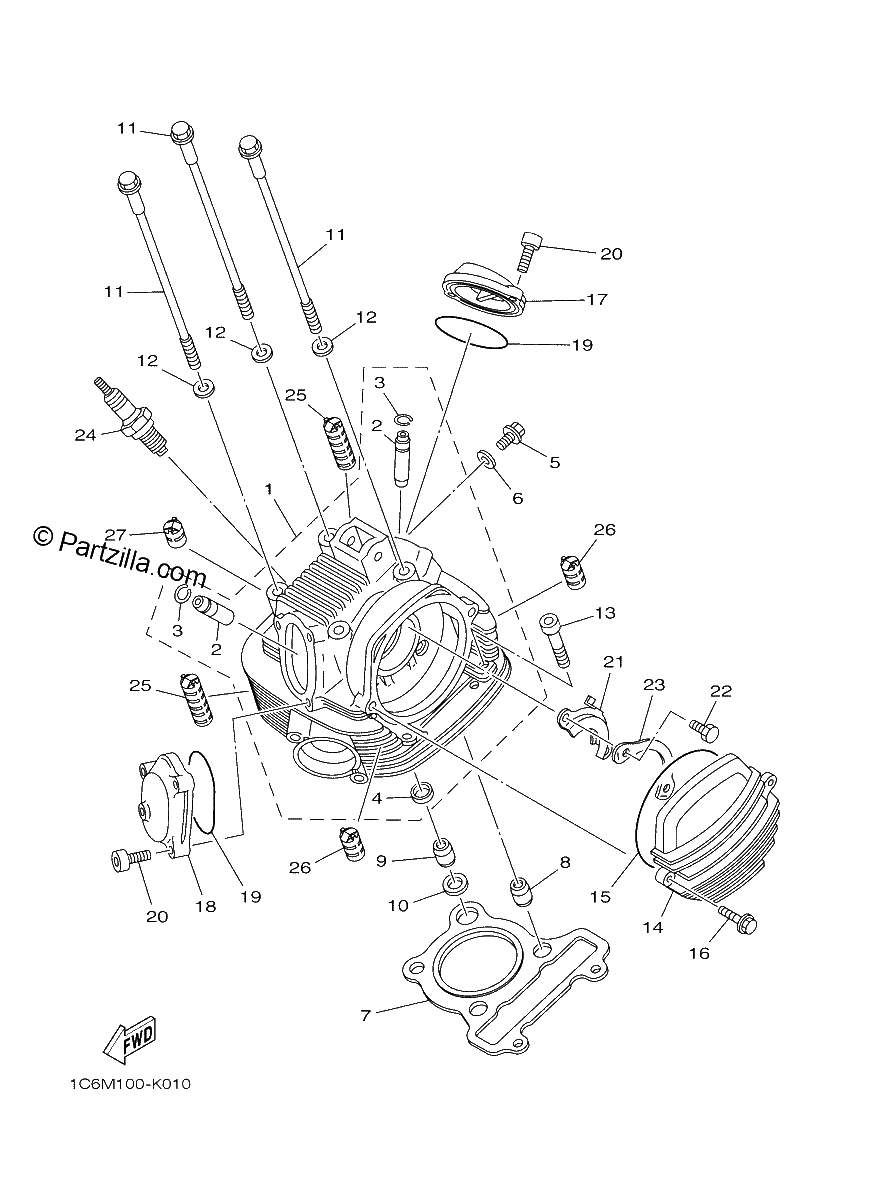

Diagrama de CYLINDER HEAD

Repuestos

#1
1C6-11101-00-00
Cylinder Head Assy
$926.36¢463 180
1
#2
5H0-11133-11-00
GUIDE, VALVE 1
$67.76¢33 879
1
#3
93440-10085-00
CIRCLIP
$6.75¢3 375
1
#4
90385-12039-00
BUSH,SPEC'L RUBBER
$9.63¢4 813
1
#5
90153-06029-00
SCREW, TAPPING
$9.13¢4 566
1
#6
90430-06014-00
GASKET
$7.59¢3 795
1
#7
59V-11181-00-00
GASKET,CYL. HEAD 1
$36.50¢18 251
1
#8
91810-16016-00
PIN, DOWEL
$3.51¢1 754
1
#9
91812-16807-00
Pin, Dowel
$4.77¢2 386
1
#10
90430-12186-00
Gasket
$14.34¢7 170
1
#11
90105-08117-00
BOLT, FLANGE
$8.14¢4 071
1
#12
90201-08609-00
WASHER, PLATE
$3.75¢1 874
1
#13
9131M-08045-00
bolt
$2.30¢1 150
1
#14
4VW-E1185-10-00
COVER, CYLINDER HE
$42.42¢21 212
1
#15
93211-05471-00
O-RING
$12.74¢6 371
1
#16
9502M-06020-00
BOLT, FLANGE
$2.06¢1 029
1
#17
4VW-E1186-10-00
COVER, CYLINDER HE
$29.19¢14 593
1
#18
4VW-E1187-10-00
COVER, CYLINDER HE
$29.19¢14 593
1
#19
93210-57634-00
O-RING
$13.78¢6 889
1
#20
9131M-06018-00
bolt
$0.84¢420
1
#21
5H0-1111F-00-00
PLATE
$25.14¢12 569
1
#22
9700M-06012-00
BOLT
$2.86¢1 432
1
#23
90215-06184-00
WASHER, LOCK
$9.99¢4 997
1
#24
DR8-EA000-00-00
PLUG, SPARK (NGK DR8EA) | UR
$4.43¢2 214
1
#25
15A-11162-00-00
ABSORBER 2
$20.10¢10 051
1
#26
5H0-11162-00-00
ABSORBER 2
$10.19¢5 094
1
#27
15A-11161-01-00
ABSORBER 1
$20.10¢10 051
1
