STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

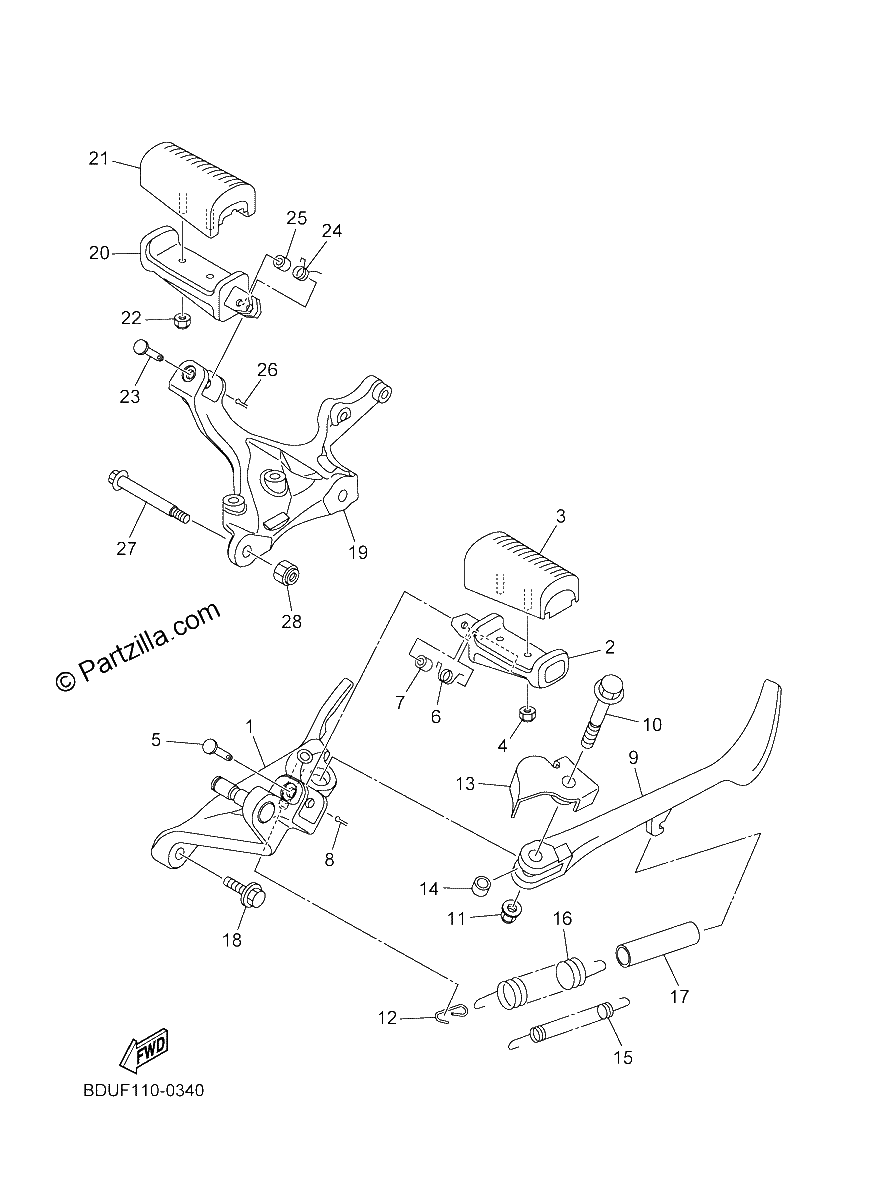

Diagrama de STAND FOOTREST

Repuestos

#1
1TP-27411-00-00
FOOTREST 1
$296.02¢148 013
1
#2
1TP-27451-00-00
FOOTREST
$59.57¢29 787
1
#3
4VR-27413-00-00
COVER, FOOTREST
$42.39¢21 194
1
#4
95607-06100-00
NUT, U
$2.86¢1 431
1
#5
90240-08145-00
PIN, CLEVIS
$3.74¢1 869
1
#6
90508-18054-00
SPRING, TORSION
$6.41¢3 206
1
#7
90387-087K5-00
COLLAR
$8.88¢4 438
1
#8
91401-25015-00
PIN, COTTER
$3.61¢1 806
1
#9
1TP-27311-00-00
STAND, SIDE
$195.91¢97 956
1
#10
90105-10426-00
BOLT, FLANGE
$8.77¢4 387
1
#11
90185-10008-00
NUT, SELF-LOCKING
$6.81¢3 406
1
#12
1TP-27315-00-00
LINK, SIDE STAND
$8.26¢4 131
1
#13
1TP-27322-00-00
WASHER
$24.34¢12 169
1
#14
90387-10020-00
COLLAR
$19.52¢9 763
1
#15
90506-23490-00
SPRING, TENSION
$10.66¢5 331
1
#16
90506-29507-00
SPRING, TENSION
$15.34¢7 669
1
#17
90445-16641-00
HOSE (L60)
$7.28¢3 638
1
#18
90105-10424-00
BOLT, FLANGE
$8.19¢4 094
1
#19
1TP-27421-00-00
FOOTREST 2
$330.38¢165 188
1
#20
1TP-27461-00-00
FOOTREST
$62.41¢31 206
1
#21
4VR-27413-00-00
COVER, FOOTREST
$42.39¢21 194
1
#22
95607-06100-00
NUT, U
$2.86¢1 431
1
#23
90240-08145-00
PIN, CLEVIS
$3.74¢1 869
1
#24
90508-18054-00
SPRING, TORSION
$6.41¢3 206
1
#25
90387-087K5-00
COLLAR
$8.88¢4 438
1
#26
91401-25015-00
PIN, COTTER
$3.61¢1 806
1
#27
90105-10364-00
BOLT, FLANGE
$4.95¢2 475
1
#28
90185-10008-00
NUT, SELF-LOCKING
$6.81¢3 406
1
