REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

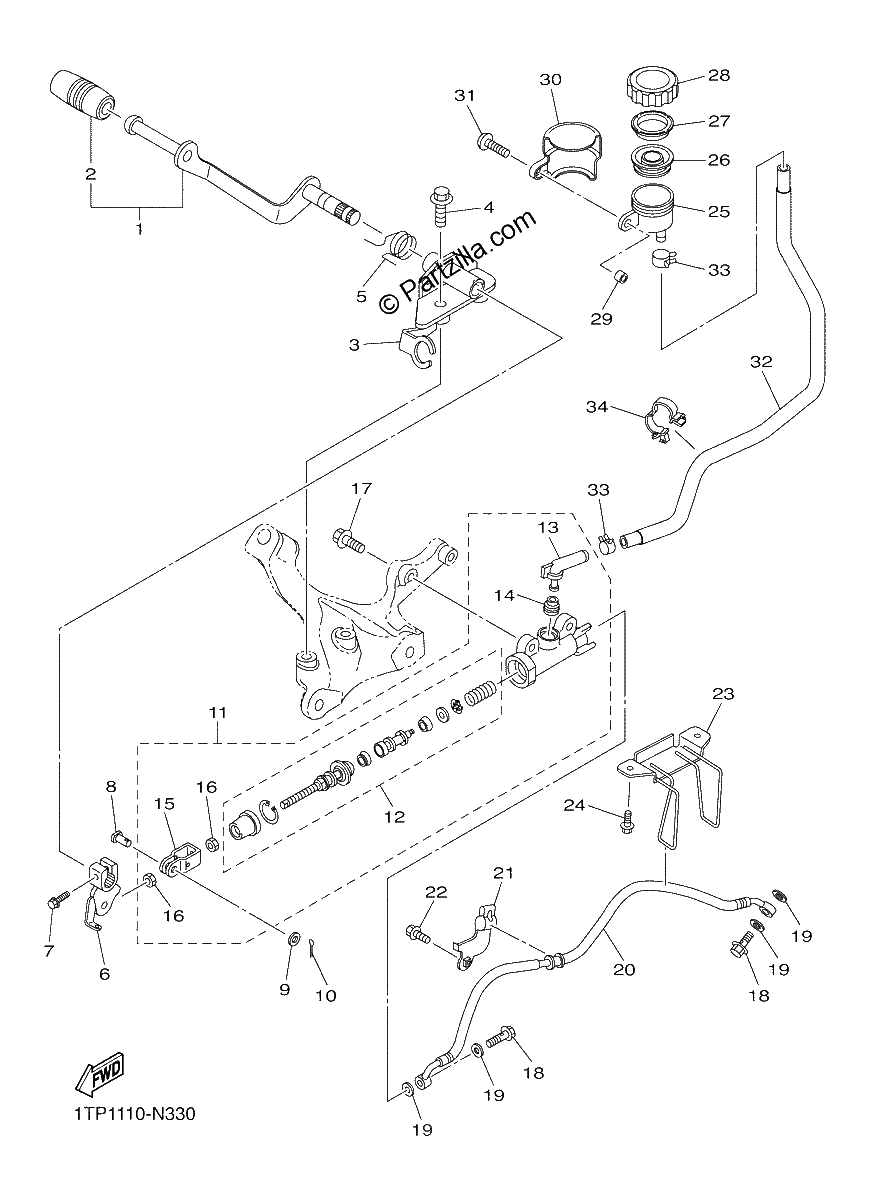

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
1TP-27200-00-00
PEDAL, BRAKE
$85.26¢42 631
1
#2
5VN-18113-00-00
COVER, SHIFT PEDAL
$14.34¢7 170
1
#3
1TP-27243-00-00
BOSS, BRAKE PEDAL
$63.09¢31 544
1
#4
95027-08035-00
BOLT, SMALL FLANGE (replaces 9502M-08035-00)
$6.75¢3 375
1
#5
1TP-27216-00-00
SPRING, RETURN
$7.95¢3 973
1
#6
1TP-27262-00-00
LEVER
$53.11¢26 553
1
#7
97002-06020-00
BOLT
$2.78¢1 392
1
#8
90240-08124-00
PIN, CLEVIS
$6.22¢3 111
1
#9
90201-08083-00
WASHER, PLATE
$6.88¢3 439
1
#10
91401-20012-00
PIN, COTTER
$2.02¢1 012
1
#11
1TP-2583V-00-00
REAR MASTER CYLINDER ASSY.
$166.07¢83 036
1
#12
1TP-25808-00-00
CYLINDER KIT, MASTER
$55.67¢27 836
1
#13
4BP-2582A-00-00
JOINT
$17.69¢8 844
1
#14
4BP-2585F-01-00
O-RING
$10.48¢5 238
1
#15
4BP-27222-02-00
JOINT
$29.55¢14 777
1
#16
90170-08010-00
NUT
$6.89¢3 444
1
#17
95027-08030-00
BOLT, FLANGE
$3.29¢1 644
1
#18
90401-10020-00
BOLT, UNION
$9.07¢4 537
1
#19
90430-10005-00
GASKET
$7.72¢3 858
1
#20
1TP-2581J-01-00
HOSE, BRAKE 4
$72.68¢36 340
1
#21
1TP-2588F-00-00
HOLDER, BRAKE HOSE 5
$11.15¢5 577
1
#22
95022-06016-00
BOLT, FLANGE
$3.65¢1 823
1
#23
1TP-2587A-00-00
HOLDER, BRAKE HOSE
$28.72¢14 358
1
#24
95022-06016-00
BOLT, FLANGE
$3.65¢1 823
1
#25
31A-25894-10-00
TANK, RESERVOIR
$45.23¢22 615
1
#26
360-25854-01-00
DIAPHRAGM, RESERVOIR
$22.87¢11 437
1
#27
2GU-25855-00-00
BUSH, DIAPHRAGM
$27.95¢13 973
1
#28
2KF-25852-50-00
CAP, RESERVOIR
$46.98¢23 489
1
#29
90387-06072-00
COLLAR
$6.90¢3 450
1
#30
4NK-25888-00-00
COVER, RESERVOIR TANK
$85.43¢42 717
1
#31
90111-06028-00
BOLT, BUTTON HEAD
$7.58¢3 789
1
#32
1TP-25895-00-00
HOSE, RESERVOIR
$44.03¢22 017
1
#33
90467-14057-00
CLIP
$8.26¢4 129
1
#34
90464-23239-00
CLAMP
$1.94¢972
1
