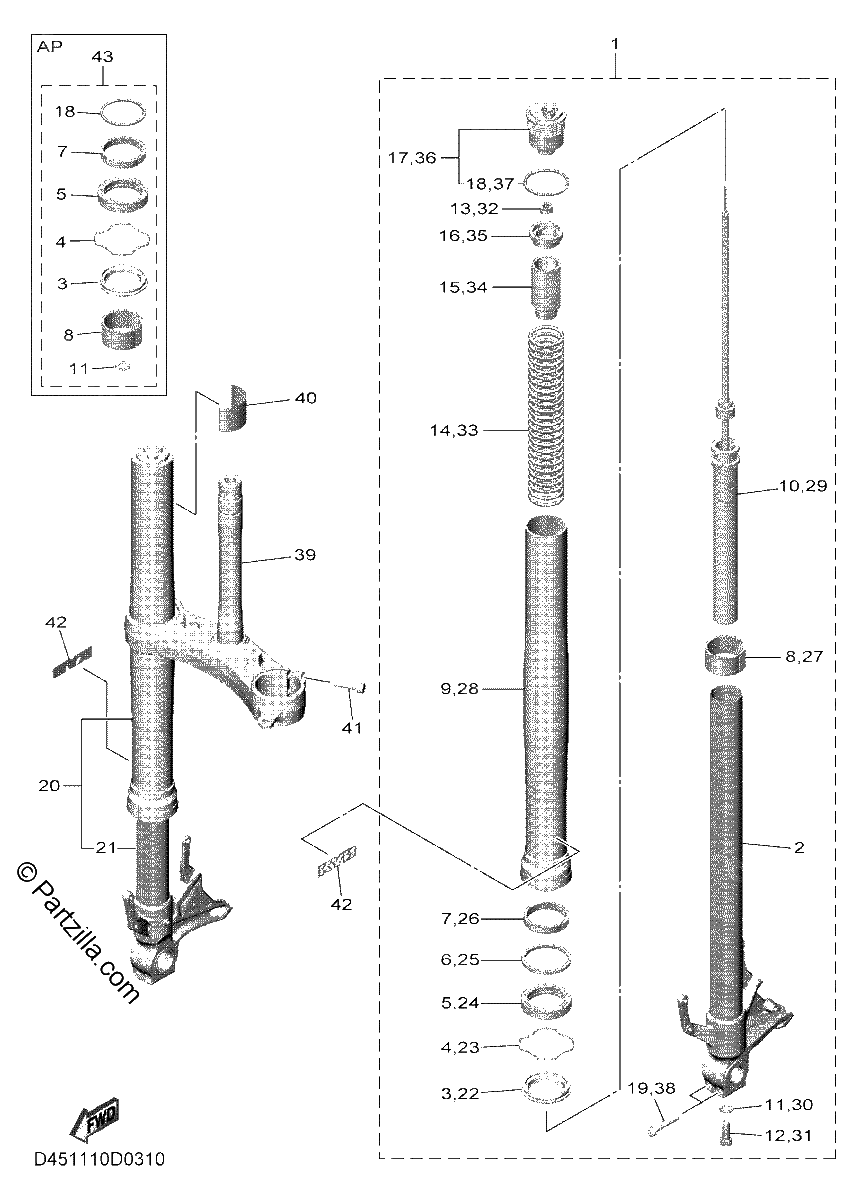

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$1433.74¢716 869
#2
INNER TUBE COMP1
$376.27¢188 138
#3
SEAL, DUST
$24.02¢12 013
#4
RING, SNAP | (KYB)
$10.31¢5 156
#5
OIL SEAL
$24.99¢12 494
#6
WASHER, OIL SEAL | (KYB)
$7.08¢3 538
#7
METAL, SLIDE 1
$11.39¢5 694
#8
PISTON, FRONT FORK
$29.20¢14 600
#9
TUBE, OUTER (LH)
$406.85¢203 425
#10
CYLINDER COMP, FRONT FORK
No Disponible
#11
GASKET | (KYB)
$17.09¢8 544
#12
BOLT, HEXAGON SOCKET HEAD
$9.10¢4 550
#13
NUT
$7.91¢3 956
#14
SPRING, FRONT FORK
$34.13¢17 063
#15
SPACER
$64.85¢32 425
#16
GUIDE, SPRING
$13.13¢6 563
#17
BOLT, CAP
$339.51¢169 756
#18
O-RING
$8.21¢4 106
#19
BOLT (3JP)
$6.25¢3 125
#20
FRONT FORK ASSY (R.H)
$1433.74¢716 869
#21
INNER TUBE COMP2
$376.27¢188 138
#22
SEAL, DUST
$24.02¢12 013
#23
RING, SNAP | (KYB)
$10.31¢5 156
#24
OIL SEAL
$24.99¢12 494
#25
WASHER, OIL SEAL | (KYB)
$7.08¢3 538
#26
METAL, SLIDE 1
$11.39¢5 694
#27
PISTON, FRONT FORK
$29.20¢14 600
#28
TUBE, OUTER (LH)
$406.85¢203 425
#29
CYLINDER COMP, FRONT FORK
No Disponible
#30
GASKET | (KYB)
$17.09¢8 544
#31
BOLT, HEXAGON SOCKET HEAD
$9.10¢4 550
#32
NUT
$7.91¢3 956
#33
SPRING, FRONT FORK
$34.13¢17 063
#34
SPACER
$64.85¢32 425
#35
GUIDE, SPRING
$13.13¢6 563
#36
BOLT, CAP
$339.51¢169 756
#37
O-RING
$8.21¢4 106
#38
BOLT (3JP)
$6.25¢3 125
#39
UNDER BRACKET COMP.
$690.02¢345 013
#40
PROTECTOR
$14.59¢7 294
#41
BOLT, HEXAGON SOCKET HEAD
$2.73¢1 363
#42
EMBLEM
$21.55¢10 775
#43
FORK SEALS KIT
$86.42¢43 213
