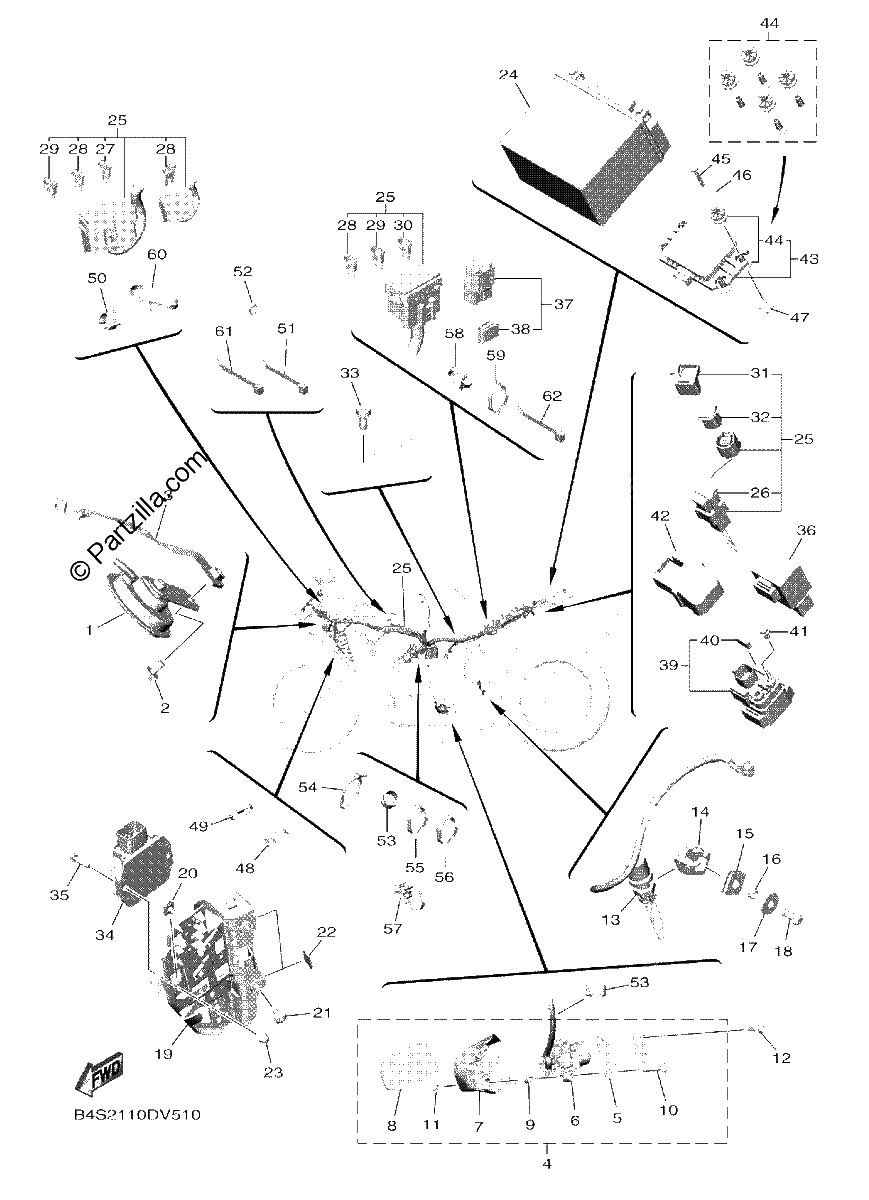

Diagrama de ELECTRICAL 2

Repuestos

#1
B67-83371-00-00
HORN
$79.01¢39 506
1
#2
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
1
#3
2CR-23377-00-00
BRACKET, HORN
$13.96¢6 981
1
#4
B3L-27406-01-00
COVER ASSY
$127.40¢63 700
1
#5
B3L-27961-00-00
BRACKET, SENSOR 1
$12.36¢6 181
1
#6
B3L-82566-01-00
SWITCH, SIDE STAND
$72.64¢36 319
1
#7
B3L-27453-00-00
COVER 1
$12.16¢6 081
1
#8
B3L-27498-00-00
SEAT 1
$3.83¢1 913
1
#9
90387-05025-00
COLLAR
$6.15¢3 075
1
#10
92012-05030-00
BOLT, BUTTON HEAD
$6.19¢3 094
1
#11
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$8.16¢4 081
1
#12
90110-05038-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#13
2CR-82530-02-00
STOP SWITCH ASSY
$48.01¢24 006
1
#14
2CR-2144G-00-00
STAY, STOP SWITCH
$5.96¢2 981
1
#15
90480-12607-00
GROMMET
$10.18¢5 088
1
#16
90387-06023-00
COLLAR
$9.13¢4 563
1
#17
90201-06380-00
WASHER PLAIN
$0.69¢344
1
#18
92017-06016-00
BLT,BTTN HD (replaces 90111-06007-00)
$7.34¢3 669
1
#19
B3L-2836H-00-00
BRACKET 5
$29.85¢14 925
1
#20
90183-06069-00
NUT, SPRING
$7.26¢3 631
1
#21
90111-06095-00
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
1
#22
13S-21649-00-00
DAMPER
$7.86¢3 931
1
#23
663-45119-01-00
CAP, GREASE NIPPLE
$2.23¢1 113
1
#24
5TJ-82100-01-00
BATTERY YTZ7S(F) - FA
$246.70¢123 350
1
#25
B4S-82590-12-00
WIRE HARNESS ASSY
$1434.99¢717 494
1
#26
5JW-82151-10-00
FUSE (50A)
$17.01¢8 506
1
#27
5JJ-82151-80-00
FUSE (2A-BL)
$8.43¢4 213
1
#28
5JJ-82151-00-00
FUSE (7.5A-BL)
$7.08¢3 538
1
#29
67F-82151-50-00
FUSE (15A)
$4.44¢2 219
1
#30
67F-82151-40-00
FUSE (10A)
$7.75¢3 875
1
#31
B3L-82155-00-00
BAND
$4.75¢2 375
1
#32
B3L-8215B-00-00
CAP
$5.06¢2 531
1
#33
91317-06012-00
BOLT
$7.34¢3 669
1
#34
2CR-81960-01-00
RECTIFIER & REGULATOR ASSY
$178.46¢89 231
1
#35
90105-06148-00
Bolt, Flange
$7.41¢3 706
1
#36
5VK-81950-33-00
RELAY ASSY (G8R-30Y-W3)
$63.94¢31 969
1
#37
1TP-81950-00-00
RELAY ASSY (1TP-00)
$15.59¢7 794
1
#38
5EA-81952-00-00
HOLDER, RELAY
$8.03¢4 013
1
#39
2CR-81940-00-00
STARTER RELAY ASSY
$63.35¢31 675
1
#40
1AE-82151-00-00
FUSE (30A-BL)
$7.41¢3 706
1
#41
95022-06008-00
BOLT, FLANGE
$7.46¢3 731
1
#42
5SL-82119-10-00
COVER, LEAD WIRE
$4.84¢2 419
1
#43
B3L-8593A-02-00
INERTIAL MEASURE, UNIT ASSY
$929.99¢464 994
1
#44
2CR-W8A8D-01-00
.. GROMMET AND COLLAR SET
$67.76¢33 881
1
#45
91312-04025-00
BOLT
$1.84¢919
1
#46
2CR-81162-00-00
WASHER, PLAIN
$1.55¢775
1
#47
90183-04039-00
NUT, SPRING
$7.03¢3 513
1
#48
1UA-82591-00-00
BAND
$4.91¢2 456
1
#49
1UA-82591-00-00
BAND
$4.91¢2 456
1
#50
90464-16003-00
CLAMP
$7.46¢3 731
1
#51
1UA-82591-00-00
BAND
$4.91¢2 456
1
#52
90465-10098-00
CLAMP
$2.78¢1 388
1
#53
90464-13227-00
Clamp
$7.88¢3 938
1
#54
90464-16061-00
BAND
$8.35¢4 175
1
#55
90464-13077-00
CLAMP
$7.94¢3 969
1
#56
90464-13077-00
CLAMP
$7.94¢3 969
1
#57
90464-45006-00
CLAMP
$7.69¢3 844
1
#58
90464-13077-00
CLAMP
$7.94¢3 969
1
#59
90464-13077-00
CLAMP
$7.94¢3 969
1
#60
3MA-82591-00-00
BAND
$7.55¢3 775
1
#61
1UA-82591-00-00
BAND
$4.91¢2 456
1
#62
1UA-82591-00-00
BAND
$4.91¢2 456
1
