ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

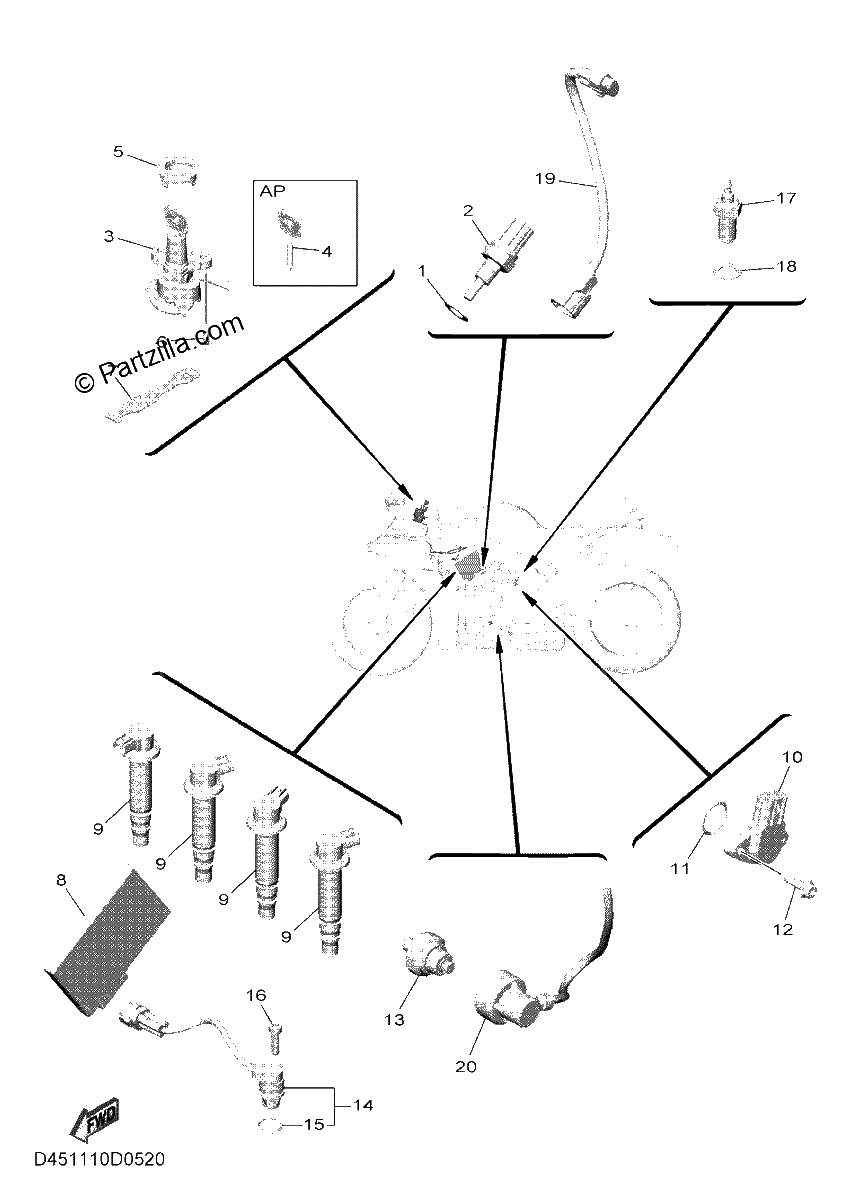

Diagrama de ELECTRICAL 1

Repuestos

#1
90430-10004-00
GASKET
$7.08¢3 538
1
#2
4P9-83591-00-00
THERMO UNIT
$34.40¢17 200
1
#3
B3L-82501-11-00
MAIN SWITCH STEERING LOCK
$199.31¢99 656
1
#4
4BH-82511-09-00
BLANK KEY | AP
$29.11¢14 556
1
#5
36P-82552-00-00
CAP, SWITCH
$14.98¢7 488
1
#6
90109-08195-00
bolt
$7.35¢3 675
1
#7
B3L-2376R-00-00
Protector
$3.01¢1 506
1
#8
B3L-8591A-11-00
ENGINE CONTROL UNIT ASSY (replaces B3L-8591A-10-00)
$1682.49¢841 244
1
#9
2CR-82310-00-00
IGNITION COIL ASSY
$141.85¢70 925
1
#10
2CR-85899-10-00
SENSOR, GEAR POSITION
$130.10¢65 050
1
#11
93210-17008-00
O-RING
$2.16¢1 081
1
#12
90110-05067-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#13
1WS-82504-00-00
OIL PRESSURE SWITC
$72.81¢36 406
1
#14
B3L-85896-01-00
SENSOR, CAM POSITION
$184.90¢92 450
1
#15
4D9-81168-00-00
O-RING
$5.15¢2 575
1
#16
90110-06175-00
BOLT, HEXAGON SOCKET HEAD
$2.44¢1 219
1
#17
3GB-82540-01-00
NEUTRAL SWITCH ASSY
$62.85¢31 425
1
#18
90430-10148-00
Gasket
$5.66¢2 831
1
#19
1RC-82309-01-00
WIRE, SUB LEAD
$24.31¢12 156
1
#20
B3L-82509-11-00
WIRE, SUB LEAD
$15.26¢7 631
1
